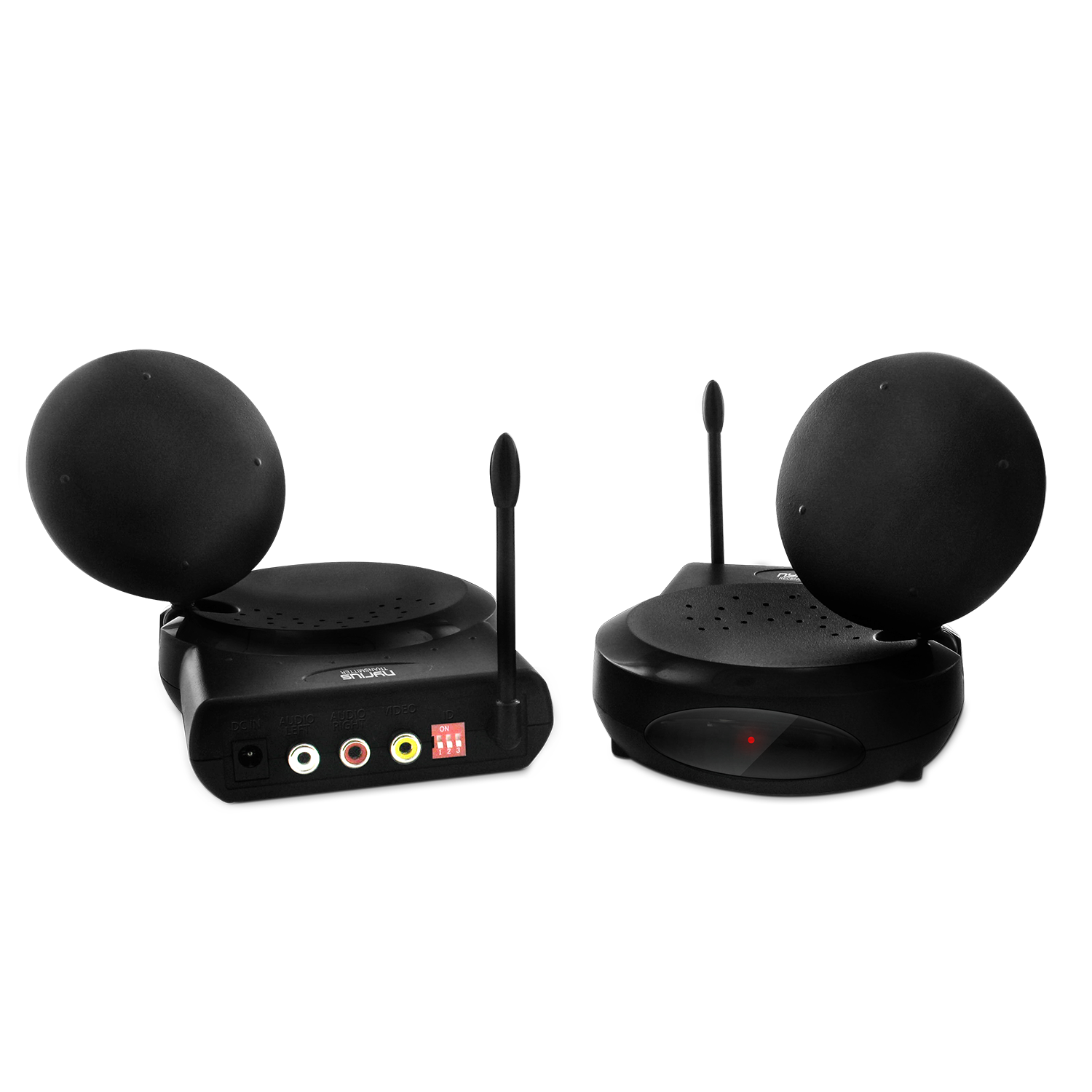

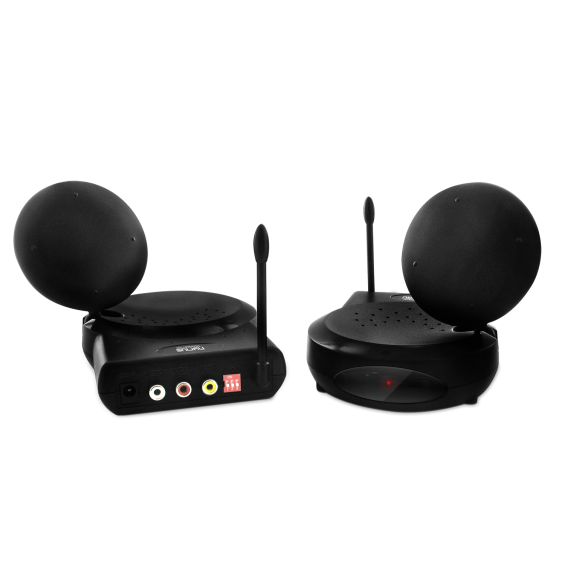

NY-GS3200 5.8GHz 6 Channel Wireless Audio/Video Sender Transmitter & Receiver System
with IR Remote Extender (NY-GS3200)
Wirelessly Send Audio and Video to your TV
Now you can easily stream high quality audio and video from one room to another, all without installing wires. Whether it's your cable/satellite, DVD player, game console, or any other audio/video device with standard RCA composite connections, this wireless transmitter and receiver uses radio frequency technology that will allow you to watch it on another TV wirelessly.
Powerful Long Range 5.8GHz Signal
This system can broadcast real time audio/video up to 400ft (open space). It also transmits through walls, floors and ceilings with ease. Whether your other TV is in the basement or on the other end of your house, this video sender will broadcast crystal clear sound and full motion video. The powerful 5.8GHz signal will not interfere with Bluetooth or most Wi-Fi networks, which are typically 2.4GHz. The directional antennas ensure an optimal signal and minimize interference from other devices.
Control Your Audio/Video Device from another Room
Not only can you watch your audio/video source remotely, you can also control it. The built in IR (infrared) remote extender will send your device's remote control signals over the air. Change channels, pause your movie – any function available on your remote will work using the remote extender. Simply point the IR extender at the device you want to control and your devices can be controlled from a remote location up to 100ft.
6 Channel Frequencies with Automatic Syncing
This system has 6 channel frequencies to choose from. Pressing the channel button on the receiver will automatically ensure that the transmitter is on the same frequency. If you have other 5.8GHz wireless devices, this system's ability to switch channels will help avoid interference with your other devices. This system uses phase-lock-loop technology for optimal reception and no tuning of channels required.
Easy to Set Up and Use
This wireless sender is incredibly easy to use and installs within minutes. Simply plug in the included RCA cables to your TV and audio/video device, and you're ready to go.
Specifications
| Transmission Frequency | 5.8GHz |
|---|---|
| Remote Control IR Frequency | 30 KHz to 60 KHz |
| System Latency | none |
| Range | Up to 400 feet open space (obstacles/interference decrease transmit distance) |
| Transmitter Connections | RCA Audio/Video Composite Jacks, External IR Extender Jack (Transmitter Only) |
| Receiver Connections | RCA Audio/Video Composite Output |
| Ports & Interfaces | RCA Audio/Video Composite Jacks, External IR Extender Jack (Transmitter Only) |
| Remote Type | Infrared (RF remotes not supported) |
| Remote Control | Signal Range Up to 100 feet |
| Built-in Directional Antenna | Yes |
| Selectable Channels | Channels 6 |
| Operating Temperature | 0 C ~ 40 C (32 F ~ 104F) Power AC 100-240V (switching adapter) |
| Output Impedance | 2K ohm Video; 10K ohm, typ. Audio |
| Output Signal Level | 1Vp-p ± 0.2V @ 600 Ω / 3Vp-p ± 0.3V @ 10K Ω, Max. |
| Dimensions | 6.0 L x 4.20 W x 1.75 D inches |
| Certifications | ICES, FCC Certified, CUL/UL |
| UPC | 871363001917 |
| What's Included | 5.8GHz Wireless Transmitter, External IR Extender, 5.8GHz Wireless Receiver with Built-in IR Extender, 2 AC Power Adapters, 2 RCA Audio/Video Composite Connection Cables, Instruction Manual, 1 Year Warranty, Lifetime Live Customer Support |
What's Included
5.8GHz Wireless TransmitterExternal IR Extender5.8GHz Wireless Receiver with Built-in IR Extender2 AC Power Adapters2 RCA Audio/Video Composite Connection CablesInstruction Manual1 Year WarrantyLifetime Live Customer SupportVideos
Guides
Take a comprehensive look at the set up, function, and maintenance of your product. The product manual details all of its specifications and how to care for your product.
