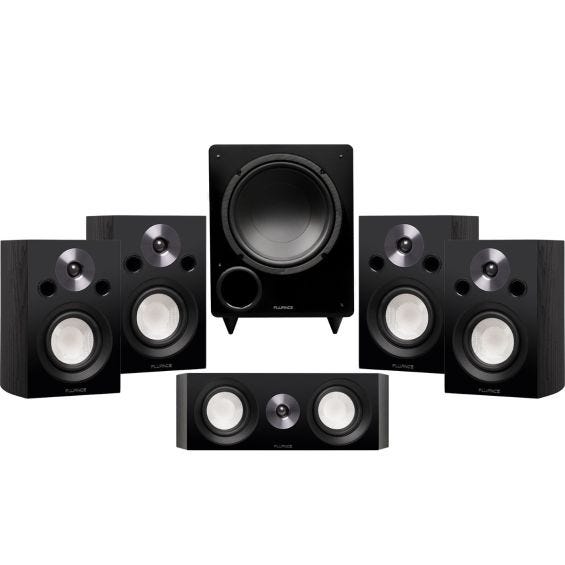

Reference Compact Surround Sound Home Theater 5.1 Channel Speaker System with DB10 Subwoofer
Black Ash (X851BC)
Color: Black Ash
No. Audio Channels:



HIGH PERFORMANCE 5.1 SPEAKER SYSTEM
Engineered with premium components to pack a powerful punch of room-filling music delivering a truly immersive home audio experience featuring front bookshelf speakers, a center channel, rear surround speakers and DB10 Subwoofer

EXQUISITE BOOKSHELF SURROUNDS
As impactful as tower speakers, with outstanding clarity and immersive sound reproduction, these bookshelf speakers are perfect as fronts or surround speakers

POWERFUL 10" SUBWOOFER
Low distortion amplifier provides continuous 240 watts of clean, dynamic power (400w peak) to deliver heart pounding bass at the most intense music and movie climaxes

SUPERIOR CABINET ENGINEERING
Meticulously designed wood enclosure to avoid unwanted resonance with front firing bass ports for improved bass response

COMPACT HOME THEATER SYSTEM
Full range sound from the powerful midrange drivers and the premium Neodymium tweeters, delivering captivating surround sound throughout your entire room
Specifications
Reference High Performance 2-Way Bookshelf and Surround Speakers
Series | REFERENCE |
---|---|
Speaker Type | Bookshelf |
Speaker Configuration | 2 Way - 2 Driver Passive Surround Speakers (Wall Mountable) |
Enclosure | Vented Bass-reflex Design |
Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
Woofer | 5.25 Inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
Power Handling | 40 - 80 Watts RMS |
Frequency Response | 50 Hz - 20 kHz |
Sensitivity | 85 dB @ 1 W / 1 m |
Crossover Frequency | 3100 Hz Phase Coherent - PCB Mounted Circuitry |
Impedance | 8 Ohm Compatible |
Dolby Atmos | Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound |
Dimensions | 11.4 x 8.1 x 9.0 inches / 29 x 20.6 x 22.9 cm (HxWxD) |
Weight | 11.35 lb (5.15 kg) /speaker |
Frequency Response Graph | Click to Expand |
Fluance Speaker Size Comparison Chart | |
Certifications | CE Certified |
UPC | 061783269732 |
What's Included |
|
DB10 10-inch Low Frequency Ported Front Firing Powered Subwoofer
Speaker Configuration | Front Firing Powered Subwoofer with Integrated Amplifier |
---|---|
Cabinet Material | Precision Crafted MDF Internally Braced and Dampened |
Enclosure | Front Firing Tuned Bass Reflex Vented Port |
Low-Frequency Driver | 10 Inch Polypropylene with Rubber Surround |
Amplifier Power | Peak 120W / RMS 45W |
Audio Inputs | LFE/Low Level Input & High Level Input/Speaker Levels |
Low-Pass Crossover | 40 Hz – 180 Hz |
Frequency Response | 38 Hz – 180 Hz (±3 dB) Full Range Anechoic Measurement 35 Hz – 180 Hz (±6 dB) Full Range Anechoic Measurement |
Phase Adjustment | Yes |
Auto Function | Yes – (100 Hz signal input reach 3 mV, 1 kHz input 5 mV) |
Gain Control | No |
Power Input | 120 V (60 Hz) |
Dimensions | 16 x 11.9 x 15.7 inches / 40.6 x 30.2 x 39.9 cm (HxWxD) |
Weight | 24.7 lb (11.2 kg) |
Fluance Speaker Size Comparison Chart | |
UPC | 061783265161 |
What's Included |
Reference High Performance 2-Way Center Channel Speaker
Series | REFERENCE |
---|---|
Speaker Configuration | 2 Way - 3 Driver Center Channel |
Enclosure | Acoustic Suspension Design |
Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
Woofer | Dual 5.25 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
Power Handling | 50 - 100 Watts RMS |
Frequency Response | 110 Hz - 20 kHz |
Sensitivity | 86 dB @ 1 W / 1 m |
Crossover Frequency | 3000 Hz Phase Coherent - PCB Mounted Circuitry |
Impedance | 8 Ohm Compatible |
Dolby Atmos | Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound |
Dimensions | 6.9 X 9.0 X 18.5 inches / 17.53 x 22.86 x 46.99 cm (HxWxD) |
Weight | 15 lb (6.8 kg) |
Frequency Response Graph | Click to Expand |
Fluance Speaker Size Comparison Chart | |
Certifications | CE Certified |
UPC | 061783269718 |
What's Included |
|
