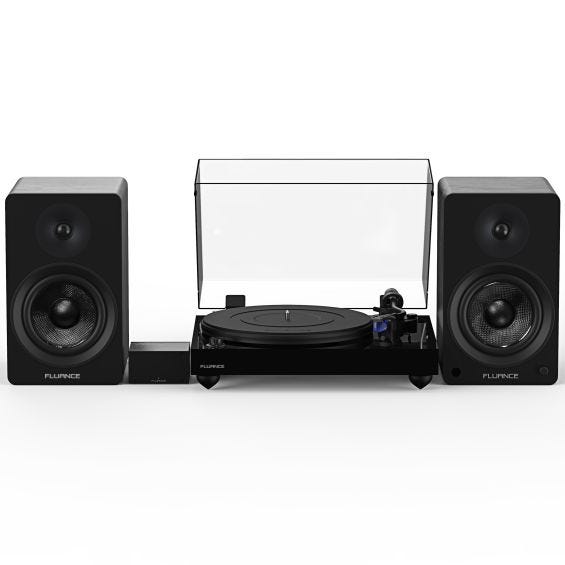

Reference RT84 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai60 6.5” Powered Bookshelf Speakers

Reference RT84 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai60 6.5” Powered Bookshelf Speakers

Reference RT84 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai60 6.5” Powered Bookshelf Speakers
Reference RT84 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai60 6.5” Powered Bookshelf Speakers

Ortofon 2M Blue Cartridge - 100W Class D Amplifier and aptX Bluetooth

$812.99 USD

Free Shipping

color:

Piano Black swatch
Out of Stock

Reference RT84 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai60 6.5” Powered Bookshelf Speakers

EXCEPTIONAL SOUND PERFORMANCE

EXCEPTIONAL SOUND PERFORMANCE

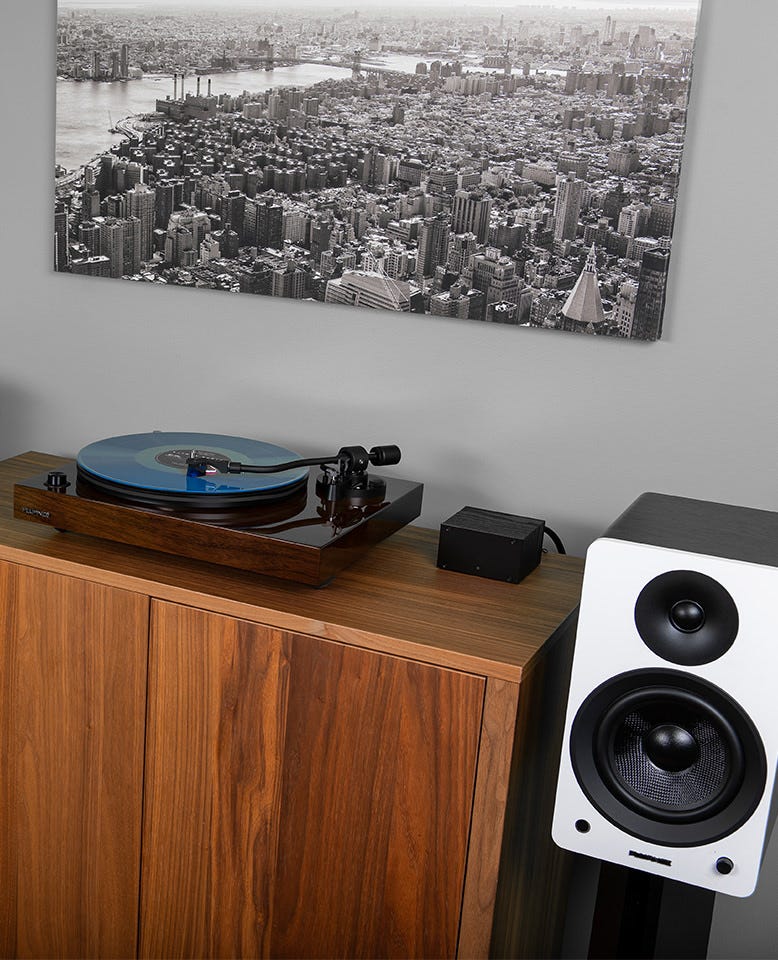

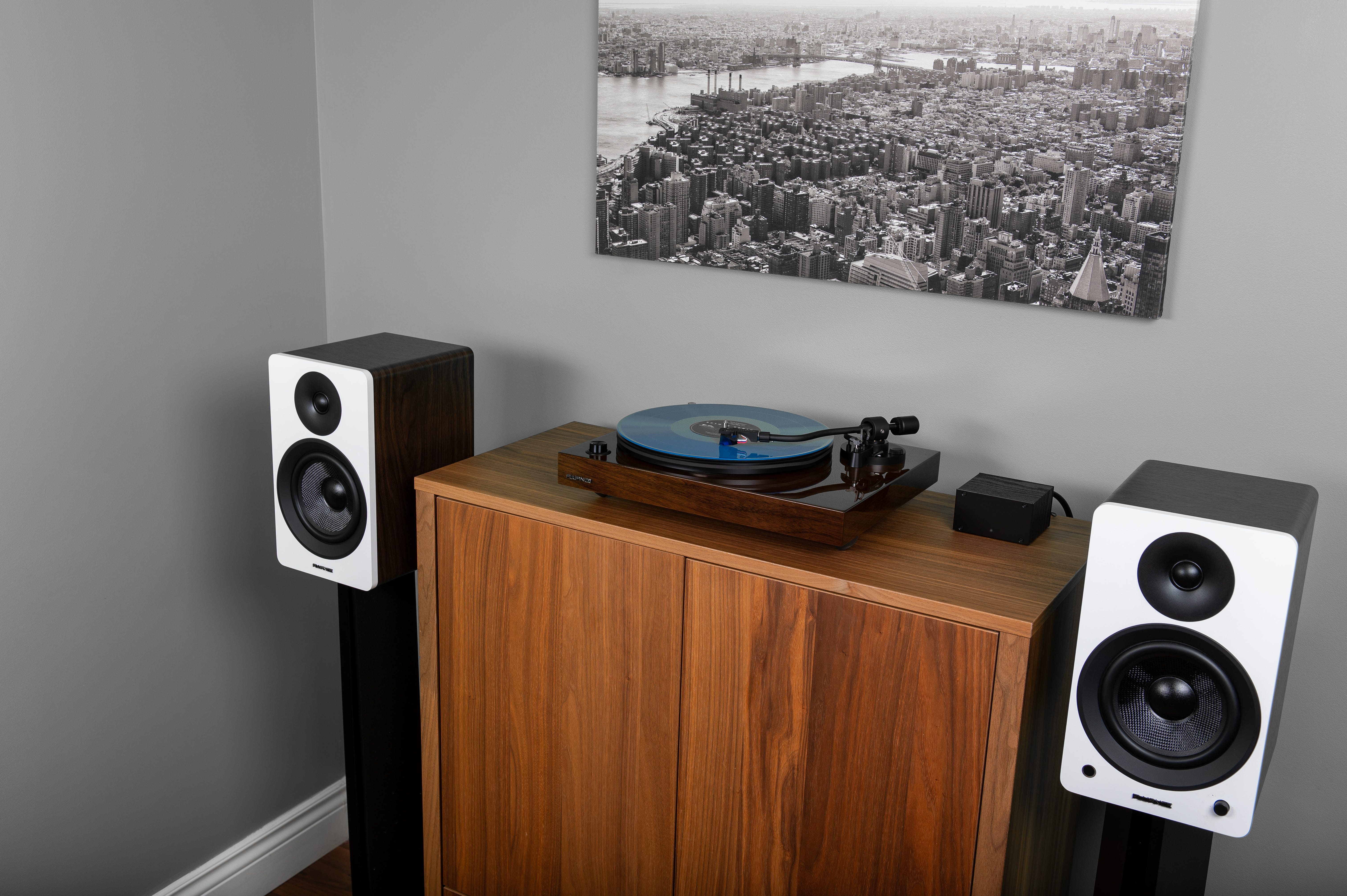

Savor the ultimate listening experience by pairing a fully loaded high fidelity turntable with endlessly versatile, room-filling 100-watt powered bookshelf speakers

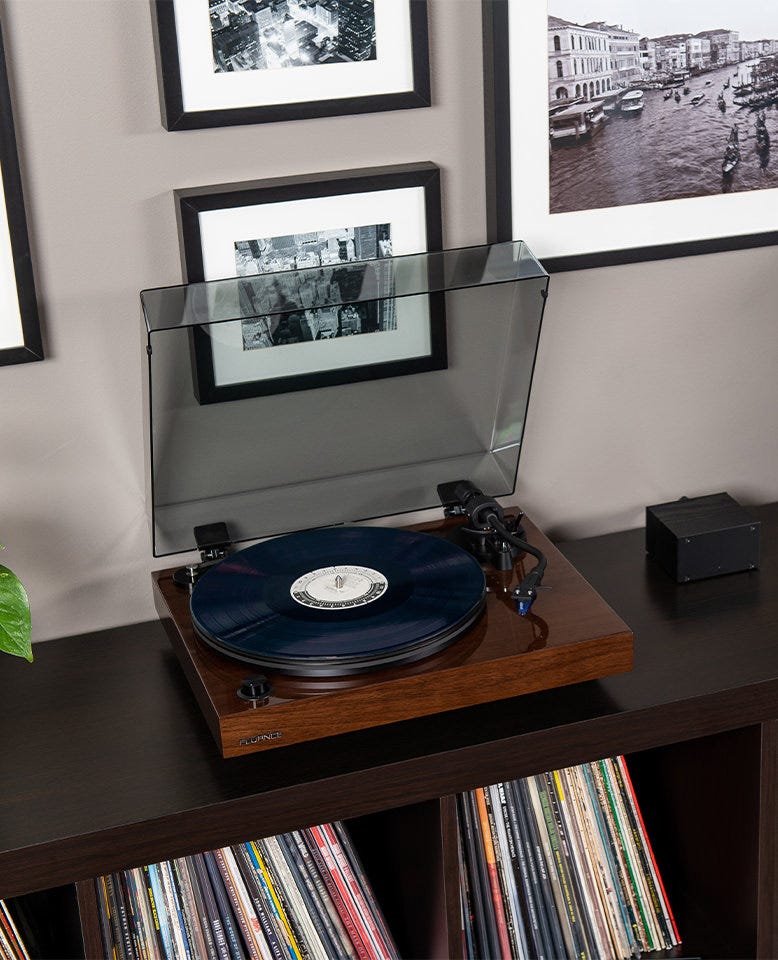

PREMIUM TURNTABLE COMPONENTS

PREMIUM TURNTABLE COMPONENTS

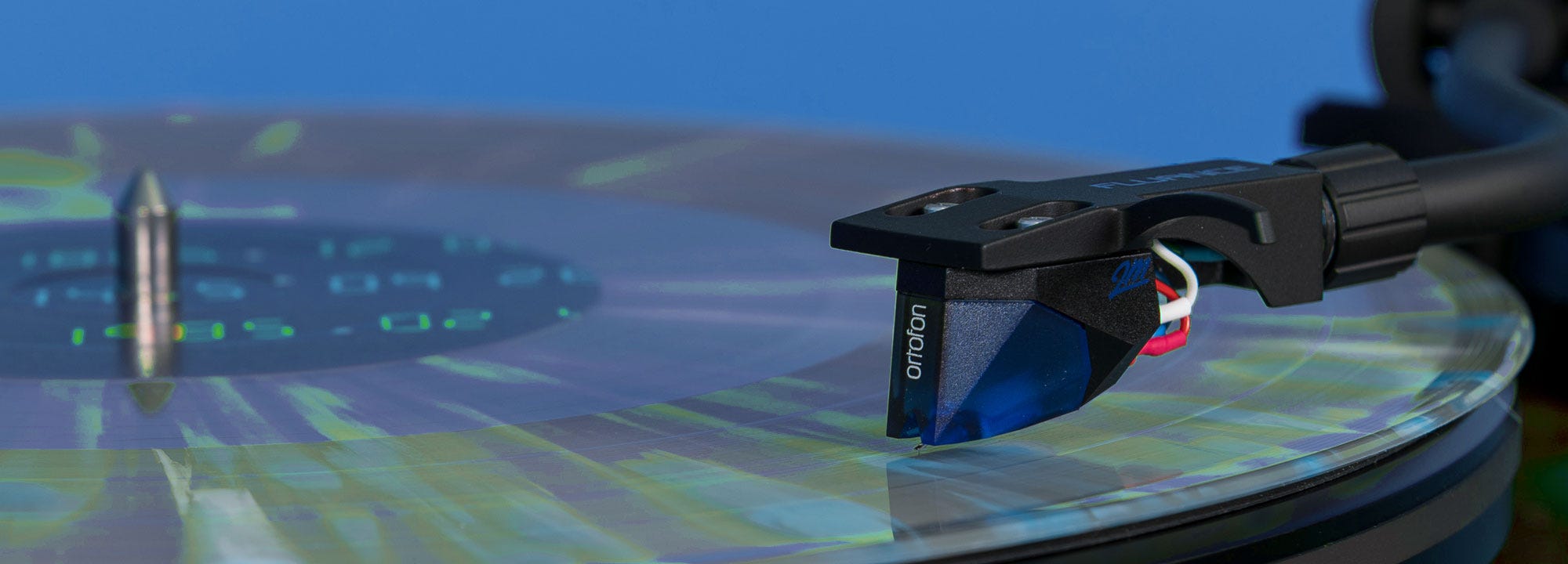

Packed with high performance components including an Ortofon 2M Blue Cartridge, servo motor, solid wood plinth, 3-point vibration isolation feet, S-type precision tonearm to provide a pure analog sound

POWERFUL SPEAKERS

VERSATILE AND POWERFUL SPEAKERS

With an integrated 100W Class D amplifier, 1 inch silk dome tweeters and 6.5 inch high performance woven drivers, these active speakers deliver stunning acoustic accuracy

UNCOMPROMISED PHONO AMPLIFICATION

UNCOMPROMISED PHONO AMPLIFICATION & EQUALIZATION

Precisely converts the turntable phono signal to line level, featuring an ultra high-accuracy frequency response to faithfully reproduce the original recording to the RIAA standard

SIMPLE AUDIO SETUP

SIMPLE AUDIO SETUP

Easily switch between your vinyl records and streaming your favorite music apps through Bluetooth aptX with this simple plug and play setup – no separate amp required

Overview

Specifications

RT84 Reference High Fidelity Vinyl Turntable

RT84 Reference High Fidelity Vinyl Turntable
Cabinet Specifications
Cabinet Material MDF
Finish High Gloss Piano Black
Dust Cover Yes - Tinted
Turntable Specifications
Drive System Belt Drive
Motor DC Motor with Servo Controller Analyzes motor speed 500 times/sec
Motor Isolation Under-mounted 7-point silicone isolation with decoupling isolation ring
Speed 33 1/3 RPM, 45 RPM
Speed Variation 0.13%
Wow and Flutter 0.07%
Signal-to-Noise Ratio (Weighted) 76 dB
Signal-to-Noise Ratio (Unweighted) 65 dB
Platter Aluminum
Diameter of Platter 12 inches (30 cm)
Weight of Platter 1.22 lbs (553 g)
Height of Platter 0.62 inches (16 mm)
Auto-Stop Yes
Turntable Mat Not Required
Tonearm Specifications
Tonearm Type Static Balanced, S-Type
Supported Cartridge Weight 0.18 – 0.25 oz (5.0 – 7.5 g)
Counterweight Yes – 3.60 oz (102 g) - Adjustable
Anti-skating Adjustment Yes – Adjustable
Pivot Bearing Yes
Cueing Lever Yes
Tonearm Material Aluminum
Tonearm Wire 36 AWG Litz Cable / 7 Strand
Effective Tonearm Mass 0.97 oz (27.5 g)
Overhang 0.76 inches (19.2 mm)
Effective Tonearm Length 8.82 inches (224 mm)
Headshell Mount H-4 Bayonet Mount

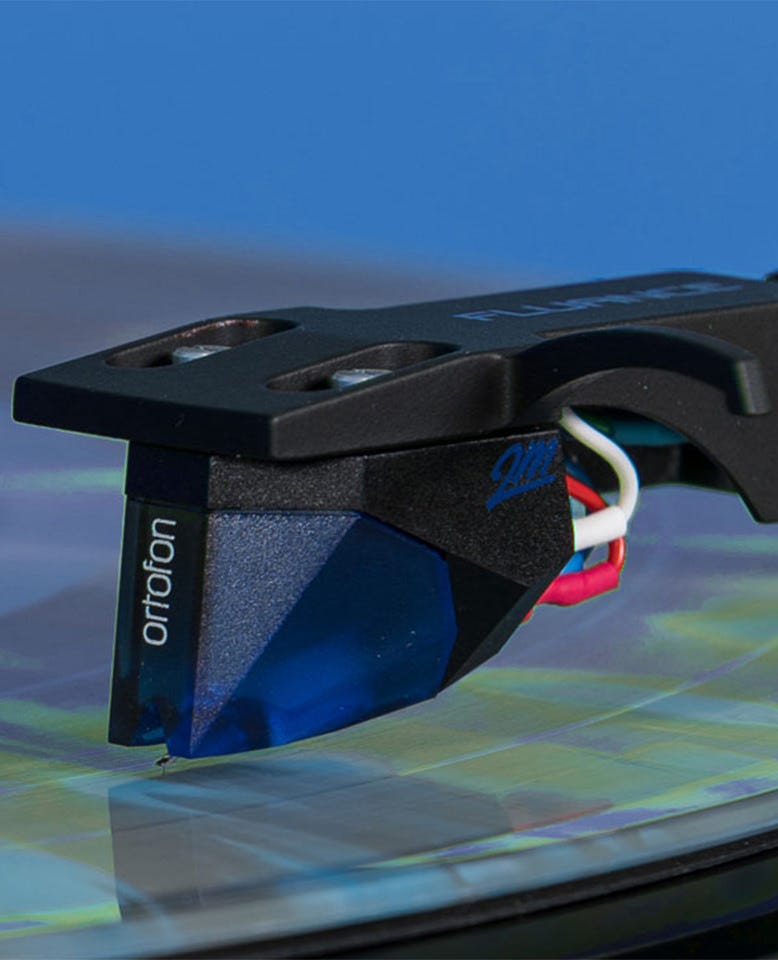

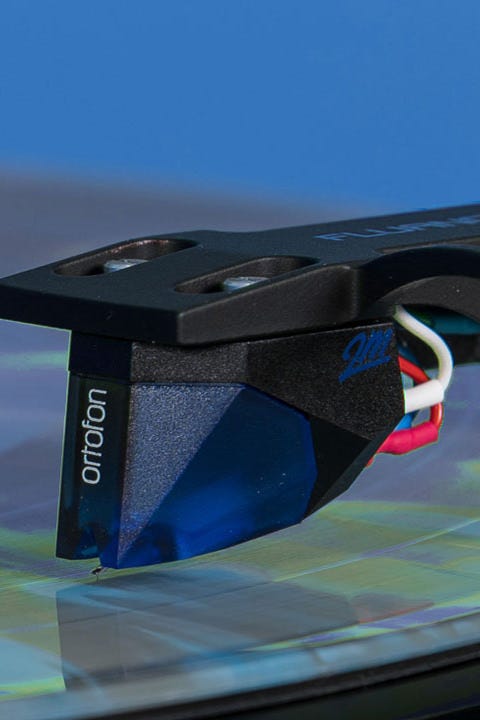

Cartridge Specifications
Cartridge Type Moving Magnet (MM)
Cartridge Model Ortofon: 2M Blue
Replacement Stylus Stylus 2M Blue
Stylus 0.3 x 0.7 mil
Cantilever Aluminum
Mount Half-inch
Frequency Response 20 - 20,000 Hz (+2/-1 dB)
Frequency Range 20 - 25,000 Hz (-3 dB)
Channel Separation 25 dB at 1 kHz
Channel Balance < 1.5 dB @ 1 kHz
Load Impedance/Capacitance 47k Ohms/150 - 300 pF
Output Voltage 5.5 mV
Cartridge Weight 0.25 oz (7.2g)
Headshell Weight 0.35 oz (9 g)
Cartridge Height 0.71 inches (18 mm)
Recommended Tracking Force 0.06 - 0.07 oz (1.6 - 2.0 g)
Vertical Tracking Angle 20°
Rubber Belt Specifications
Rubber Belt Design Continuous loop (joint-less)
Width 0.17 inches (4.5 mm)
Length 36.02 inches (915 mm)
Thickness 0.02 inches (0.6 mm)
Output Specifications
Connector RCA (Gold-plated)
Preamp No - Separate Phono Preamp Required
Phono Output 5.5 mV
Phono Bypass N/A
Line Output N/A
Ground Terminal Yes
Power Specification
Input 100 – 240 V AC (50/60 Hz)
Output 12 V / 500 mA
Consumption 1.5 W
General Specifications
Dimensions 5.5 x 16.5 x 13.75 inches / 14.0 x 41.9 x 34.9 cm (HxWxD)
Unit Weight 14.99 lb (6.8 kg)
Operating Temperature 41°F to 95°F (5°C to 35°C)
Wireless Playback No (Requires Bluetooth or WiFi transmitter connected via RCA connection to transmit audio wirelessly)
Fluance Speaker Size Comparison Chart

Click to Expand

Fluance Size Comparison Chart

UPC 061783268407

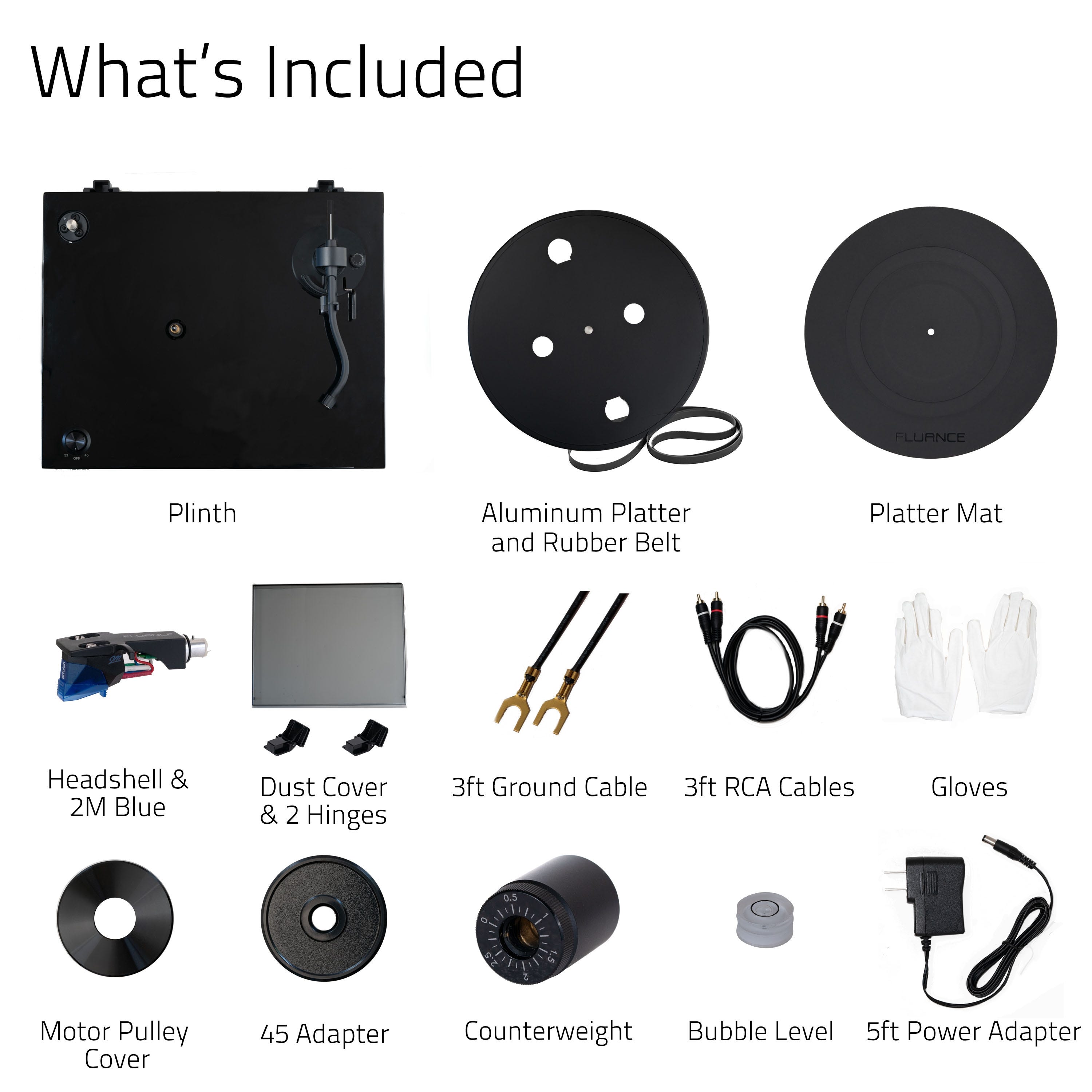

What's Included

RT84 Reference Turntable Line Out

Click to Expand

RT83 Reference Turntable Line Out


  • RT84T Turntable
  • Dust Cover + Hinges
  • Bubble Level
  • Headshell with Ortofon 2M Blue Cartridge
  • Counterweight
  • Metal Platter with Belt
  • Rubber Platter Mat
  • 5ft 100 - 240 V (50/60Hz) AC Power Adapter
  • 3ft 90pF RCA Cable
  • 3ft Ground Wire
  • 45 Adapter
  • Motor Pulley Cap
  • User Manual
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Direct Warranty
  • The RT84 underwent a slight component change since initial launch. The cartridge has been upgraded from the Ortofon 2M Red to the Ortofon 2M Blue. The acrylic platter has also been replaced with the aluminum platter. Pricing remains the same.
  • PA10 High Fidelity Phono Preamp

    PA10 High Fidelity Phono Preamp
    Audio Specifications
    Audio Circuit Type Passively Equalized RIAA
    Compatible Stylus MM
    Gain 38 dB
    Phono Input Sensitivity 30 mV
    Total Harmonic Distortion (THD) 0.004%
    RIAA Equalization Accuracy (deviation) 20 Hz - 20 kHz +/- 0.5 dB
    Signal/Noise (S/N) Ratio > 90 dB
    Crosstalk > -86 dB
    Input Impedance 47 kohm
    Input Load Capacitance 100 pF
    Output Impedance 100 ohm
    Output Voltage 2.2 V
    Maximum Input @ 1 kHz 100 mV
    Maximum Phono Stage Output 125 mV
    High Pass Filter Cutoff 20 Hz
    Dynamic Range > 85 dB
    Input/Output Specifications
    Input RCA L/R (Gold Plated)
    Output RCA L/R (Gold Plated)
    Ground Terminal Yes
    Cabinet Specifications
    Cabinet Material MDF
    Finish PVC Wood - Black
    Power Specification
    Power Input 110 V - 240 V ~ 50/60 Hz 0.5 A
    Power Adapter Output 24 V, 500 mA
    Power Consumption 0.4 W
    General Specifications
    Dimensions 4(L) x 2.25(H) x 3.6(D) inches (101.5 x 57.1 x 91.5 mm)
    Weight 11.5 oz (325 g)
    Operating Temperature -5°C - 45°C
    NOISE FLOOR (UNWEIGHTED) < 220 uV
    Compatible With Fluance RT80, RT81, RT82, RT83, RT84, and RT85 turntables as well as any turntables that are equipped with a Moving Magnet cartridge

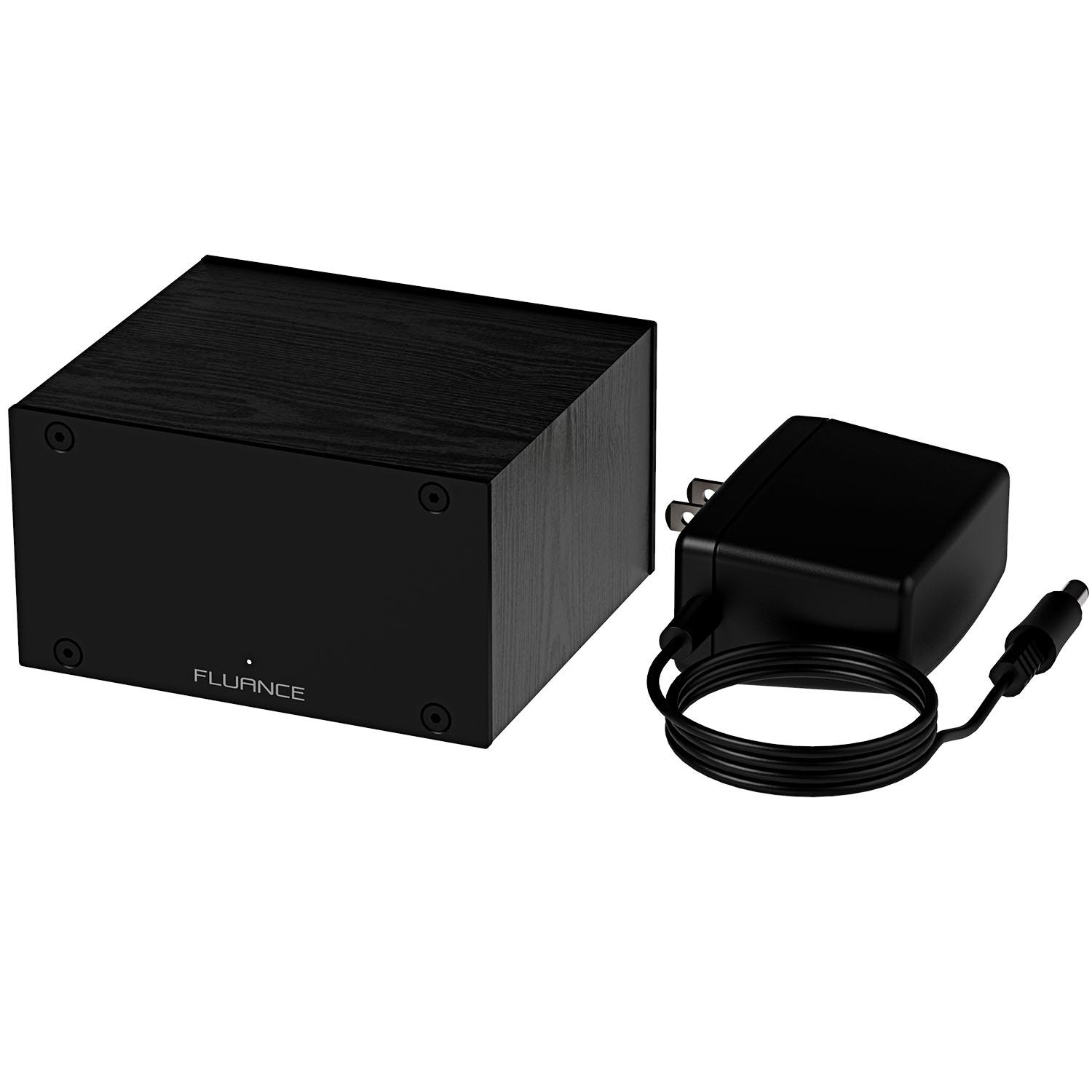

    What's Included

    PA10 Preamplifier Lineout

    Click to Expand

    PA10 Preamplifier Lineout

  • PA10 Unit
  • Power Adapter
  • User Manual
  • Fluance Catalog
  • Lifetime Customer Support
  • 2 Year Manufacturer’s Warranty
  • UPC 061783269794

    Ai60 High Performance Powered 6.5” Bookshelf Speakers

    Ai60 High Performance Powered 6.5” Bookshelf Speakers
    Speaker Configuration 2 Way – 2 Driver Powered Bookshelf Speaker System with Integrated Amplifier (Pair)
    Bluetooth Yes; aptX Codec
    Inputs RCA L/R, Digital Toslink Optical, Micro USB
    Tweeter 1 inch Silk Soft Dome Ferrofluid Cooled
    Woofer 6.5 inch Woven, Glass Fiber Composite Drivers with Butyl Rubber Surrounds
    Amplifier Power Class D 100 Watts Continuous Average Output (2x 50 watts)
    Frequency Response 35Hz – 20KHz (DSP Virtual Sound)
    Internal DAC Cirrus Logic CS8416
    Internal Lead Wire 18 gauge Internal Lead Wire to Reduce Signal Degradation
    Power Input: 100-240V AC (50/60Hz); Output: 24V 3.0A
    Crossover Frequency 2600Hz Phase Coherent – PCB Mounted Circuitry
    Enclosure Acoustic Suspension Design
    Dimensions 13.1 x 7.8 x 9.2 inches / 33.3 x 19.8 x 23.4 cm (HxWxD)
    Speaker Weight Active Speaker: 14.55 lbs
    Passive Speaker: 14.1 lbs
    Speaker Type Bookshelf
    Certifications ICES
    FCC Certified
    ETL/CETL
    Subwoofer Output 1
    Total Harmonic Distortion (THD) <0.3%
    WiFi Casting Pairs via Bluetooth with Google Home, Amazon Echo and AppleTV (Ai60 is not a WiFi speaker)
    Frequency Response Graph

    Click to Expand

    HFF Frequency Graph

    How to Read an SPL Graph

    Fluance Speaker Size Comparison Chart

    Click to Expand

    Fluance Size Comparison Chart

    UPC 871363024787

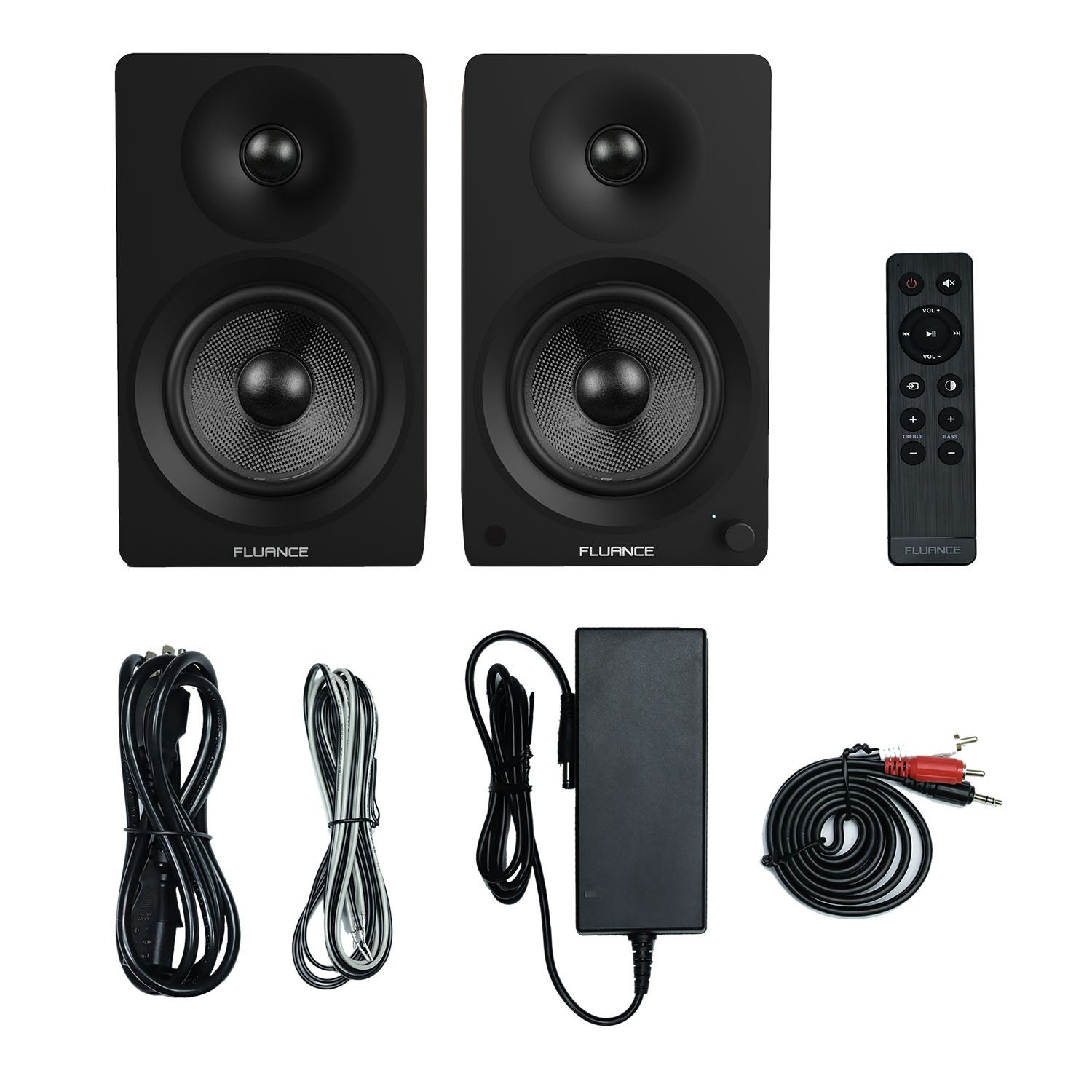

    What's Included

    Ai60 Speaker Line Out

    Click to Expand

    Ai60 Speaker Line Out

    • Fluance Ai60 Powered Bookshelf Speakers (pair)
    • Remote Control
    • 2x AAA Batteries
    • 8ft 100-240V Power Adapter
    • 8ft 18 Gauge Speaker Wire
    • 3ft 3.5mm Aux to RCA Cable
    • Quick Start Guide
    • Fluance Catalog
    • Lifetime Customer Support
    • 2 Year Manufacturer’s Warranty

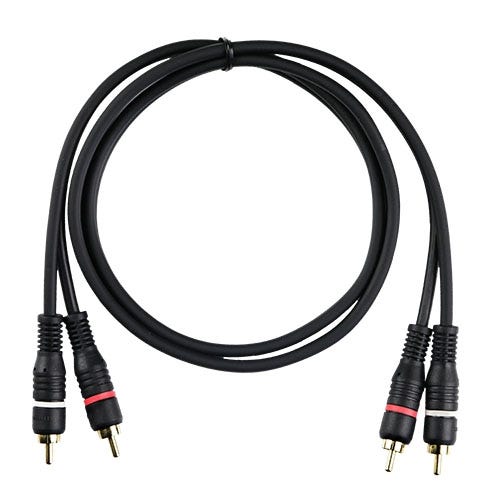

    Premium Grade Low Capacitance RCA Audio Cable (3 Feet)

    Premium Grade Low Capacitance RCA Audio Cable (3 Feet)
    Length 3'
    Compatible With RT80, RT81, RT82, RT83, RT84, RT85
    UPC 061783269053
    What's Included - 3 Foot Premium Grade RCA Audio Cable Lifetime Customer Support 2 Year Manufacturer’s Warranty
