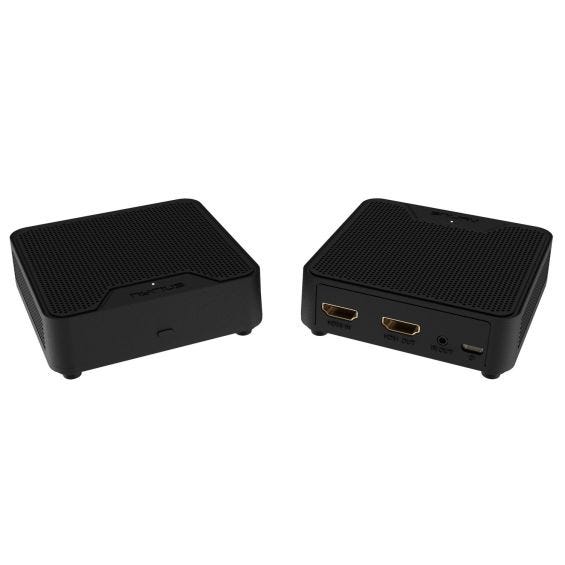

WS55 Wireless HD Video Transmitter & Receiver

WS55 Wireless HD Video Transmitter & Receiver

for Streaming HD 1080p Video/Digital Audio (WS55)

$149.99 USD

Free Shipping

# of Receivers:


  Estimated Delivery Date : August 11 - August 17




WS55 Wireless HD Video Transmitter & Receiver
Weight 1.3 pounds
Supported Video Resolution 1080p, 1080i, 720p, 576p, 480p (will support 4K content that has been downscaled to 1080p by source device)
Audio Formats Supported PCM 2CH, Dolby 5.1
Ports & Interfaces Transmitter: HDMI input, HDMI Loop Through (Output), Micro USB (for power), 2.5mm Jack (for IR Emitter) Receiver: HDMI Output, Micro USB (for power), 3.5mm Jack (for IR Emitter)
Wireless Range 40ft (streaming line of sight results in maximum range)
Transmission Frequency 802.11 a,b,g,n ; 5.8GHz (Band 1 & 4)
System Latency < 500ms (average 150ms)
Remote Control IR Frequency 30-60KHz
Antenna High Performance Internal Antennas
Wireless Technology WS Technology
Environmental Requirements Recommended to keep a distance of 1.5m from other wireless products Operating temperature: 0%C2%B0 to 40%C2%B0 C, Storage temperature -10 %E2%84%83 ~ +55%C2%B0 C, Relative humidity: 15 ~ 80% RH
Source Compatibility Any source containing an HDMI output port.
Display Compatibility Any high-definition television or projector with HDMI input including popular models from these manufacturers: Samsung, Sony, Sharp, Vizio, Hitachi, JVC, LG, Mitsubishi, Panasonic, Toshiba etc.
Wall Mountable Yes, Transmitter/Receiver have built-in keyhole slots
Remote Control No
Power Supply Receiver: 100-240VAC/50-60Hz (Wall Adapter) Transmitter: USB
Power Output (at 10% THD) Receiver: 5VDC, 1A Transmitter: 5VDC, 1A
Transmitter Dimensions 3.4 x 3.3 x 0.9 inches / 87.5 x 83.5 x 25.0 mm (LxWxH)
Multiple Transmitters No
Receiver Dimensions 3.4 x 3.3 x 0.9 inches / 87.5 x 83.5 x 25 mm (LxWxH)
Multiple Receivers Yes, Maximum of 4
Multiple Receivers Yes
Adapter Compatibility Nyrius does not recommend using Digital to Analog Adapters with our WS55 Products, however HDMI to miniHDMI/microHDMI adapters are compatible
Bandwidth 20MHz/40MHz
TX/RX Channel 1 TX / 4 RX
Certifications FCC, ICES, ETL
UPC 061783268421
What's Included
  • Digital Wireless HD Transmitter
  • 2x External IR Remote Extender
  • Digital Wireless HD Receiver
  • 2x 100-240V AC Power Adapters
  • 5ft HDMI Cable
  • 2x Screws/Screw Anchors
  • 1 Year Warranty
  • Lifetime Customer Support
  • Customer Reviews

    Overall Rating:

    Jimmy R May 5, 2020 Georgia, United States

    Great product. Fast shipping n delivery

    FAbrice A March 11, 2020 Ontario, Canada

    We are using this product in meeting room. Works great!

    Dilip December 25, 2019 Ontario, Canada

    Very good product

    Fred O September 26, 2019

    Easy setup and easy to use.

    anonymous September 25, 2019

    Worked as expected. In fact it worked well enough that we bought a second one to remote another TV in a different room. Initially concerned about the low number of reviews, but went ahead and took the risk. You should too. r

    Fred September 19, 2019

    I had an IOGear unit for almost five years and it suddenly stopped working. I replaced it with this unit.It is truly a plug n play device and the picture quality is excellent. I am feeding it through a Roku on my main TV with a secondary TV in the kitchen, not very far away.But at first, when both TVs were, on I had to mute the 2nd TV because it might as well have been on another channel for as un-synced as the sound was. With the IOGear the sound was perfectly synced and you could not even tell another TV was on. Since it came synced from the factory I put up with it for a while.Then I went ahead and did the sync myself and that helped immensely. Now the 2nd TV is more like an echo. Just a split second difference from the sound on my primary TV.Over all I'm pretty happy with it. It's nice having it work without a remote or really anything required from the user.

    RK September 5, 2019

    For reference, my two units are about 5 feet apart and separated by an interior wall. Out of the box setup was easy and everything seemed to work okay. But when watching the receiver TV, I would lose the audio when ever I interrupted the signal by changing channels, pausing the program, or switching to a DVR program. The only way I could restore the audio was by turning the unit off and then back on. This would take about 2 minutes and be very annoying. Additionaly, after watching a single channel continuously for 30 minutes or so the audio would just completely shut off and again I would have to turn everything off and back on in order to restart the audio. The company suggested that the units might be to close together, but the advertised max range is only 30 feet so that leaves a very small window. I did move the transmitter to a different Dish box in the house that was about 20 feet away from the receiver, but this made the video distorted and unwatchable. I also tried different HDMI cables but this also did not improve the situation. Amazon sent me a new unit after I reported this, but sad to say there was no improvement with the audio part of the system. As long as I don’t change channels or interrupt the signal in any way everything is fine. But for me whats the purpose of a TV video/audio trans-receiver if you cant change channels. My previous unit (a different brand) work perfectly for about 5 years until it just quit and I replaced it with this unit. Very disappointed and I will be buying another unit from another manufacturer.

    tim d September 1, 2019

    Easy to use.

    Nimbo August 22, 2019

    This is light years ahead of my old composite 5ghz video sender .... it supported 2 receivers & the audio latency was acceptable, but at the end of the day, the video quality sucked. And if anything got in the path (people, dogs, chairs) , the signal dropped out.The WS55 takes a little longer to start up (2-4 seconds or so, if the HDMI input signal was off ... during this period the blue Nyrius splash screen is up ), but the digital audio & video are rock solid & the audio latency doesn't irritate. Synchronization between the 2 receivers is good & standing in front of a receiver doesn't cause drop outs (my RXs & TX are about 15 feet apart). It also runs much cooler than my old units.So.... is it perfect? No. Is it better than pulling wire .... Yes. And the price doesn't break the bank like some options out there. And with all of the A/V goodies out there, it is very easy to integrate into an older A/V receiver that may not support audio thru the HDMI ports. I picked up an Amazon Basics audio extractor, an HDMI switch (my receiver only has 2 HDMI inputs) and now my Sat Box, Fire Stick, and Blu Ray player are all happy....

    Silvia196 July 24, 2019

    Easy to set up and use. Excellent transmission and quality of video to TV.

    brendan July 10, 2019

    When it works it’s good but I either have to unplug and restart the unit. Turn off and on one of the TVs or it just comes in delayed or pixelated. I probably have to trouble shoot it 59% of the time to get it working.

    seeminglee July 5, 2019

    Product works as described. There is a lot of latency with the remote. As well the picture freezes a bit. Very good idea but the technology is not great.

    Jonathan M June 24, 2019

    These work great! Use them in my motorhome for the front to back Tvs. There is a slight delay but it is not noticeable if you have the sound on one tv only. Remember they will not work to relay video from a smart tv to another one. You would need a video out signal for that. I just use these for DVD'S.

    Mikhail I May 14, 2019

    Out of the box ready, estheticly pleasant, works as expected.

    Samuel G April 20, 2019

    Good for the price
