Overview
Specifications

Supported Video Resolution | 1080p, 1080i, 720p, 576p, 480p |
---|---|
3D COMPATIBLE | Yes |
Audio Formats Supported | Uncompressed 7.1 PCM , DTS , Dolby Digital Surround Sound |
Video Formats Supported | 1080p, 1080i, 720p, 576p, 480p |
Ports & Interfaces | Transmitter: 1 HDMI input; Receiver: 1 HDMI output |
Wireless Range | 100ft (clear line of sight) |
Transmission Frequency | 5.1G ~ 5.9GHz |
System Latency | Zero latency (<1ms) |
Remote Control IR Frequency | 47K, 58K, 38K |
Antenna | High Performance Internal Antennas |
Wireless Technology | GigaXtreme Technology |
Environmental Requirements | Keep a distance of 1.5m with any other wireless product; Any source containing an HDMI port |
Source Compatibility | 1080p, 1080i, 720p, 576p, 480p |
Display Compatibility | Any high-definition television with HDMI including popular models from these manufacturers: Samsung, Sony, Sharp, Vizio, Hitachi, JVC, LG, Mitsubishi, Panasonic etc. |
Wall Mountable | Yes, Transmitter/Receiver have built-in keyhole slots |
Remote Control | No |
Power Supply | Receiver: 100-240VAC/50-60Hz (Wall Adapter) Transmitter: 100-240VAC/50-60Hz (Wall Adapter) |
Power Output (at 10% THD) | Receiver: 5VDC 1.5A Transmitter: 5VDC, 2A |
Transmitter Dimensions | 7.6x3.8x1.5inches (WxLxH) |
Multiple Transmitters | No |
Receiver Dimensions | 7.6x3.8x1.5inches (WxLxH) |
Multiple Receivers | No |
Adapter Compatibility | Nyrius does not recommend using Digital to Analog Adapters with our ARIES Products, however HDMI to miniHDMI/microHDMI adapters are compatible |
Certifications | FCC, ICES, UL |
UPC | 871363017352 |

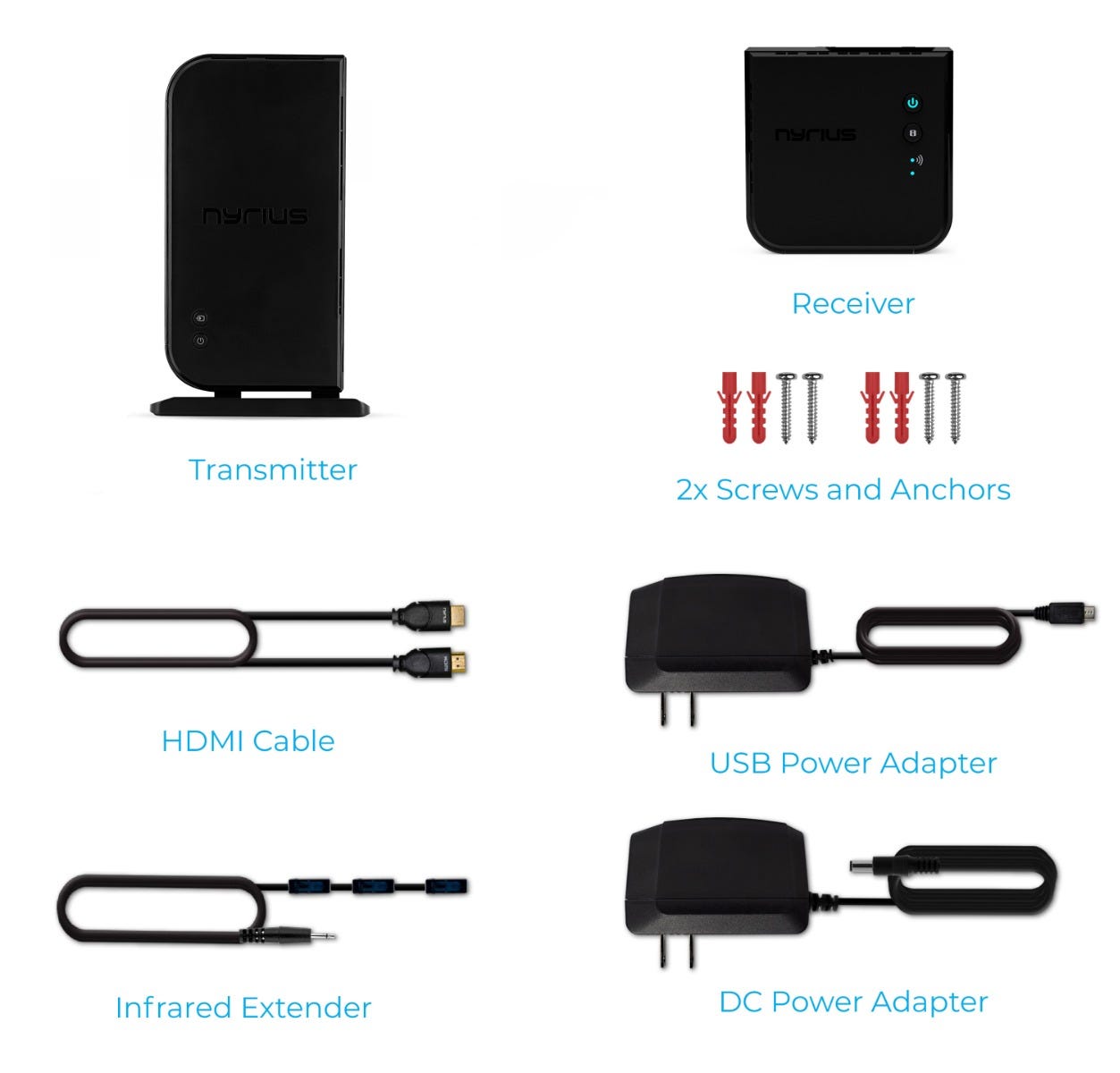

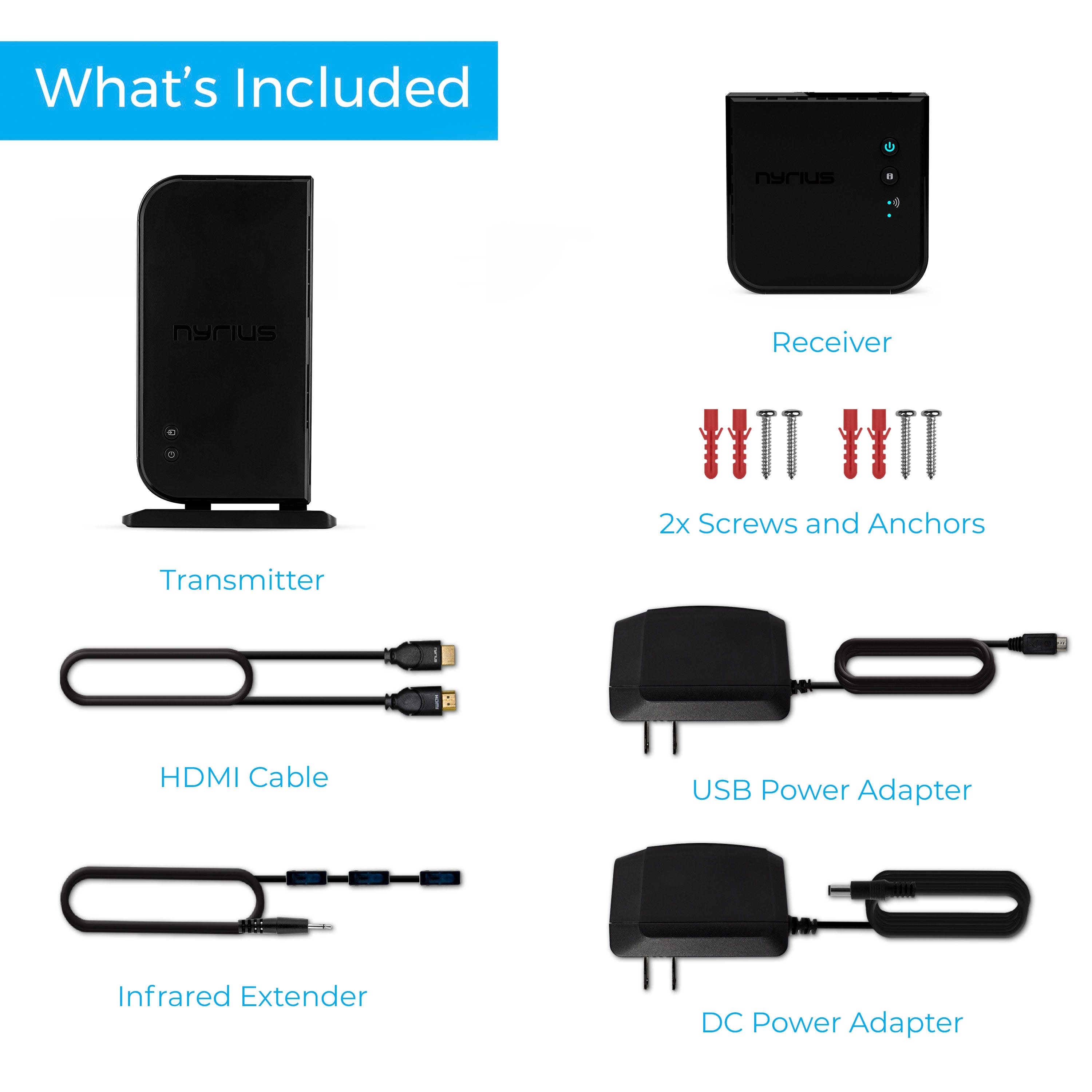

What's Included | |
Number of HDMI Inputs | 1 Port |
Customer Reviews
-
works really well, I’m using it through 2 floors. Takes about 20 seconds to sync once the tv is turned on, never had a break in signal while using
-
We moved the transmitter and receiver all over our den. We had to point the remote to a very specific spot on the wall to get it to work. It is set up line-of-sight between the transmitter and receiver approximately 12'. When you turn on the remote it takes about 90 seconds until we finally get a picture on the TV. Every so many minutes the picture or the sound will disappear. Very frustrating and disappointing considering the cost of the product.Not happy at all with the product. If this is as good as it gets, then I will just revert to running a cable across the floor.I would appreciate any technical advice you could provide to make this work or allow me to return it.
-
Super easy to setup and works great! Hooked it up to my Nintendo Switch and there is no lag! Tried 3 other products and this one is 1000x better than all the others. 100% recommend.
-
Best part about this setup is no remote required. It auto detects signal and turns on transmitter & receiver. And shuts off automatically as well. My only con could be it takes about 10 seconds to boot up. Almost enough to make you nervous. And then there it is, crystal clear.
-
Bought this in March, now November and it cuts in and out. Turns off. Constantly having problems.
-
This works great the pictures are perfectWould recommend for sure
-
works as described
-
I did a lot of research to find the right wireless HDMI to use with my cable box. I first bought the Jtech digital 200 meters it was link of working well but the signal was on and off until the transmitter broke after a few days. Then I bought the Nyrius Aries Home + and so far it work perfectly. Great product to transmit our cable tv across a large living room.
-
Easy to install but not able to change channel
-
This product does successfully wirelessly transmit the cable from the cable box to a remote display. The distances mentioned are ONLY for line of sight with no barriers. Transmitting through walls drastically reduced transmit distance. Picture is very good.
-
Plug and play. Great video transmission to outdoor TV (just a regular TV but on the covered lanai. Only thing is it momentarily blanks the screens on both tv's when commercial come on. Weird. Don't transmit sound on this as I have speakers wired from amp to this area. I have two other Nyrius units that do transmit audio without a problem.
-
This product worked extremely well at first but has since turned into a disappointment. The cable box is in the same room as the TV so it’s not a distance issue. I’ve tried to reboot both boxes for the device and nothing works. For the price that this unit costs, I would have expected a little longer longevity.
-
Easy to set up. I did opt to buy a separate HDMI cable splitter ($12) to ease the setup on my particular set needs. Picture is awesome on receiving unit.
-
Range no where as advertised. Very disappointed. Worked better the higher up the transmitter and receiver were placed.
-
I love this thing. Made it easy for me to run my Xbox one and ps3 to my tv mounted on the wall so I can keep all wires concealed behind the tv. Transmits the signal nicely. People are impressed when I tell them there’s no wires, well none that they can see.
See all reviews
Resources
Manual
Guides
Video
FAQs
Aries Home and Home+ are great for sending the video signal from devices like Television Set Top Boxes (cable & satellite), video game consoles, and DVD and Blu Ray players!
NAVS500 Nyrius Aries Home is designed to transmit video from one video source to a display such as a television.
The HDMI loopthrough feature available on the NAVS502 Aries Home+ allows you to watch one TV with a wired HDMI connection and another with a wireless connection to the receiver. This feature is available on the Aries Home+ and WS55.
HDMI Loopthrough, is a feature available on Aries Home+ and WS55, allowing you to connect your video source directly to your display through an HDMI port on the product’s transmitter, then also send the same video to the receiver connected to another display. Allowing you to watch on two displays at the same time!
The WS55 model transmitter is able to connect with up to 4 WS55 receivers (WS55RX). This allows you to send wireless video to 4 displays, with one wired connection at the transmitter for a total of 5 displays at the same time.
Also known as input lag, Nyrius Aries Wireless HD transmitters and receivers are considered Zero Latency. This means if you’re using a computer and move your mouse, there is no delay. This makes Aries product great for presentations and gaming!
