ARIES Home+ Wireless HDMI 2 Input Transmitter & Receiver

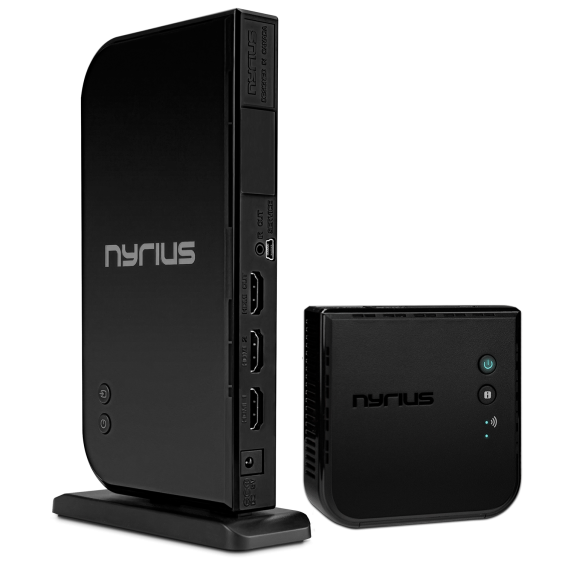

Nyrius ARIES Home+ Wireless HDMI 2 Input Transmitter & Receiver

for Streaming HD 1080p 3D Video (NAVS502)

$229.99 USD

Free Shipping

hdmi inputs:

2 Ports swatch

2 Ports

OR

Overview

Specifications

ARIES Home+ Wireless HDMI 2 Input Transmitter & Receiver
Supported Video Resolution 1080p, 1080i, 720p, 576p, 480p
3D COMPATIBLE Yes
Audio Formats Supported Uncompressed 7.1 PCM , DTS , Dolby Digital Surround Sound
Video Formats Supported 1080p, 1080i, 720p, 576p, 480p
Ports & Interfaces Transmitter: 2x HDMI input + 1x HDMI output; Receiver: 1x HDMI output
Wireless Range 100ft (clear line of sight)
Transmission Frequency 5.1G ~ 5.9GHz
System Latency Zero latency (<1ms)
Remote Control IR Frequency 47K, 58K, 38K
Antenna High Performance Internal Antennas
Wireless Technology GigaXtreme Technology
Environmental Requirements Keep a distance of 1.5m with any other wireless product; Any source containing an HDMI port
Source Compatibility 1080p, 1080i, 720p, 576p, 480p
Display Compatibility Any high-definition television with HDMI including popular models from these manufacturers: Samsung, Sony, Sharp, Vizio, Hitachi, JVC, LG, Mitsubishi, Panasonic etc.
Wall Mountable Yes, Transmitter/Receiver have built-in keyhole slots
Remote Control Yes

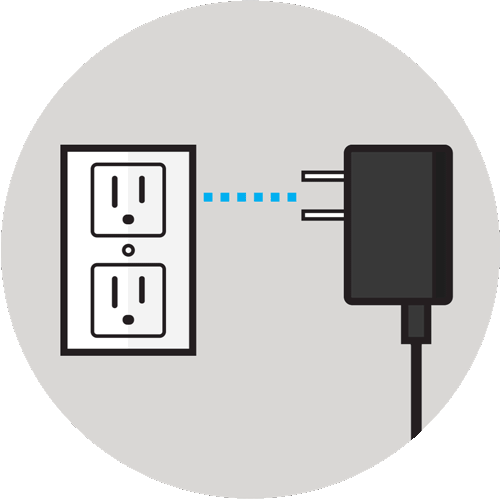

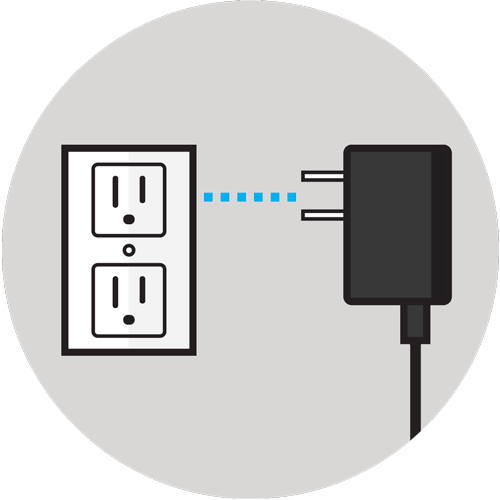

Power Supply Receiver: 100-240VAC/50-60Hz (Wall Adapter)
Transmitter: 100-240VAC/50-60Hz (Wall Adapter)
Power Output (at 10% THD) Receiver: 5VDC, 1.5A
Transmitter: 5VDC, 2A
Transmitter Dimensions 7.6x3.8x1.5inches (WxLxH)
Multiple Transmitters No
Receiver Dimensions 3.7x3.7x1.2inches (WxLxH);
Multiple Receivers No
Adapter Compatibility Nyrius does not recommend using Digital to Analog Adapters with our ARIES Products, however HDMI to HDMI/microHDMI adapters are compatible
Certifications FCC, ICES, UL
UPC 061783260463

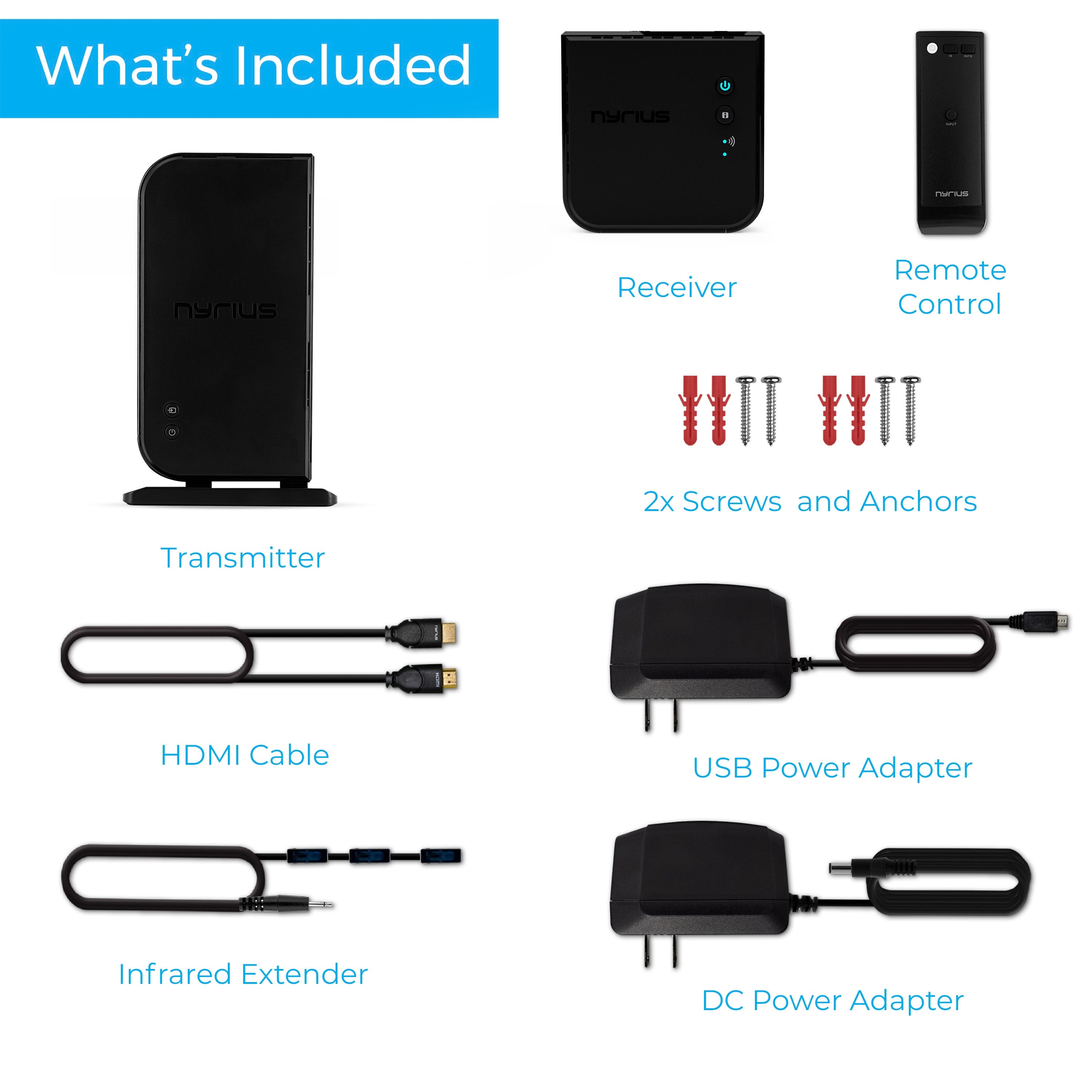

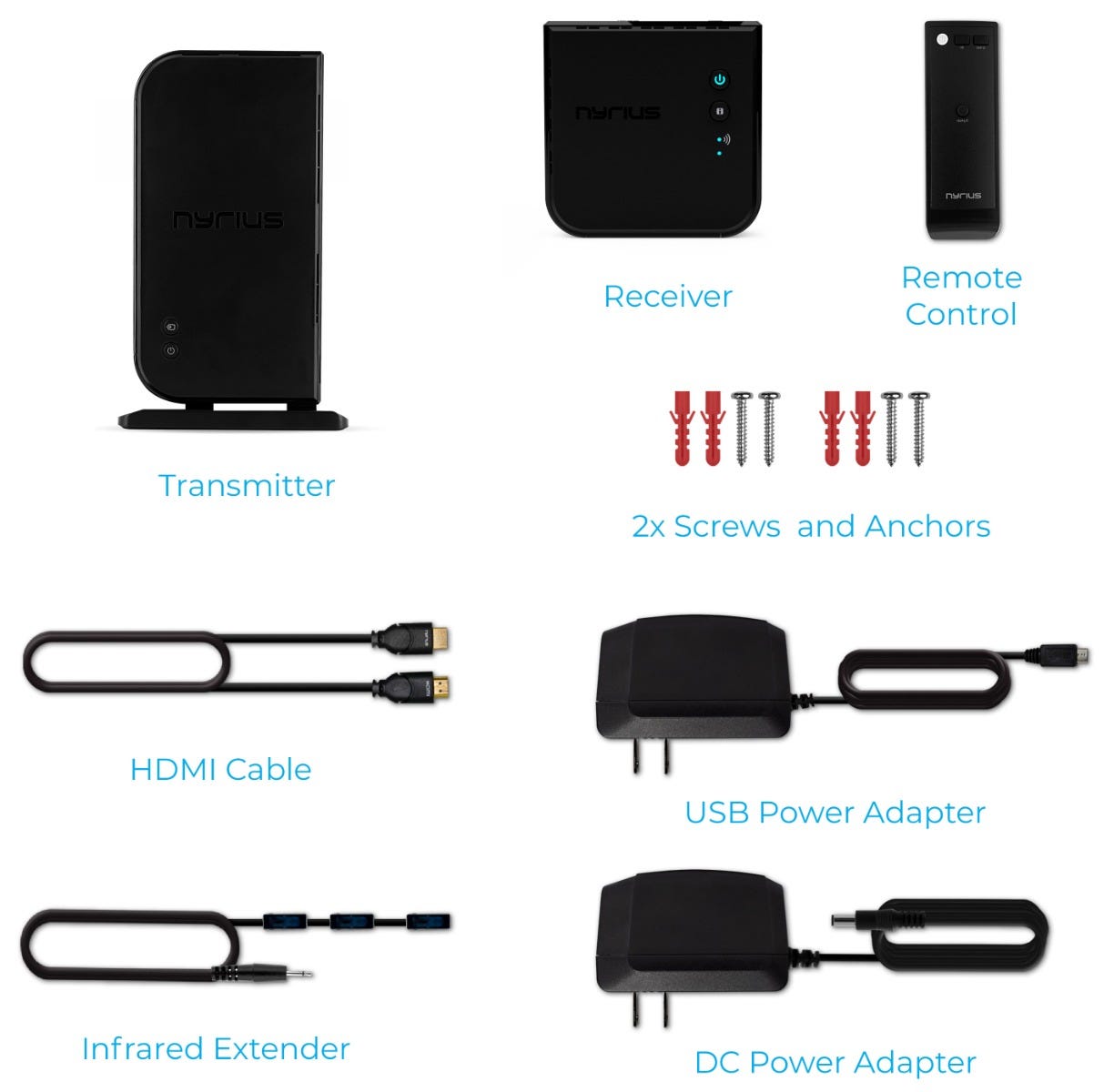

What's Included
  • Digital Wireless HD Transmitter
  • External IR Remote Extender
  • Digital Wireless HD Receiver with Built-in IR Remote Extender
  • 2x 100-240V AC Power Adapters
  • 5ft HDMI Cable

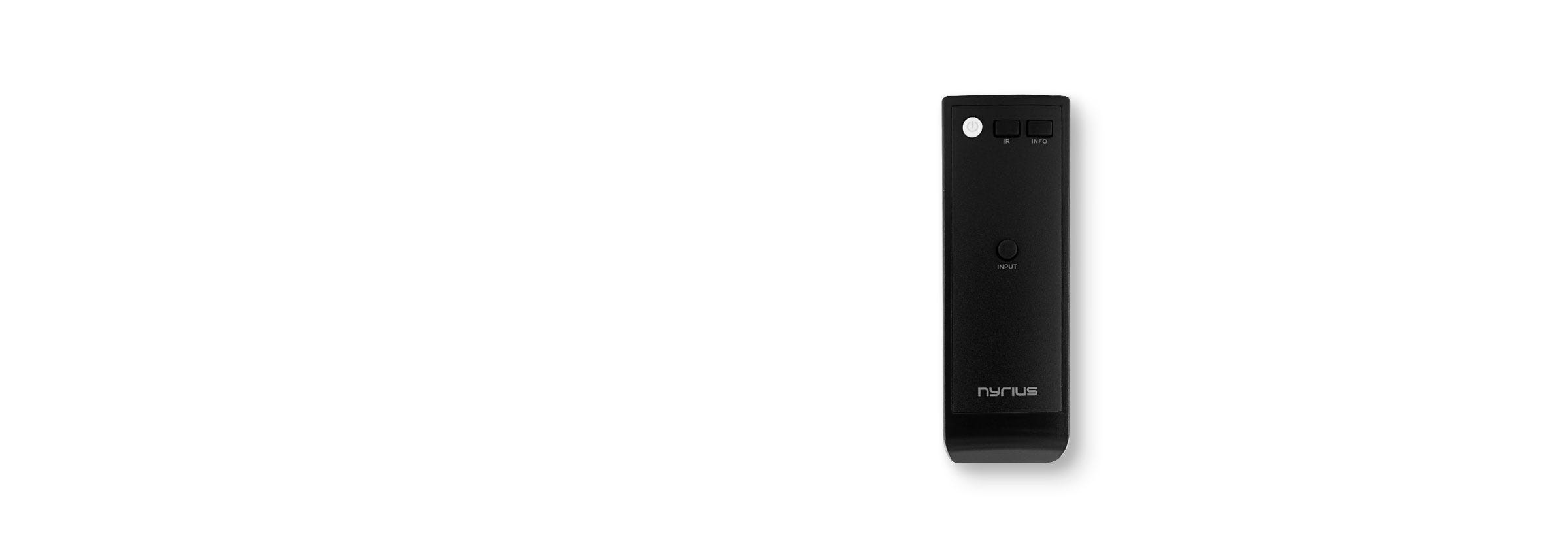

  • Remote Control
  • 2x Screws/Screw Anchors
  • 1 Year Warranty
  • Lifetime Customer Support
  • Number of HDMI Inputs 2 Ports

    Press

    TechHive Reviews the Nyrius Aries Home+ Wireless HDMI Transmitter

    "This is one of the easiest, least-expensive solutions for streaming HD video from a source in one room to a TV in another."

    Read the Full Review

    Android Authority Reviews the Nyrius Aries Home+ Wireless HDMI Transmitter

    "All in all, if you have a need for wireless HDMI, this is going to be your best bet."


    Read the Full Review

    Technology Tell Reviews the Nyrius Aries Home+ Wireless HDMI Transmitter

    "So if you want to save yourself the hassles of running lengths of HDMI cable through or around the house, this is the gadget you want."

    Read the Full Review

    About.com Reviews the Nyrius Aries Home+ Wireless HDMI Transmitter

    "I did not find any audio/video synch issues, which is definitely a good thing. Also, the video quality is the same as what you would get through a wired connection - I did not perceive difference alternating between wired and wireless."

    Read the Full Review

    Customer Reviews

    Overall Rating:

    Garry, J January 17, 2021 Ontario, Canada

    works really well, I’m using it through 2 floors. Takes about 20 seconds to sync once the tv is turned on, never had a break in signal while using

    5
    Bob O December 13, 2020

    We moved the transmitter and receiver all over our den. We had to point the remote to a very specific spot on the wall to get it to work. It is set up line-of-sight between the transmitter and receiver approximately 12'. When you turn on the remote it takes about 90 seconds until we finally get a picture on the TV. Every so many minutes the picture or the sound will disappear. Very frustrating and disappointing considering the cost of the product.Not happy at all with the product. If this is as good as it gets, then I will just revert to running a cable across the floor.I would appreciate any technical advice you could provide to make this work or allow me to return it.

    2
    Jeremy R December 11, 2020

    Super easy to setup and works great! Hooked it up to my Nintendo Switch and there is no lag! Tried 3 other products and this one is 1000x better than all the others. 100% recommend.

    5
    Michelle R November 24, 2020

    Best part about this setup is no remote required. It auto detects signal and turns on transmitter & receiver. And shuts off automatically as well. My only con could be it takes about 10 seconds to boot up. Almost enough to make you nervous. And then there it is, crystal clear.

    4
    Jordan s November 17, 2020

    Bought this in March, now November and it cuts in and out. Turns off. Constantly having problems.

    1
    Julie L November 16, 2020

    This works great the pictures are perfectWould recommend for sure

    5
    william October 30, 2020

    works as described

    5
    Ruben October 24, 2020

    I did a lot of research to find the right wireless HDMI to use with my cable box. I first bought the Jtech digital 200 meters it was link of working well but the signal was on and off until the transmitter broke after a few days. Then I bought the Nyrius Aries Home + and so far it work perfectly. Great product to transmit our cable tv across a large living room.

    5
    Gary M October 13, 2020

    Easy to install but not able to change channel

    2
    Patrick October 13, 2020

    This product does successfully wirelessly transmit the cable from the cable box to a remote display. The distances mentioned are ONLY for line of sight with no barriers. Transmitting through walls drastically reduced transmit distance. Picture is very good.

    4
    James H. October 13, 2020 Texas, United States

    Plug and play. Great video transmission to outdoor TV (just a regular TV but on the covered lanai. Only thing is it momentarily blanks the screens on both tv's when commercial come on. Weird. Don't transmit sound on this as I have speakers wired from amp to this area. I have two other Nyrius units that do transmit audio without a problem.

    5
    BRIAN M September 26, 2020

    This product worked extremely well at first but has since turned into a disappointment. The cable box is in the same room as the TV so it’s not a distance issue. I’ve tried to reboot both boxes for the device and nothing works. For the price that this unit costs, I would have expected a little longer longevity.

    2
    T. K September 20, 2020

    Easy to set up. I did opt to buy a separate HDMI cable splitter ($12) to ease the setup on my particular set needs. Picture is awesome on receiving unit.

    5
    Michael A September 19, 2020

    Range no where as advertised. Very disappointed. Worked better the higher up the transmitter and receiver were placed.

    2
    bosstrent2010 September 9, 2020

    I love this thing. Made it easy for me to run my Xbox one and ps3 to my tv mounted on the wall so I can keep all wires concealed behind the tv. Transmits the signal nicely. People are impressed when I tell them there’s no wires, well none that they can see.

    See all reviews 5
