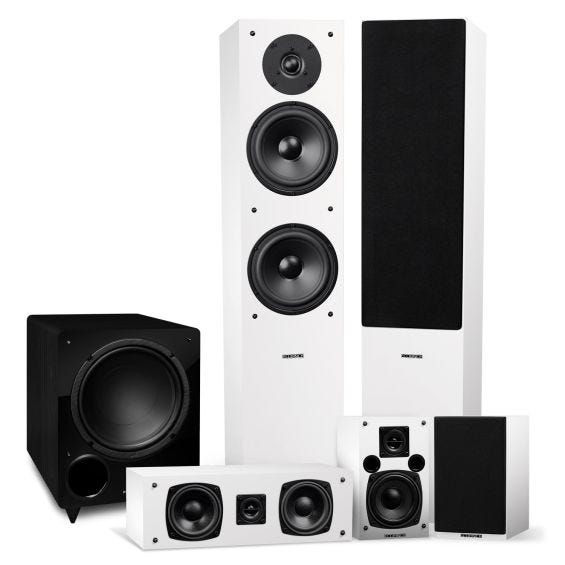

Elite High Definition Surround Sound Home Theater 5.1 Channel Speaker System
Color: White
No. Audio Channels:
The Elite Series 5.1 Speaker System
The Elite Series 5.1 Speaker System delivers radiant and engaging performances with a skillfully matched 5-speaker surround sound system. The premium components ensure sound reproduction that will exceed audiophile expectations. From the powerful solo excursions to the defined lyrics, the floorstanding towers, surrounds, center channel, and subwoofer harmonize for genuine listening experiences.
Speakers Matched to Your Lifestyle
When the Elite System is used in Dolby surround and DTS systems you can truly hear what home theater is supposed to be. Each speaker provides superior performance at every volume level with outstanding precision and clarity, allowing you to soak up all the dramatic impact your music and movies can deliver.
Soaring Highs
Perk your ears up with exhilarating high notes reproduced by the Elite System. The premium silk dome tweeters provide breathtaking, crystal clear performances. This surround sound system’s high frequency drivers deliver vivid, precise sounds and effects with lifelike realism. Sit back, relax and enjoy the show.
Energetic Midrange and Rich Lows
The Elite system articulates the rich vocals delivered from the midrange drivers and reproduces the fine details with sonic accuracy. The floorstanding speakers’ dual 6.5” woofers allow for optimal low frequency response enhancing the overall cinematic experience. Get taken back by the thrilling explosions as if you were on the set of a Hollywood blockbuster.
Match Made in Home Audio
The Elite Series is expertly matched to fit your home audio lifestyle. Engineered MDF wood construction reduces cabinet resonance and distortion for uninterrupted enjoyment of your favorite movies and music.
The perfect complement to an audiophile’s lifestyle, you’ll be enjoying cinema quality sound in your home for years to come.
System Includes: SXC-BK, SXHTBFR-BK, SXSS-BK, DB10
PREMIUM FEATURES
- Engineered MDF wood construction to reduce cabinet resonance
- Vertically and horizontally internally braced cabinet with reinforced front baffle (Fronts)
- Ultra high-end neodymium balanced silk dome tweeters provide accurate high frequency response
- Ferro-fluid cooled tweeter for longer life
- Tuned bass port for controlled low frequency response and improved efficiency
- Banana plug and speaker wire compatible connectors on all speakers
- Built-in keyhole slot wall mount hardware (Surrounds)
- Low diffraction flush fit removable front grills for spacious imaging
- Magnetically shielded to avoid interference with other video products
- Isolation platforms (Fronts/Surrounds) with integrated floor spikes to separate speakers from the floor - for use on hardwood or carpeted areas
- Premium crossovers feature Butterworth design for audio equalization
- 18 gauge internal lead wire to reduce signal degradation
Specifications
Classic Elite Series High Definition Two-way Floorstanding Main Speakers
| Series | ELITE |
|---|---|
| Speaker Configuration | 2 Way - 3 Driver Floorstanding Main Speakers |
| Enclosure | Bass Reflex Design Internally Braced |
| Tweeter | 1 inch Silk Dome Ferrofluid Cooled |
| Woofer | Dual 6.5 inch Poly-coated Drivers with Butyl Rubber Surrounds |
| Power Handling | 50 - 160 Watts |
| Frequency Response | 49 Hz - 20 kHz |
| Sensitivity | 89 dB @ 2.83 V / 1 m |
| Crossover Frequency | 3500 Hz PCB Phase Coherent - Mounted Circuitry |
| Impedance | 8 Ohms |
| Dimensions | 37.5 x 7.8 x 13.7 inches / 95.3 x 19.8 x 34.8 cm (HxWxD) |
| Weight | 32.5 lb (14.7 kg) /speaker |
| Frequency Response Graph |
|
| Fluance Speaker Size Comparison Chart | |
| UPC | 61783270912 |
| What's Included |
DB10 10-inch Low Frequency Ported Front Firing Powered Subwoofer
| Speaker Configuration | Front Firing Powered Subwoofer with Integrated Amplifier |
|---|---|
| Cabinet Material | Precision Crafted MDF Internally Braced and Dampened |
| Enclosure | Front Firing Tuned Bass Reflex Vented Port |
| Low-Frequency Driver | 10 Inch Polypropylene with Rubber Surround |
| Amplifier Power | Peak 120W / RMS 45W |
| Audio Inputs | LFE/Low Level Input & High Level Input/Speaker Levels |
| Low-Pass Crossover | 40 Hz – 180 Hz |
| Frequency Response | 38 Hz – 180 Hz (±3 dB) Full Range Anechoic Measurement 35 Hz – 180 Hz (±6 dB) Full Range Anechoic Measurement |
| Phase Adjustment | Yes |
| Auto Function | Yes – (100 Hz signal input reach 3 mV, 1 kHz input 5 mV) |
| Gain Control | No |
| Power Input | 120 V (60 Hz) |
| Dimensions | 16 x 11.9 x 15.7 inches / 40.6 x 30.2 x 39.9 cm (HxWxD) |
| Weight | 24.7 lb (11.2 kg) |
| Fluance Speaker Size Comparison Chart |
|
| UPC | 061783265161 |
| What's Included |
Classic Elite Series Center Channel & Surround Sound Speakers
| Series | ELITE |
|---|---|
| Speaker Configuration | Center: 2 Way - 3 Driver Center Channel Surrounds: 2 Way - 2 Driver Surround Speakers (Wall Mountable) |
| Enclosure | Center: Bass Reflex Design Surrounds: Bass Reflex Design |
| Tweeter | Center: 1 inch Neodymium Balanced Dome Ferrofluid Cooled Surrounds: 1 inch Neodymium Balanced Dome Ferrofluid Cooled |
| Midrange | Center: Dual 4.0 inch Poly-coated Drivers Surrounds: 4.0 inch Driver |
| Power Handling | Center: 30 - 100 Watts Surrounds: 30 - 100 Watts |
| Frequency Response | Center: 80 Hz - 20 kHz Surrounds: 80 Hz - 20 kHz |
| Sensitivity | Center: 86 dB @ 2.83 V / 1 m Surrounds: 86 dB @ 2.83 V / 1 m |
| Crossover Frequency | Center: 8000 Hz Phase Coherent - PCB Mounted Circuitry Surrounds: 8000 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | Center: 8 Ohms Surrounds: 8 Ohms |
| Dolby Atmos | Surrounds: Ideal for use as surround sound speakers in a Dolby Atmos™ Surround Sound System |
| Dimensions | Center: 5.3 x 15.8 x 8.0 inches / 13.5 x 40.1 x 20.3 cm (HxWxD) Surrounds: 8.7 x 5.3 x 7.0 inches / 22.1 x 13.5 x 17.8 cm (HxWxD) |
| Weight | Center: 9.0 lb (4.1 kg) Surrounds: 5.0 lb (2.3 kg) /speaker |
| Frequency Response Graph |
|
| Fluance Speaker Size Comparison Chart | |
| UPC | 61783270905 |
| What's Included |
What's Included
Videos
Guides
Take a comprehensive look at the set up, function, and maintenance of your product. The product manual details all of its specifications and how to care for your product.
