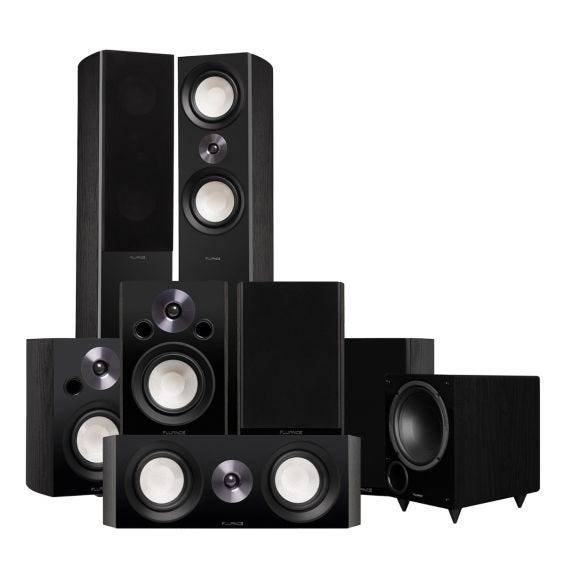

Reference Surround Sound Home Theater 7.1 Channel Speaker System with DB10 Subwoofer
Black Ash (X871BR)
$1,282.99 USD
Color: Black Ash
No. Audio Channels:
Learn More
Clicking this button will redirect you to the official website to make the purchase
HIGH PERFORMANCE 7.1 SPEAKER SYSTEM
Engineered with premium components to pack a powerful punch of room-filling music delivering a truly immersive home audio experience featuring Floorstanding speakers, a Center Channel, Bookshelf, Rear Surrounds and DB10 Subwoofer
DYNAMIC FLOORSTANDING SPEAKERS
Unique down-firing 8-inch woofer with neodymium silk dome tweeters and dual 6.5-inch woven fiber midrange drivers ensuring a powerful performance
EXQUISITE BOOKSHELF SURROUNDS
As impactful as tower speakers, with outstanding clarity and immersive sound reproduction, these bookshelf speakers are perfect as fronts or surround sound speakers
POWERFUL 10" SUBWOOFER
Low distortion amplifier provides continuous 240 watts of clean, dynamic power (400w peak) to deliver heart pounding bass at the most intense music and movie climaxes
SUPERIOR CABINET ENGINEERING
Meticulously designed enclosure with rigid internal bracing to avoid unwanted resonance and dual rear ports for controlled low-frequency response (Frequency Range 35Hz - 25KHz)
Theater 7.1 Channel Speaker System
with DB10 Subwoofer
Home Theater 7.1 Channel Speaker System with DB10 Subwoofer
No Matter Where You Sit
frequencies while providing spacious off axis dispersion allowing you to
hear beautifully expressed highs anywhere in the room.
No Matter Where You Sit
spacious off axis dispersion allowing you to hear beautifully expressed highs anywhere in the room.
No Matter Where You Sit
detailed high frequencies while providing spacious off axis
dispersion allowing you to hear beautifully expressed highs
anywhere in the room.
resulting in a faithful reproduction of the original recording immersing you in sonic
experience of outstanding accuracy.
optimal linear movement resulting in a faithful reproduction of
the original recording immersing you in sonic experience of
outstanding accuracy.
a Rich Low End
undistorted bass response so you can experience a lively full range performance.
Articulating a Rich
Low End
exceptionally deep and undistorted bass response so you can
experience a lively full range performance.
preventing unwanted resonance and is composed of separate internal enclosures keeping
sound waves isolated to eliminate any acoustic interference. Dual rear ports in the woofer
enclosures provide a controlled low-frequency response.
have rigid internal bracing preventing unwanted resonance
and is composed of separate internal enclosures keeping
sound waves isolated to eliminate any acoustic interference.
Dual rear ports in the woofer enclosures provide a controlled
low-frequency response.
Pinnacle of Serious Performance
Surround Sound Home Theater 7.1 Speaker System has been completely re-developed
to deliver the ultimate sound experience for home theater sound system. It’s what your
music and movies have been waiting for.
Pinnacle of Serious Performance
Home Theater 7.1 Speaker System has been completely re-developed to deliver the ultimate sound
experience for home theater sound system. It’s what your music and movies have been waiting for.
Delivering the Pinnacle of
Serious Performance
lineup, the Reference Surround Sound Home Theater 7.1 Speaker
System has been completely re-developed to deliver the ultimate
sound experience for home theater sound system. It’s what your
music and movies have been waiting for.
components and expert audio engineering, the Reference Speakers are a
testament to the performance that can be achieved when a passion for music
takes center stage. The perfect complement to any audiophile’s lifestyle,
you’ll be enjoying live performances in your home for years to come.
only superior components and expert audio engineering, the
Reference Speakers are a testament to the performance that
can be achieved when a passion for music takes center stage.
The perfect complement to any audiophile’s lifestyle, you’ll be
enjoying live performances in your home for years to come.
Specifications
Reference High Performance 2-Way Bookshelf and Surround Speakers
| Series | REFERENCE |
|---|---|
| Speaker Type | Bookshelf |
| Speaker Configuration | 2 Way - 2 Driver Passive Surround Speakers (Wall Mountable) |
| Enclosure | Vented Bass-reflex Design |
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Woofer | 5.25 Inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Power Handling | 40 - 80 Watts RMS |
| Frequency Response | 50 Hz - 20 KHz |
| Sensitivity | 85 dB @ 1 W / 1 m |
| Crossover Frequency | 3100 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohm Compatible |
| Dolby Atmos | Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound |
| Dimensions | 11.4 x 8.1 x 9.0 inches / 29 x 20.6 x 22.9 cm (HxWxD) |
| Weight | 11.35 pounds/speaker (5.15 kg/speaker) |
| Frequency Response Graph | Click to Expand |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | CE Certified |
| UPC | 061783269732 |
| What's Included |
|
Reference High Performance 3-Way Floorstanding Loudspeakers
| Series | REFERENCE |
|---|---|
| Speaker Type | Floorstanding |
| Speaker Configuration | 3 Way - 4 Driver Floorstanding Main Speakers (pair) |
| Enclosure | Tuned Rear Dual Port Bass Reflex Tower Design Dampened |
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Midrange | Dual 6.5 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Woofer | Isolated Down-firing 8 inch Polymer Treated High Excursion Driver with Butyl Rubber Surround |
| Power Handling | 80 - 160 Watts RMS |
| Frequency Response | 35Hz - 25KHz |
| Sensitivity | 87dB @ 1W / 1m |
| Crossover Frequency | 100/3000 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohm Compatible |
| Dolby Atmos | Ideal for use as front speakers in a Dolby Atmos Surround Sound System |
| Dimensions | 45.86 x 9.25 x 12.99 inches / 116.5 x 23.5 x 33 cm (HxWxD) |
| Weight | 47.70 pounds/speaker (21.64 kg/speaker) |
| Frequency Response Graph | Click to Expand |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | CE Certified |
| UPC | 61783269787 |
| What's Included |
|
DB10 10-inch Low Frequency Ported Front Firing Powered Subwoofer
| Speaker Configuration | Front Firing Powered Subwoofer with Integrated Amplifier |
|---|---|
| Enclosure | Front Firing Tuned Bass Reflex Vented Port |
| Low-Frequency Driver | 10 Inch Polypropylene with Rubber Surround |
| Amplifier Power | Peak 120W / RMS 45W |
| Audio Inputs | LFE/Low Level Input & High Level Input/Speaker Levels |
| Low-Pass Crossover | 40Hz – 180Hz |
| Frequency Response | 38Hz – 180Hz (±3dB) Full Range Anechoic Measurement 35Hz – 180Hz (±6dB) Full Range Anechoic Measurement |
| Phase Adjustment | YES |
| Auto Function | Yes – (100Hz signal input reach 3mV, 1KHz input 5mV) |
| Gain Control | No |
| Power Input | 120V (60Hz) |
| Dimensions | 16 x 11.9 x 15.7 inches / 40.6 x 30.2 x 39.9 cm (HxWxD) |
| Weight | 24.7 pounds |
| Fluance Speaker Size Comparison Chart |
|
| UPC | 061783265161 |
| What's Included |
Reference High Performance 2-Way Center Channel Speaker
| Series | REFERENCE |
|---|---|
| Speaker Configuration | 2 Way - 3 Driver Center Channel |
| Enclosure | Acoustic Suspension Design |
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Woofer | Dual 5.25 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Power Handling | 50 - 100 Watts RMS |
| Frequency Response | 110Hz - 20KHz |
| Sensitivity | 86dB @ 1W / 1m |
| Crossover Frequency | 3000 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohm Compatible |
| Dolby Atmos | Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound |
| Dimensions | 6.9 X 9.0 X 18.5 inches / 17.53 x 22.86 x 46.99 cm (HxWxD) |
| Weight | 15 pounds (6.8 kg) |
| Frequency Response Graph | Click to Expand |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | CE Certified |
| UPC | 061783269718 |
| What's Included |
|
What's Included
