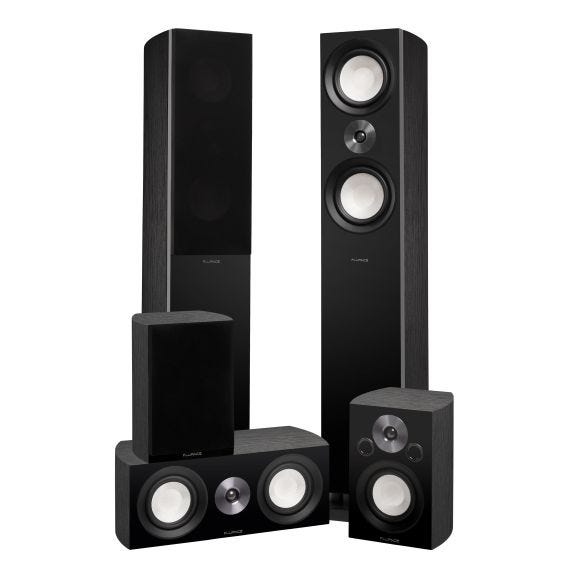

Reference Surround Sound Home Theater 5.0 Channel Speaker System

Black Ash (XL8HTB)

Rating:
100%
$899.99 USD

Color: Black Ash

color-swatchcolor-swatch

No. Audio Channels:

Place Order
Learn More
Clicking this button will redirect you to the official website to make the purchase
Reference Surround Sound Home Theater 5.0 Channel Speaker System
Reference Surround Sound Home Theater 5.0 Channel Speaker System

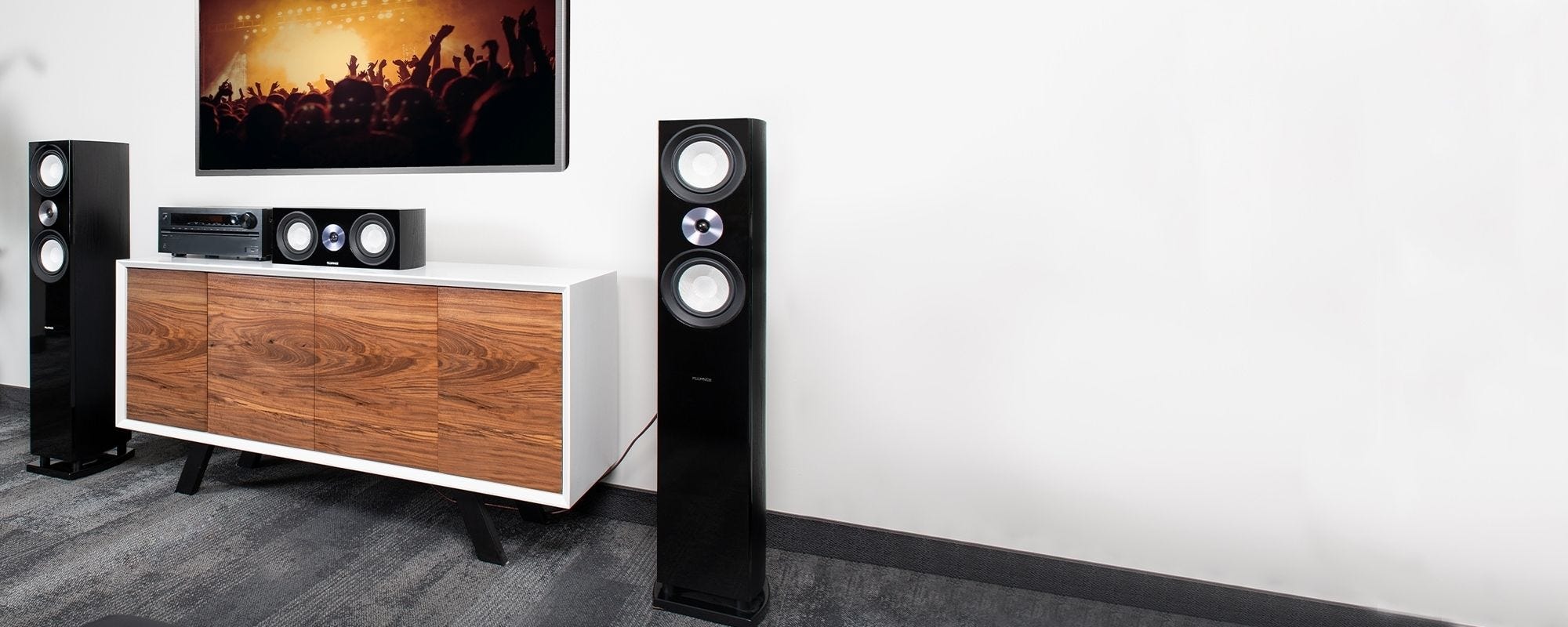

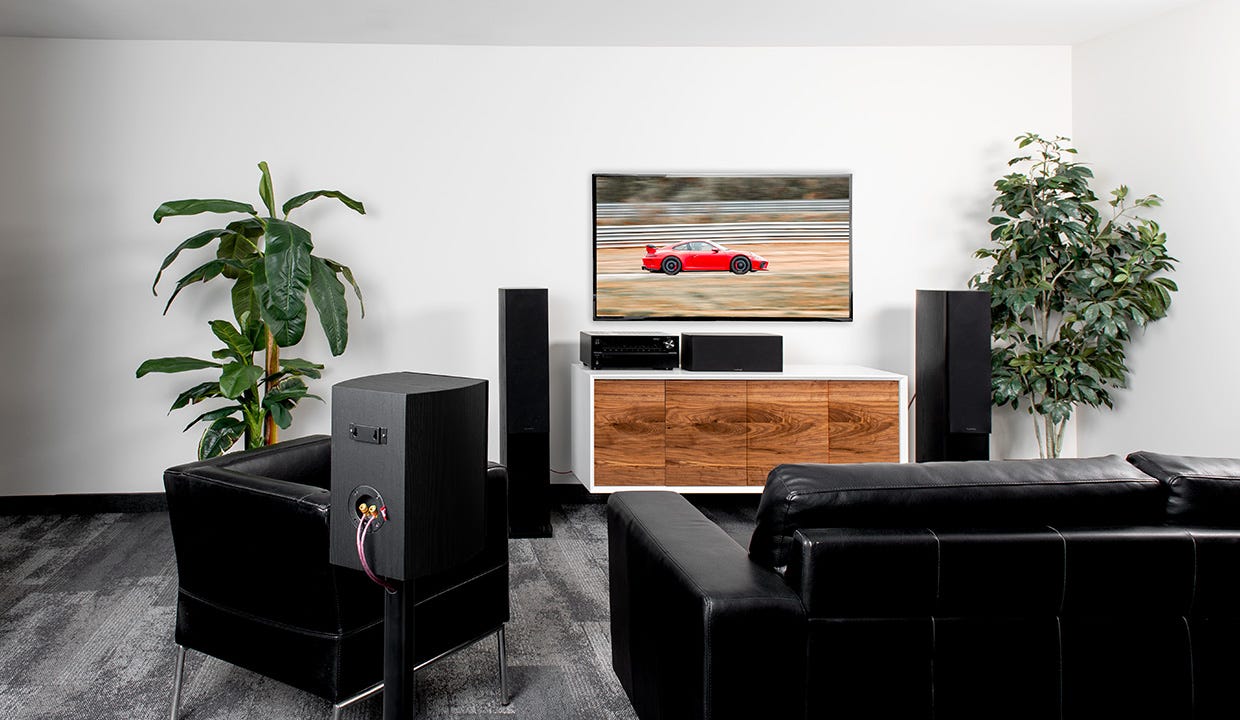

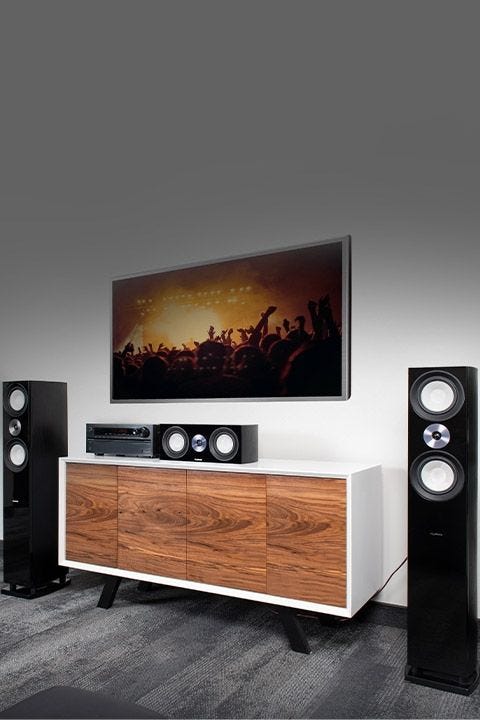

Next-Level Sound Performance

NEXT-LEVEL SOUND PERFORMANCE

Engineered with premium components to pack a powerful punch of room-filling music delivering a truly immersive home theater experience

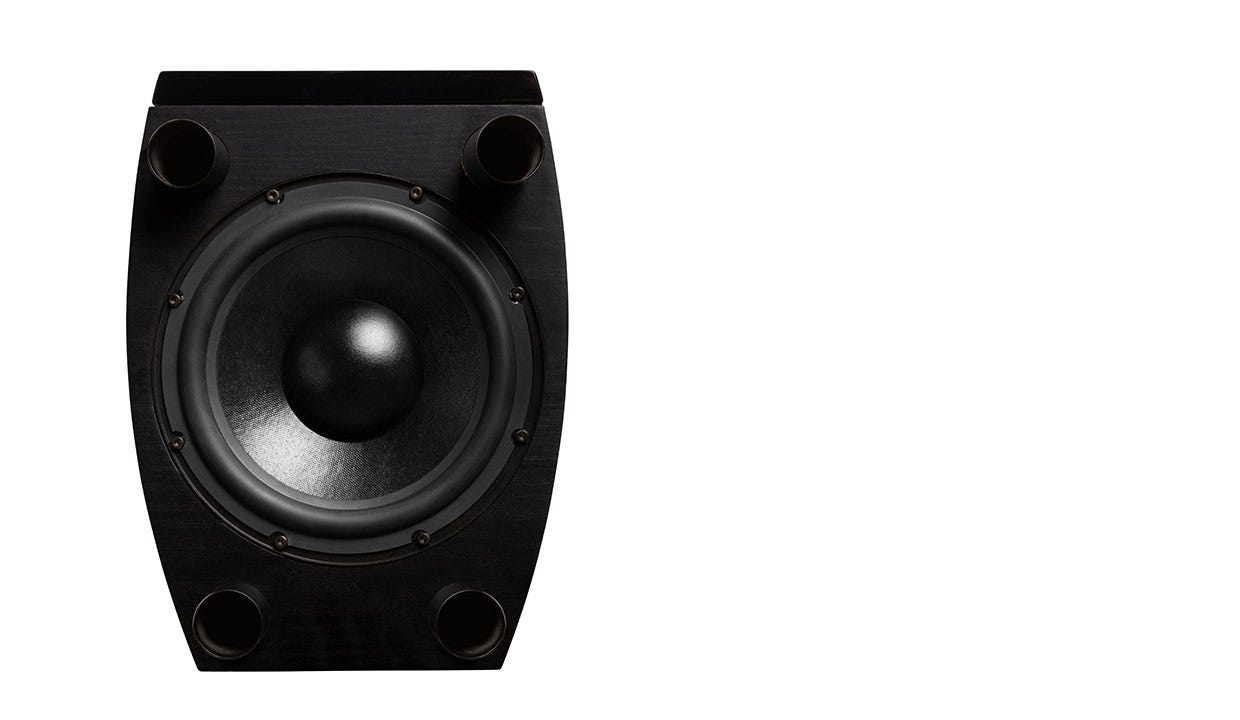

Exquisite Bass Performance

EXQUISITE BASS PERFORMANCE

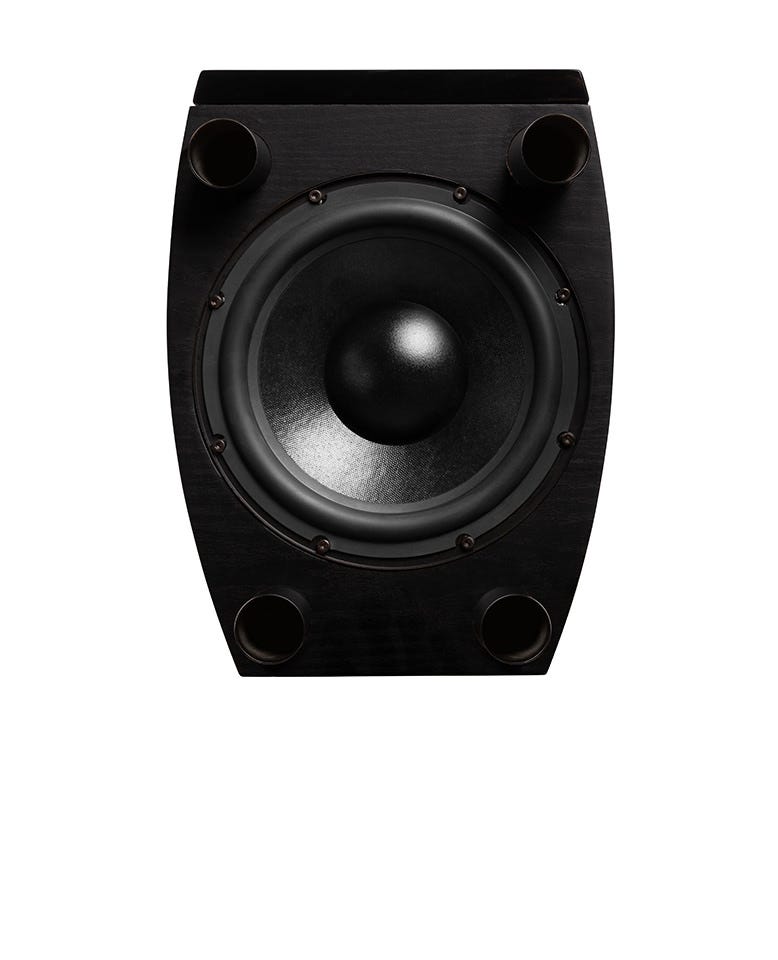

Unique down-firing 8” subwoofers produce exceptionally deep and undistorted low frequency response while maintaining a minimalist footprint

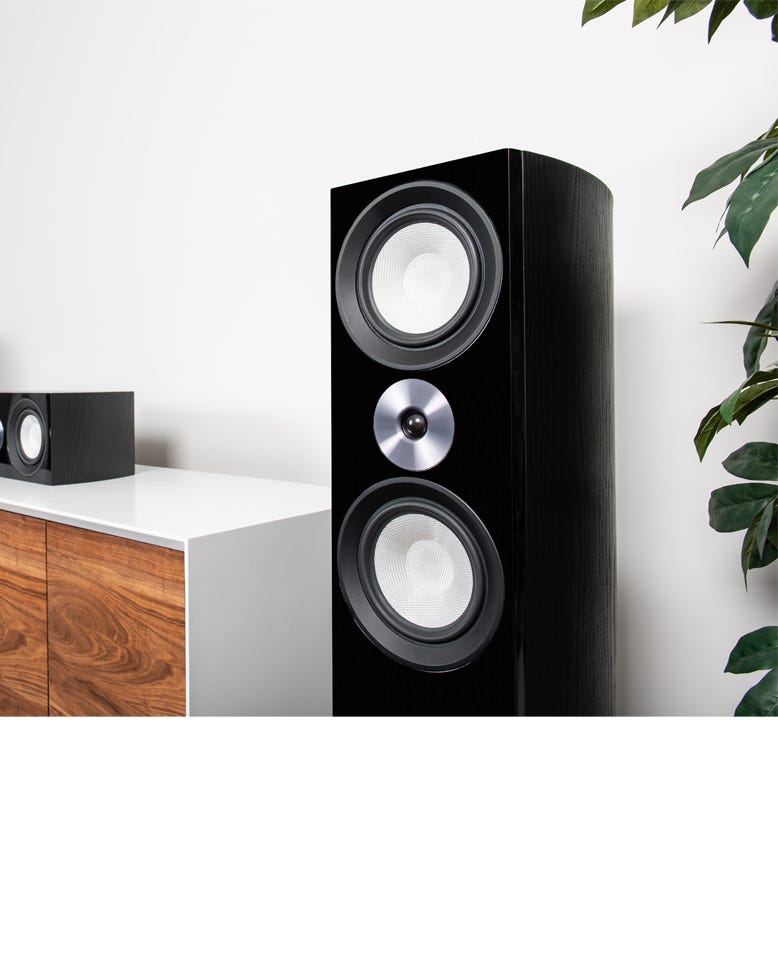

Rich and Detailed Midrange

RICH AND DETAILED MIDRANGE

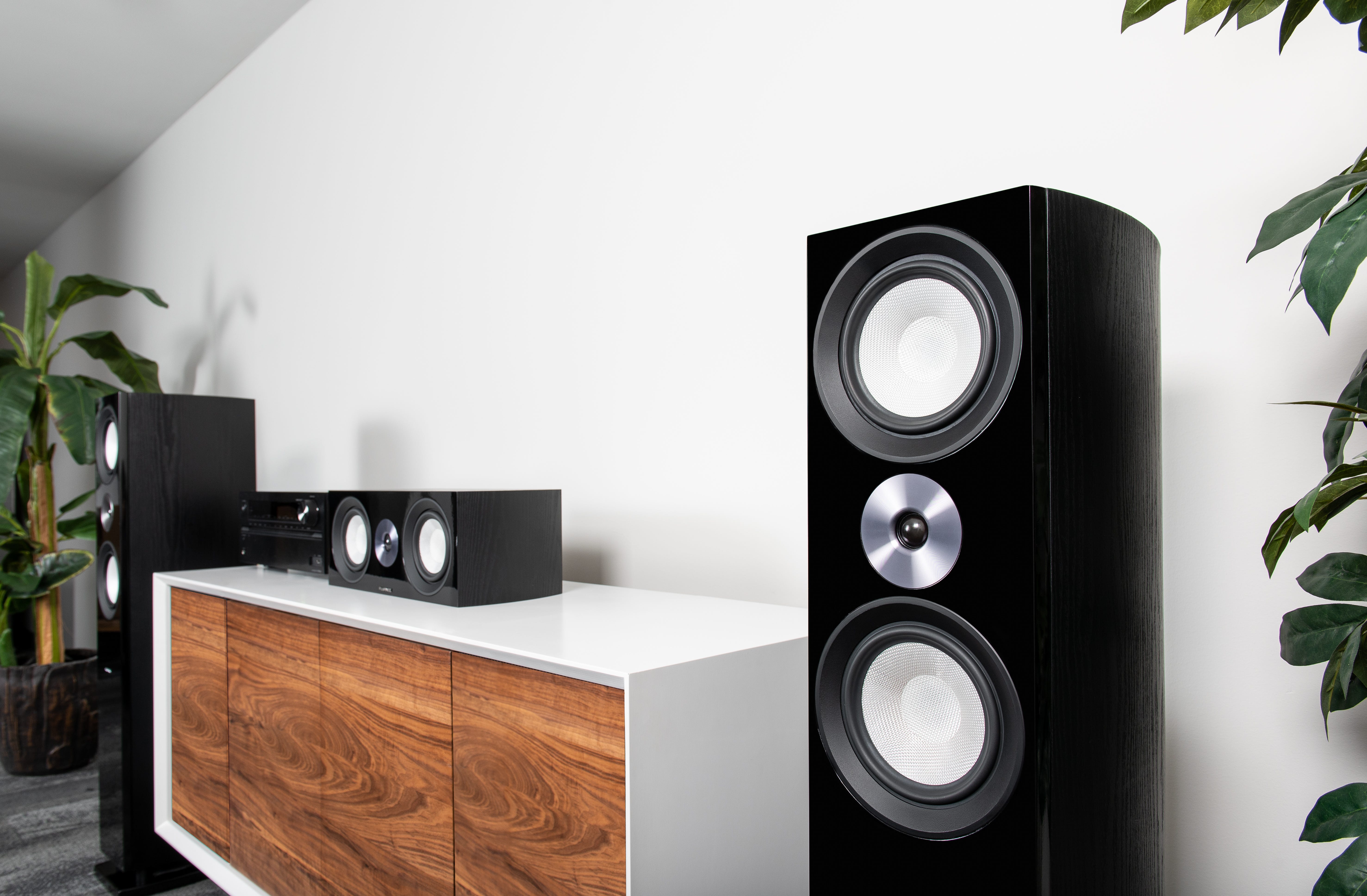

Woven fiber drivers provide vibrational damping and optimal linear movement resulting in a faithful reproduction of the original recording

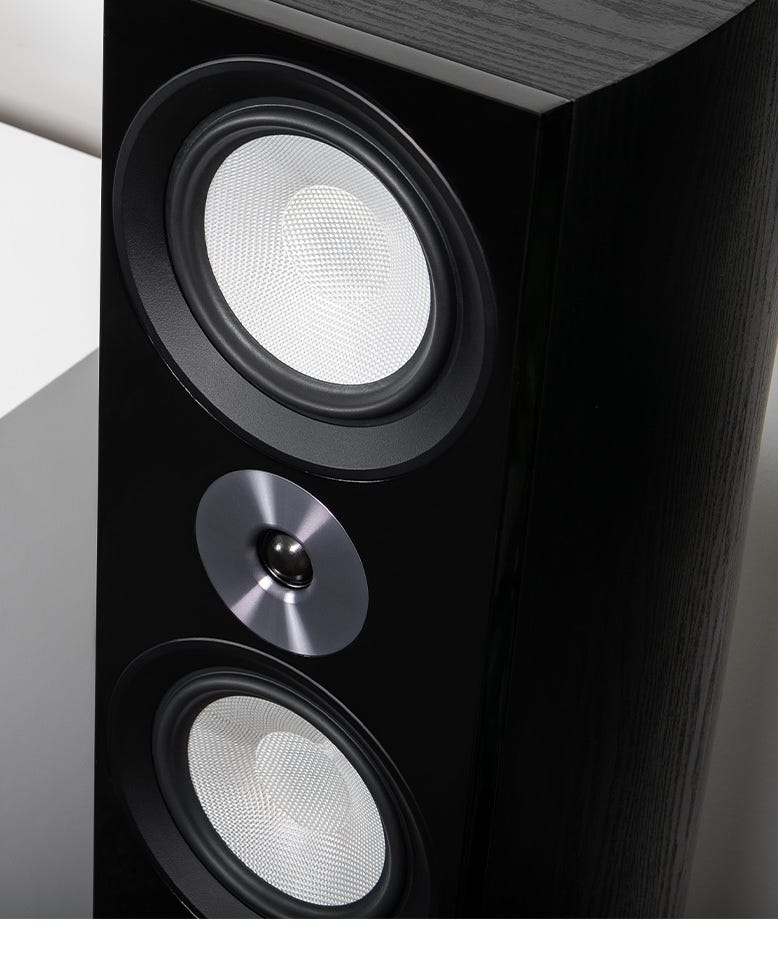

Captivating Clarity in the High Frequencies

CAPTIVATING CLARITY IN THE HIGH FREQUENCIES

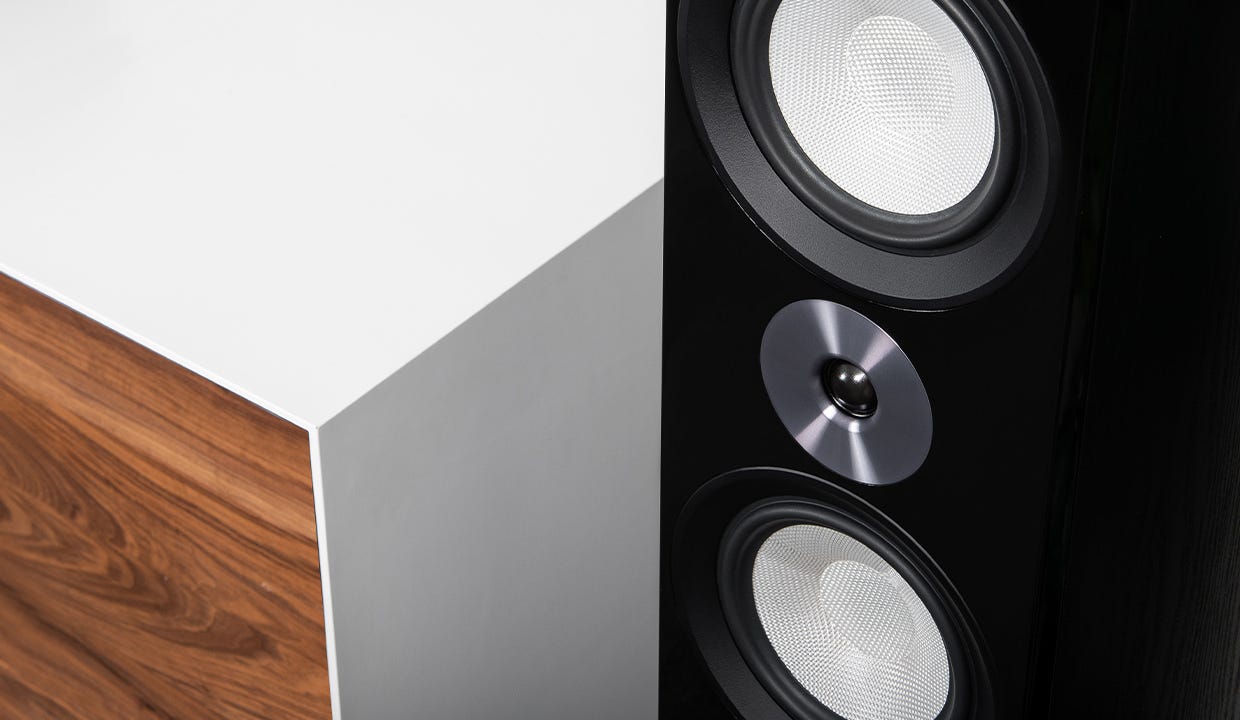

Silk dome tweeters produce crisp, natural highs while providing spacious off axis dispersion making every spot the sweet spot

 Superior Cabinet Engineering

SUPERIOR CABINET ENGINEERING

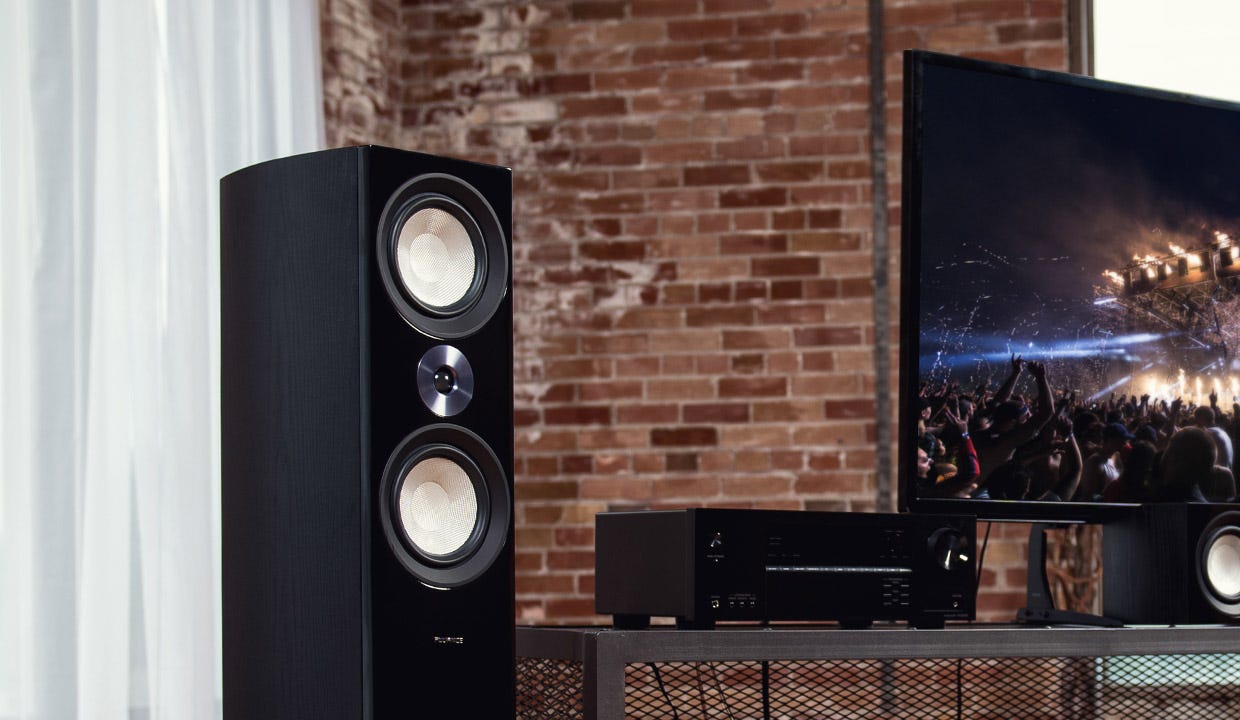

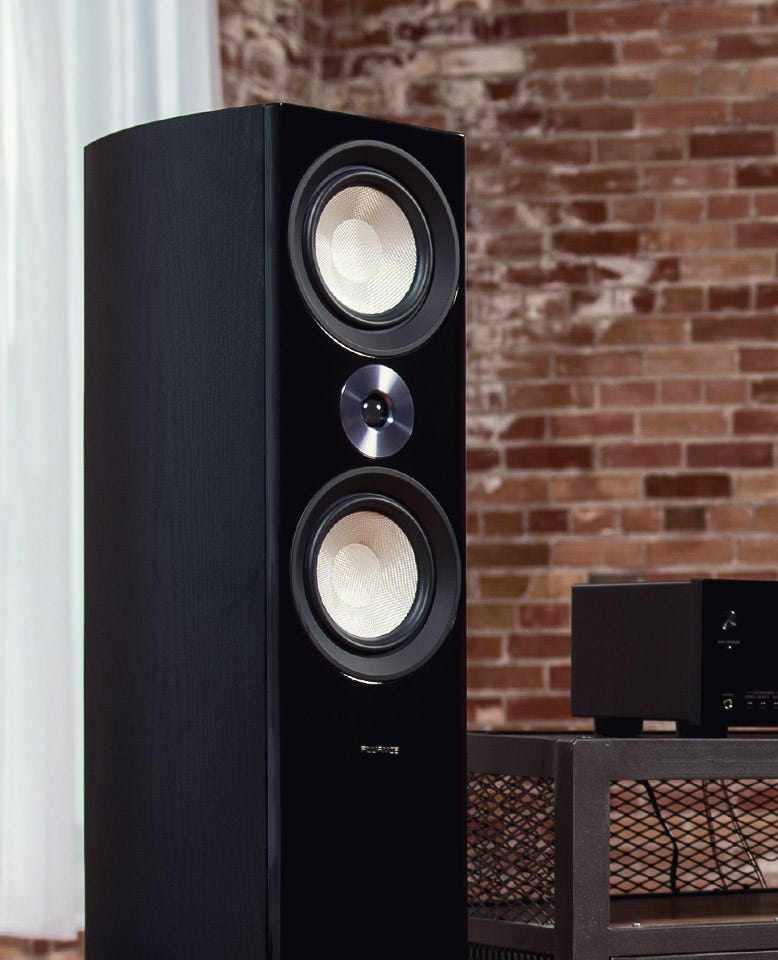

Meticulously designed enclosure with rigid internal bracing to avoid unwanted resonance and dual rear ports for controlled low-frequency response

Place Order
Learn More
Clicking this button will redirect you to the official website to make the purchase

Specifications

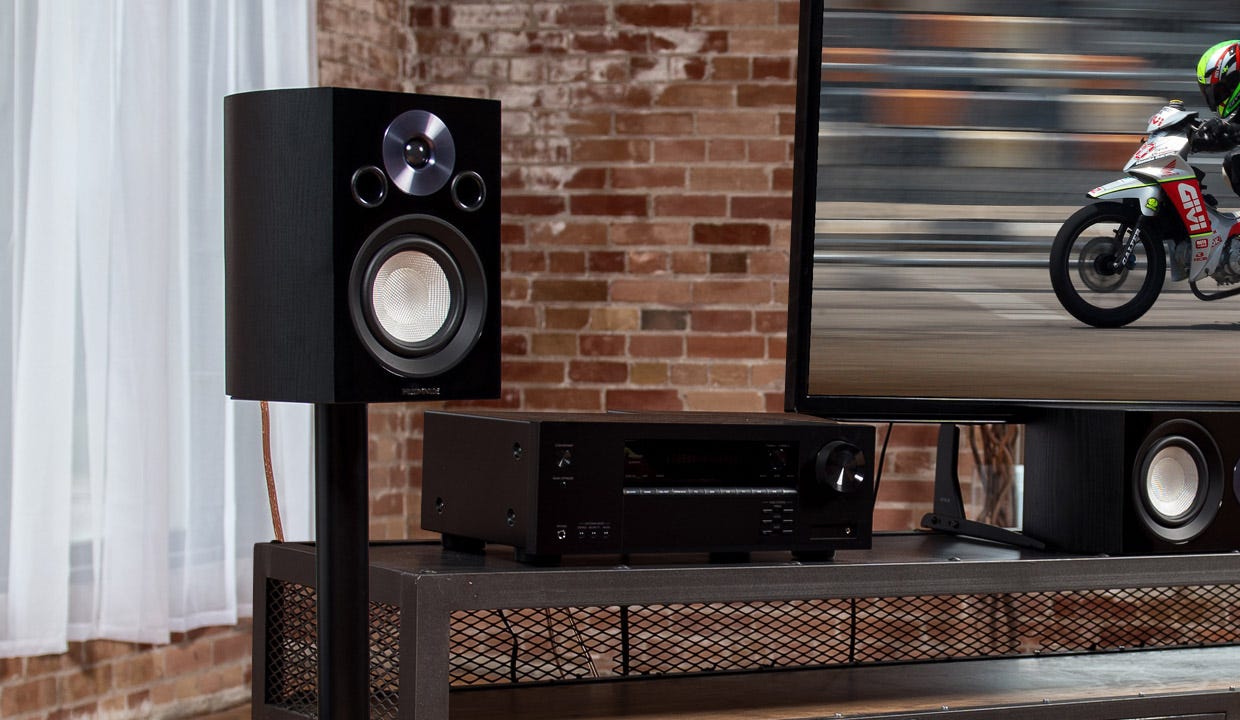

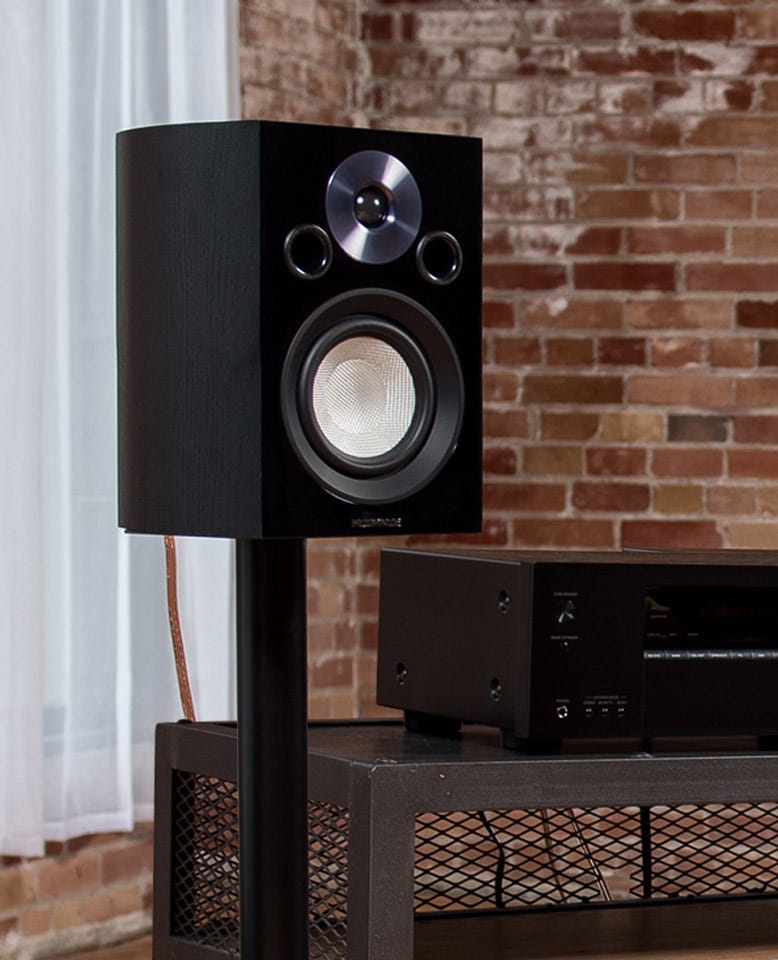

Reference High Performance 2-Way Bookshelf and Surround Speakers

Specifications
Series REFERENCE
Speaker Type Bookshelf
Speaker Configuration 2 Way - 2 Driver Passive Surround Speakers (Wall Mountable)
Enclosure Vented Bass-reflex Design
Tweeter 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled
Woofer 5.25 Inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds
Power Handling 40 - 80 Watts RMS
Frequency Response 50 Hz - 20 KHz
Sensitivity 85 dB @ 1 W / 1 m
Crossover Frequency 3100 Hz Phase Coherent - PCB Mounted Circuitry
Impedance 8 Ohm Compatible
Dolby Atmos Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound
Dimensions 11.4 x 8.1 x 9.0 inches / 29 x 20.6 x 22.9 cm (HxWxD)
Weight 11.35 pounds/speaker (5.15 kg/speaker)
Frequency Response Graph

Click to Expand

XL8S Frequency Response Graph

How to Read an SPL Graph

Fluance Speaker Size Comparison Chart

Click to Expand

Fluance Size Comparison Chart

Certifications CE Certified
UPC 061783269732

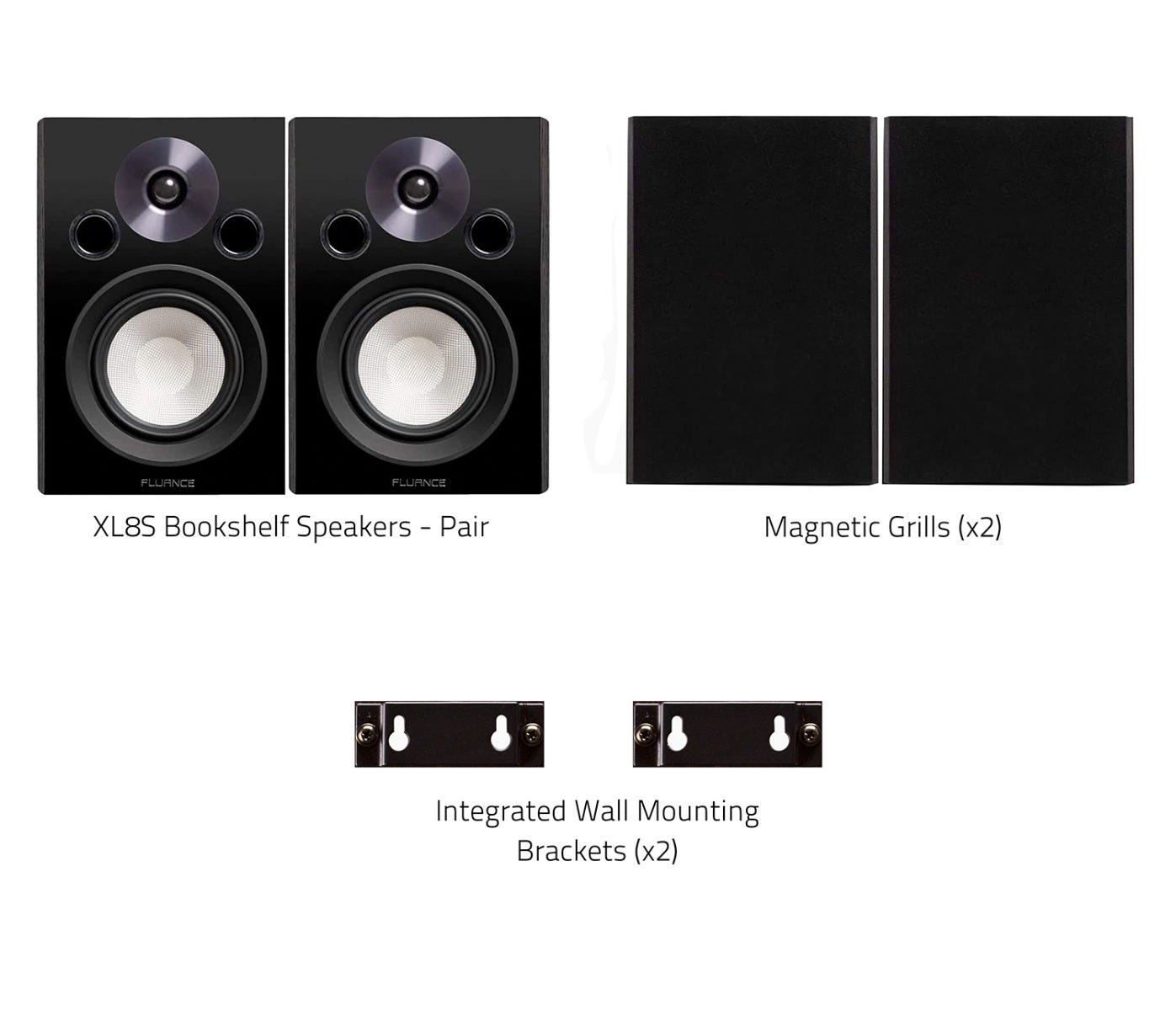

What's Included
  • Two Bookshelf Surround Sound Speakers with Integrated Wall Mounting Brackets (keyhole slots)
  • Two Magnetic Front Grills
  • Instruction Manual
  • Lifetime Customer Support
  • Lifetime Parts and Labor Manufacturer's Direct Warranty

Reference High Performance 3-Way Floorstanding Loudspeakers

Specifications
Series REFERENCE
Speaker Type Floorstanding
Speaker Configuration 3 Way - 4 Driver Floorstanding Main Speakers (pair)
Enclosure Tuned Rear Dual Port Bass Reflex Tower Design Dampened
Tweeter 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled
Midrange Dual 6.5 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds
Woofer Isolated Down-firing 8 inch Polymer Treated High Excursion Driver with Butyl Rubber Surround
Power Handling 80 - 160 Watts RMS
Frequency Response 35Hz - 25KHz
Sensitivity 87dB @ 1W / 1m
Crossover Frequency 100/3000 Hz Phase Coherent - PCB Mounted Circuitry
Impedance 8 Ohm Compatible
Dolby Atmos Ideal for use as front speakers in a Dolby Atmos Surround Sound System
Dimensions 45.86 x 9.25 x 12.99 inches / 116.5 x 23.5 x 33 cm (HxWxD)
Weight 47.70 pounds/speaker (21.64 kg/speaker)

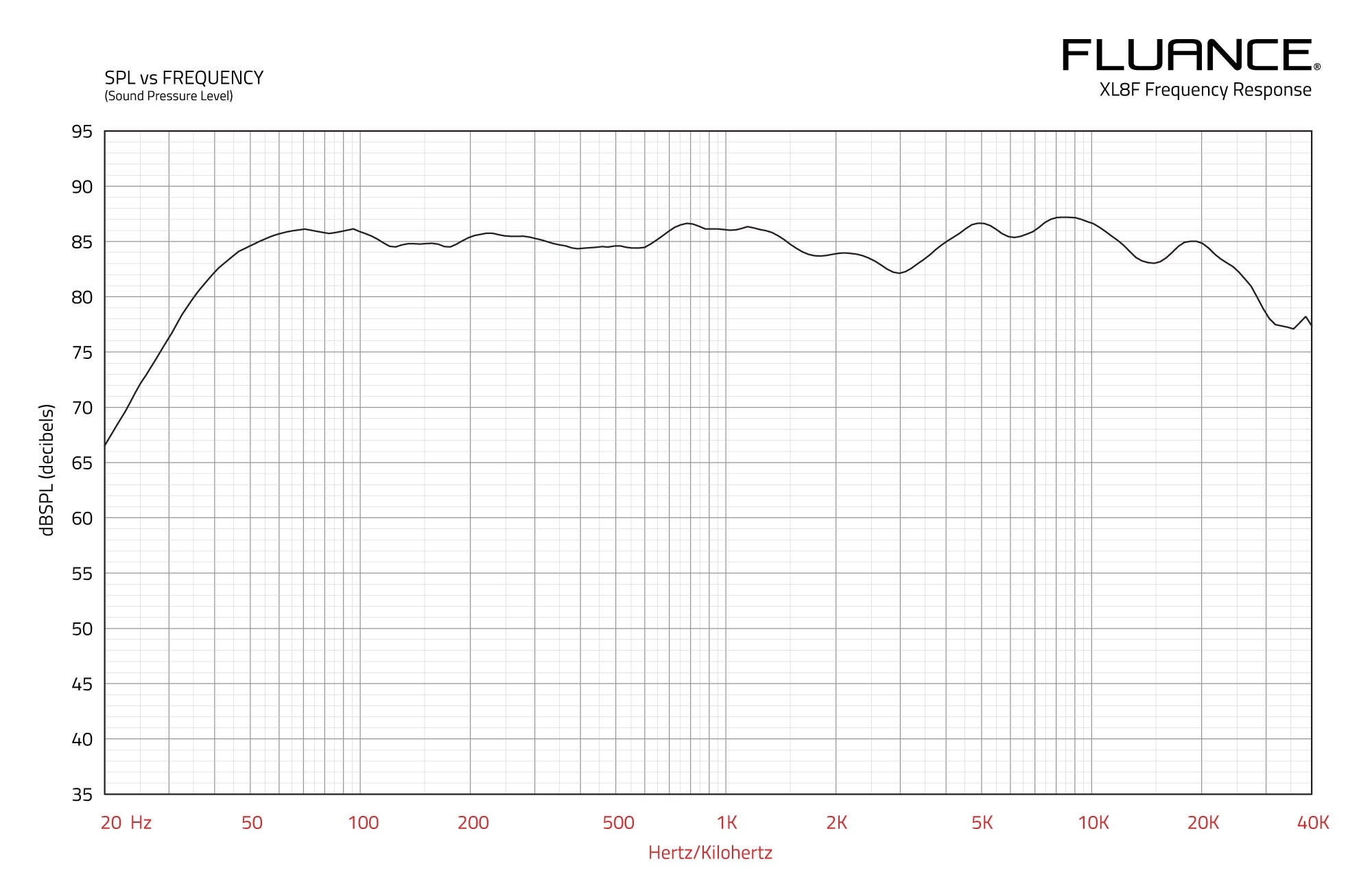

Frequency Response Graph

Click to Expand

XL8F Frequency Response Graph

How to Read an SPL Graph

Fluance Speaker Size Comparison Chart

Click to Expand

Fluance Size Comparison Chart

Certifications CE Certified
UPC 61783269787

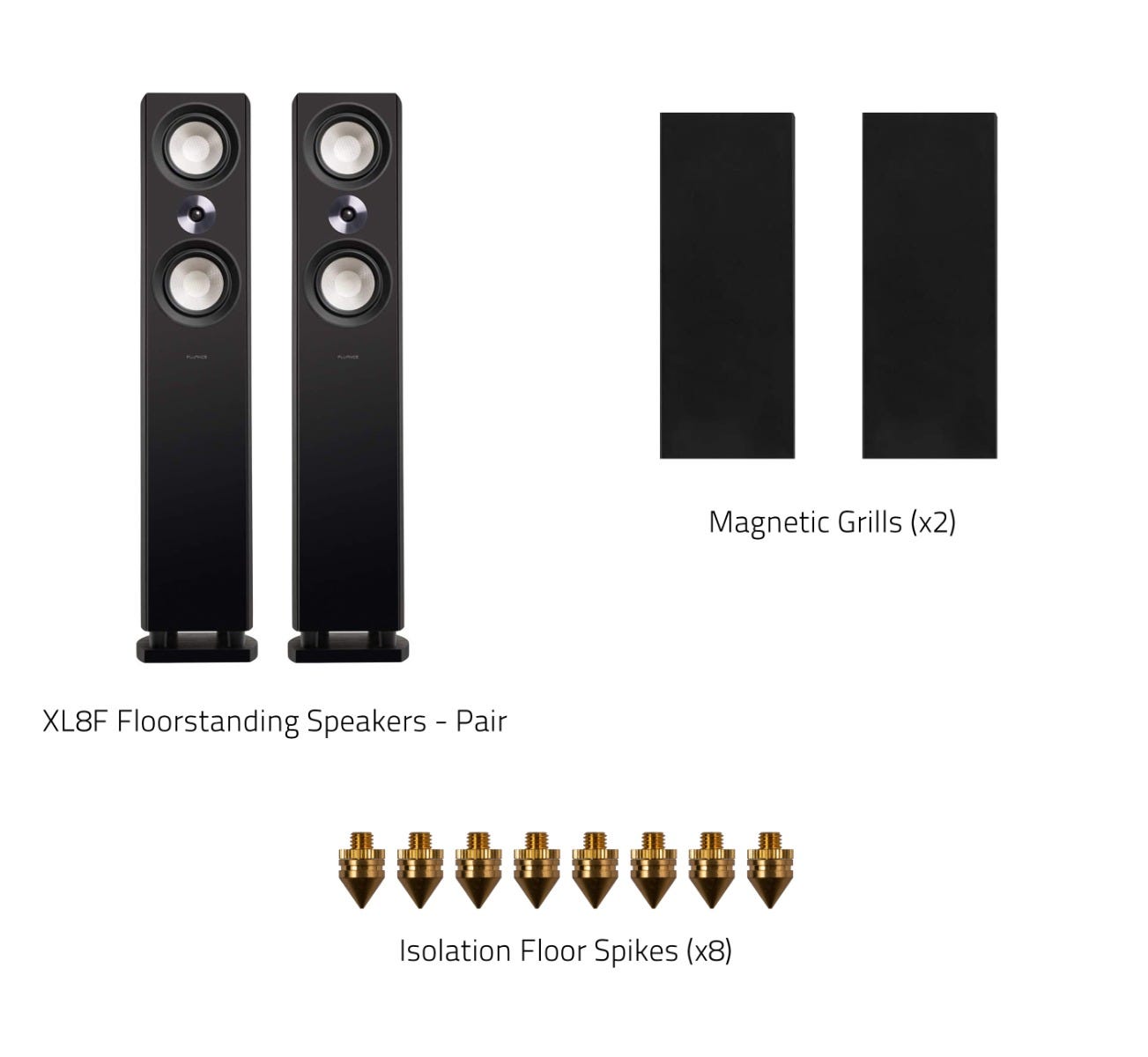

What's Included
  • Two High Performance Floorstanding Speakers
  • Eight Isolation Floor Spikes
  • Two Magnetic Front Grills
  • Instruction Manual
  • Lifetime Customer Support
  • Lifetime Parts and Labor Manufacturer's Direct Warranty

Reference High Performance 2-Way Center Channel Speaker

Specifications
Series REFERENCE
Speaker Configuration 2 Way - 3 Driver Center Channel
Enclosure Acoustic Suspension Design
Tweeter 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled
Woofer Dual 5.25 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds
Power Handling 50 - 100 Watts RMS
Frequency Response 110Hz - 20KHz
Sensitivity 86dB @ 1W / 1m
Crossover Frequency 3000 Hz Phase Coherent - PCB Mounted Circuitry
Impedance 8 Ohm Compatible
Dolby Atmos Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound
Dimensions 6.9 X 9.0 X 18.5 inches / 17.53 x 22.86 x 46.99 cm (HxWxD)
Weight 15 pounds (6.8 kg)
Frequency Response Graph

Click to Expand

XL8C Frequency Response Graph

How to Read an SPL Graph

Fluance Speaker Size Comparison Chart

Click to Expand

Fluance Size Comparison Chart

Certifications CE Certified
UPC 061783269718

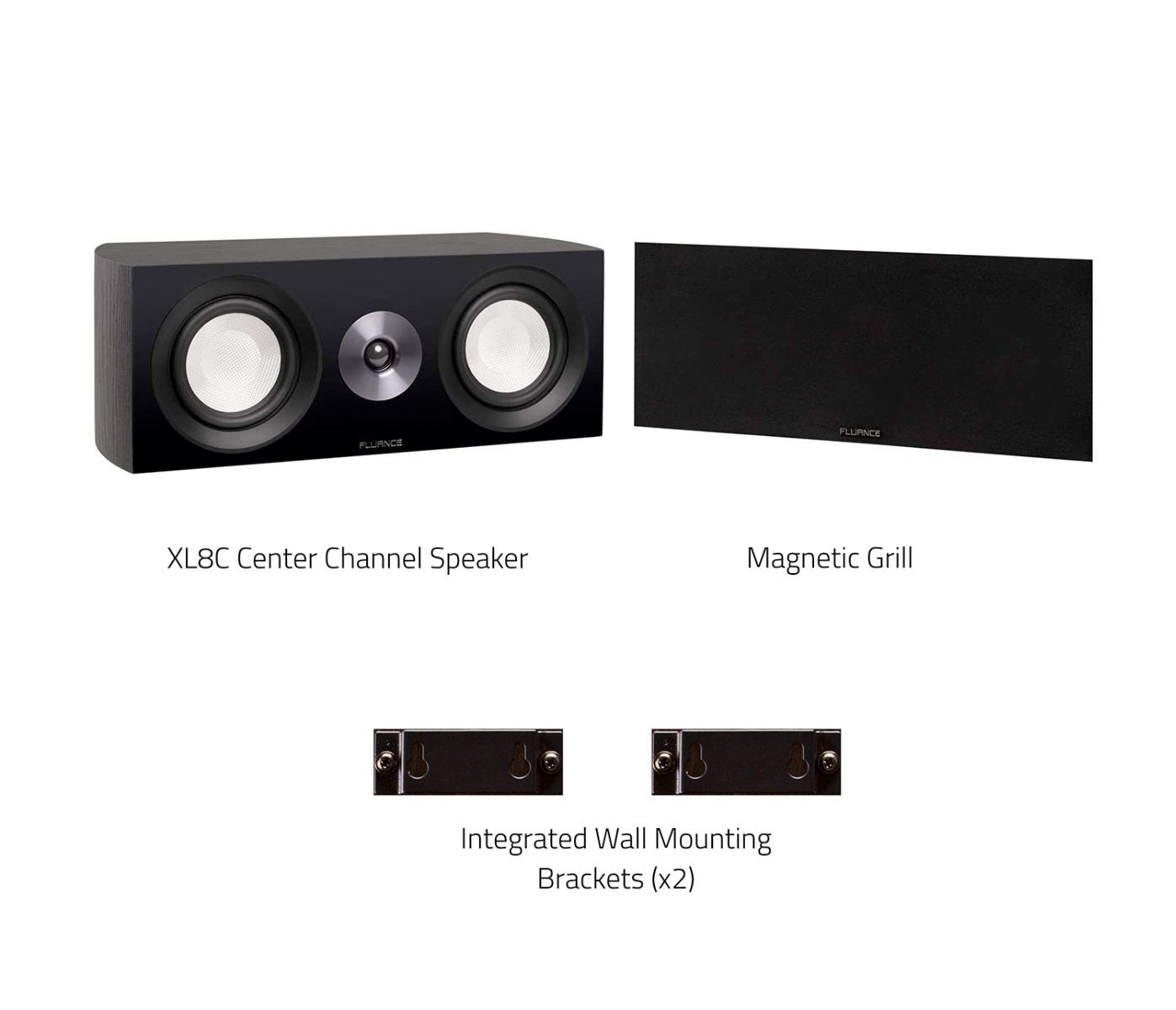

What's Included
  • Center Channel Speakers with Integrated Wall Mounting Brackets (keyhole slots)
  • Instruction Manual
  • Lifetime Customer Support
  • Lifetime Parts and Labor Manufacturer's Direct Warranty

What's Included

Write Your Own Review
You're reviewing:Reference Surround Sound Home Theater 5.0 Channel Speaker System
Your Rating

Guides

Take a comprehensive look at the set up, function, and maintenance of your product. The product manual details all of its specifications and how to care for your product.

Frequently Asked Questions

What is different from the XL7 Reference Speakers?


While they follow the same form factor, the XL8 Reference Series feature improved components such as woven glass fiber composite drivers. We've also redesigned the crossover, drivers and cabinet to improve the overall performance of the entire series.
