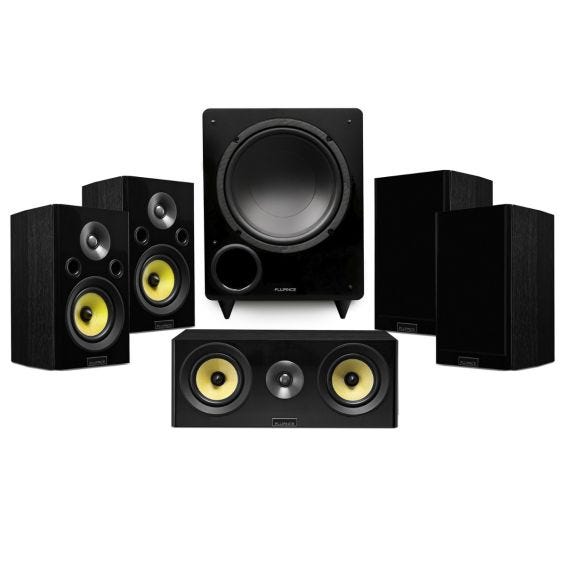

Signature HiFi Compact Surround Sound Home Theater 5.1 Channel Speaker System
Black Ash (HF51BC)
Color: Black Ash
No. Audio Channels:
Signature Series Hi-Fi 5.1 Home Theater Speaker System
The Signature Series Compact 5.1 Surround Sound System is designed to encapsulate you with every sound the way the artist intended. This complete home theater system includes two-way bookshelf speakers delivering full range sound, a center channel speaker to accentuate crisp vocals, rear surrounds speakers for a multi-directional home theater experience, and a powerful 10” subwoofer to reproduce ultra low frequencies for an immersive cinematic and music experience that is not just heard, but felt throughout your entire body.
Focus on Sound Excellence
The Signature Series is a powerhouse in home audio. From the powerful woofers, to the ultra-high end tweeters, to the premium midrange drivers, this speaker system is the result of years of meticulous engineering. With a focus on sound excellence, every detail has been measured, tested, and perfected to recreate even the finest audio details with crystal clear accuracy.
As Powerful as Tower Speakers
Not your typical surrounds, these speakers can also be utilized as bookshelf speakers or fronts. They provide superior performance at every volume level with outstanding precision and clarity, allowing you to soak up all the dramatic impact your movies and music can deliver.
Midrange that Accentuates the Vocals
The Signature Series midrange drivers are woven with light weight yet rigid glass fiber for optimal linear movement to handle even the highest volume levels and still ensure sonic precision and clarity. The unique pointed dome allows sound waves to travel directly from the center of the cone for an enhanced soundstage. This guarantees every movie is heard the way the sound producers intended.
Tweeters Heighten Every Fine Detail
The Signature Series ultra-high end Neodymium tweeters produce high frequencies with captivating clarity and spacious imaging. A true three dimensional soundstage is achieved by using the same tweeter in all five speakers resulting in an equivalent tone from every direction. Controlled, smooth and never too aggressive, these tweeters will deliver the movie’s finest details.
Serious Cabinet Engineering
The cabinets are precision crafted with engineered MDF wood to create a warm, distortion-free sound.System Includes: HFC, HFS x 2, DB10
Premium Features
- Timbre matched five speaker system for home theater and home audio applications
- Butyl rubber surrounds suppress unwanted cone resonances, ensuring durability and performance reliability
- Ferro-fluid cooled tweeters for longer life
- Tuned bass ports reflex cabinet designed for improved efficiency and controlled low-frequency response
- 18 gauge internal lead wire to reduce signal degradation
- Magnetic grills detach to reveal a smooth finish with no visible fasteners
- Low diffraction grills for spacious imaging
- Built-in keyhole slot wall mount hardware (Center & Surrounds)
Specifications
Signature HiFi 2-Way Bookshelf Surround Sound Speakers
| Series | SIGNATURE |
|---|---|
| Speaker Type | Bookshelf |
| Speaker Configuration | 2 Way - 2 Driver Passive Surround Speaker (Wall Mountable) |
| Enclosure | Dual Tuned Front Port Bass Reflex Design |
| Tweeter | 1 Inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Woofer | 5 Inch Glass Fiber Treated Butyl Rubber Surrounds |
| Amplifier Power | N/A (Passive Speaker – External Amplifier Required) |
| Power Handling | 30 - 120 Watts |
| Frequency Response | 60Hz - 20KHz |
| Sensitivity | 85dB @ 2.83V / 1m |
| Crossover Frequency | 2300Hz Phase Coherent |
| Impedance | 8 Ohm Compatible |
| Dolby Atmos | Ideal for use as surround sound speakers in a Dolby Atmos™ Surround Sound System |
| Dimensions | 12.8 x 7.87 x 8.22 inches / 32.5 x 20.0 x 20.9 cm (HxWxD) |
| Weight | 9.7 lbs/speaker |
| Frequency Response Graph | Click to Expand |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | CE Certified, RoHS |
| UPC | 061783263532 |
| What's Included |
DB10 10-inch Low Frequency Ported Front Firing Powered Subwoofer
| Speaker Configuration | Front Firing Powered Subwoofer with Integrated Amplifier |
|---|---|
| Enclosure | Front Firing Tuned Bass Reflex Vented Port |
| Low-Frequency Driver | 10 Inch Polypropylene with Rubber Surround |
| Amplifier Power | Peak 120W / RMS 45W |
| Audio Inputs | LFE/Low Level Input & High Level Input/Speaker Levels |
| Low-Pass Crossover | 40Hz – 180Hz |
| Frequency Response | 38Hz – 180Hz (±3dB) Full Range Anechoic Measurement 35Hz – 180Hz (±6dB) Full Range Anechoic Measurement |
| Phase Adjustment | YES |
| Auto Function | Yes – (100Hz signal input reach 3mV, 1KHz input 5mV) |
| Gain Control | No |
| Power Input | 120V (60Hz) |
| Dimensions | 16 x 11.9 x 15.7 inches / 40.6 x 30.2 x 39.9 cm (HxWxD) |
| Weight | 24.7 pounds |
| Fluance Speaker Size Comparison Chart |
|
| UPC | 061783265161 |
| What's Included |
Signature HiFi 2-Way Center Channel Speaker
| Series | SIGNATURE |
|---|---|
| Speaker Configuration | 2 Way - 3 Driver Passive Center Speaker (Wall Mountable) |
| Enclosure | Dual Tuned Rear Port Bass Reflex Design |
| Tweeter | 1 Inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Woofer | Dual 5 Inch Glass Fiber Treated Butyl Rubber Surrounds |
| Amplifier Power | N/A (Passive Speaker – External Amplifier Required) |
| Power Handling | 40 - 120 Watts RMS |
| Frequency Response | 60Hz - 20KHz |
| Sensitivity | 92dB @ 2.83V / 1m |
| Crossover Frequency | 2300 Hz Phase Coherent |
| Impedance | 8 Ohm Compatible |
| Dolby Atmos | Ideal for use as surround sound speakers in a Dolby Atmos™ Surround Sound System |
| Dimensions | 7.3 x 18.9 x 10.6 inches / 18.5 x 48 x 26.9 cm (HxWxD) |
| Weight | 16.3 lbs/speaker |
| Frequency Response Graph | Click to Expand |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | CE Certified, RoHS |
| UPC | 061783263549 |
| What's Included |
What's Included
Videos
Guides
Take a comprehensive look at the set up, function, and maintenance of your product. The product manual details all of its specifications and how to care for your product.
