WS55 Wireless HD Video Transmitter & Receiver
| Weight | 1.3 pounds |
|---|---|
| Supported Video Resolution | 1080p, 1080i, 720p, 576p, 480p (will support 4K content that has been downscaled to 1080p by source device) |
| 3D COMPATIBLE | Yes |
| Audio Formats Supported | PCM 2CH, Dolby 5.1 |
| Ports & Interfaces | Transmitter: HDMI input, HDMI Loop Through (Output), Micro USB (for power), 2.5mm Jack (for IR Emitter) Receiver: HDMI Output, Micro USB (for power), 3.5mm Jack (for IR Emitter) |
| Wireless Range | 40ft (streaming line of sight results in maximum range) |
| Transmission Frequency | 802.11 a,b,g,n ; 5.8GHz (Band 1 & 4) |
| System Latency | < 500ms (average 150ms) |
| Remote Control IR Frequency | 30-60KHz |
| Antenna | High Performance Internal Antennas |
| Wireless Technology | WS Technology |
| Environmental Requirements | Recommended to keep a distance of 1.5m from other wireless products Operating temperature: 0° to 40° C, Storage temperature -10 ℃ ~ +55° C, Relative humidity: 15 ~ 80% RH |
| Source Compatibility | Any source containing an HDMI output port. |
| Display Compatibility | Any high-definition television or projector with HDMI input including popular models from these manufacturers: Samsung, Sony, Sharp, Vizio, Hitachi, JVC, LG, Mitsubishi, Panasonic, Toshiba etc. |
| Wall Mountable | Yes, Transmitter/Receiver have built-in keyhole slots |
| Remote Control | No |
| Power Supply | Receiver: 100-240VAC/50-60Hz (Wall Adapter) Transmitter: USB |
| Power Output (at 10% THD) | Receiver: 5VDC, 1A Transmitter: 5VDC, 1A |
| Transmitter Dimensions | 3.4 x 3.3 x 0.9 inches / 87.5 x 83.5 x 25.0 mm (LxWxH) |
| Multiple Transmitters | No |
| Receiver Dimensions | 3.4 x 3.3 x 0.9 inches / 87.5 x 83.5 x 25 mm (LxWxH) |
| Multiple Receivers | Yes, Maximum of 4 |
| Multiple Receivers | Yes |
| Adapter Compatibility | Nyrius does not recommend using Digital to Analog Adapters with our WS55 Products, however HDMI to miniHDMI/microHDMI adapters are compatible |
| Bandwidth | 20MHz/40MHz |
| TX/RX Channel | 1 TX / 4 RX |
| Certifications | FCC, ICES, ETL |
| UPC | 061783268421 |

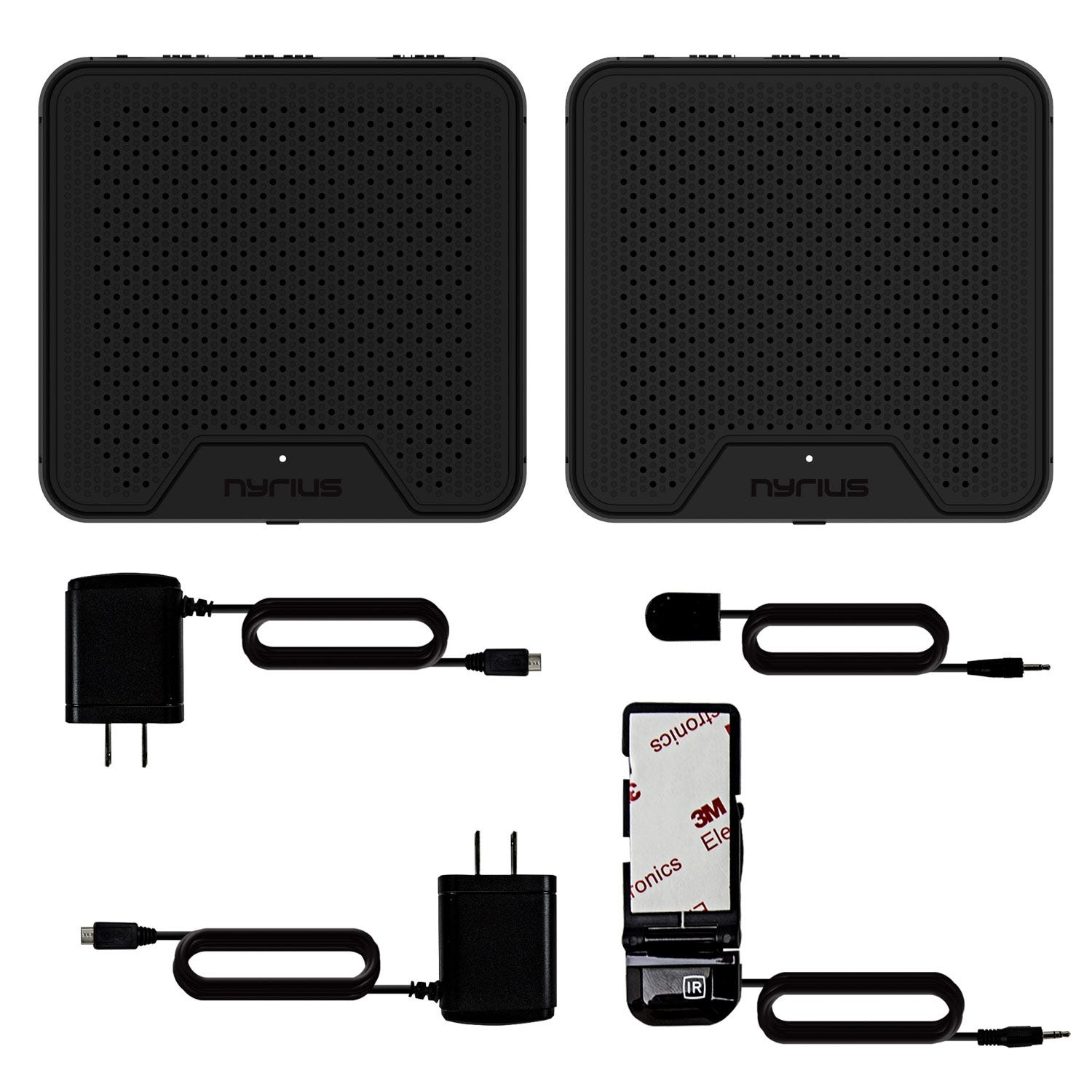

| What's Included |

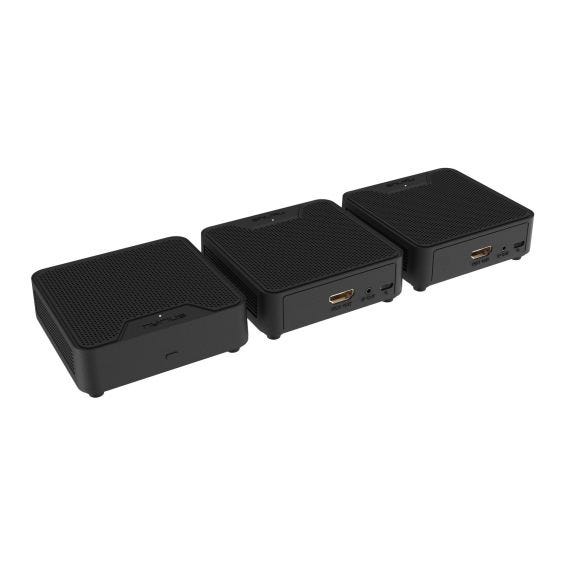

Additional Receiver Only for Nyrius WS55 Wireless Audio/Video System (Sold Separately) -Transmitter not included
| Supported Video Resolution | 1080p, 1080i, 720p, 576p, 480p (will support 4K content that has been downscaled to 1080p by source device) |
|---|---|
| 3D COMPATIBLE | Yes |
| Audio Formats Supported | PCM 2CH, Dolby 5.1 |
| Ports & Interfaces | HDMI Output, Micro USB (for power), 3.5mm Jack (for IR Receiver) |
| Wireless Range | 40ft (clear line of sight) |
| Transmission Frequency | 802.11 a,b,g,n ; 5.8GHz (Band 1 & 4) |
| System Latency | <500ms (average 150ms) |
| Remote Control IR Frequency | 30-60KHz |
| Antenna | High Performance Internal Antennas |
| Wireless Technology | WS Technology |
| Environmental Requirements | Recommended to keep a distance of 1.5m from other wireless products Operating temperature: 0° to 40° C, Storage temperature -10 ℃ ~ +55° C, Relative humidity: 15 ~ 80% RH |
| Display Compatibility | Any high-definition television or projector with HDMI input including popular models from these manufacturers: Samsung, Sony, Sharp, Vizio, Hitachi, JVC, LG, Mitsubishi, Panasonic, Toshiba etc. |
| Wall Mountable | Yes, Receiver has built-in keyhole slots |
| Remote Control | No |
| Power Supply | 100-240VAC/50-60Hz (Wall Adapter) |
| Power Output (at 10% THD) | 5VDC, 1A |
| Multiple Transmitters | No |
| Receiver Dimensions | 3.4 x 3.3 x 0.9 inches / 87.5 x 83.5 x 25 mm (LxWxH) |
| Multiple Receivers | Yes |
| Bandwidth | 20MHz/40MHz |
| Certifications | FCC, ICES, ETL |
| UPC | 061783268438 |
| What's Included |
Customer Reviews
-
Amazed. Works as intended. Purchased 1 transmitter and 2 receivers as a test on my parents home. Works perfectly through walls. Will be purchasing more of these for my own home.
-
Does not work!!Transmitter 10 feet away from the receiver and it does now work !Signal is off and on don't waste your money!
-
I am using 2 receivers in my house at 20 feet from transmitter.
Using from cablebox to uhd tv's . The audio drops off frequently and I can't find support for this issue. -
Works great in my 42ft motorhome. I hooked up 3 TVs and receivers.
-
Love the idea of wireless, but only giving 4 due to performance. Bought two receivers. Close one works perfectly every time, but one further away (close to max 40’ range) barely works. Still playing with placement of transmitter and receiver for farther tv, but wish the process was plug and play for both receivers and stronger signal. If only needed for short range, you will not be disappointed.
-
Your ORION Home Wireless HD Video Transmitter & Two Receivers product needs antenna extender options on all three units. I installed the Orion two receivers in my motorhome which is obstructed by wood and frame of motorhome. Both rear and outside televisions have very good picture quality. But will not connect sometimes or loses connection. This product is made for a 40ft (streaming line of sight results in maximum range). I needed two receivers for my motorhome to avoid tearing my motorhome up installing HDMI cables. The two receiver Orion would work great if they had an increased broadcast ability. The latency is not too bad but enough that you must mute one television to control echo. I really liked the size of the units
