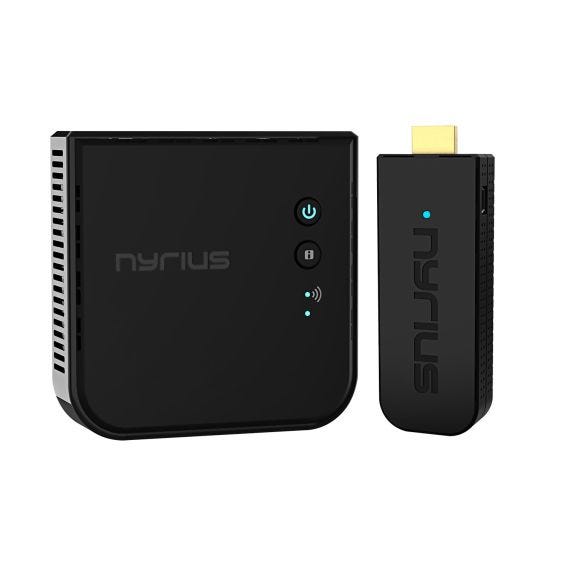

ARIES Pro+ Wireless HD Video Transmitter & Receiver


COMPLETE WIRELESS VIDEO FREEDOM
View 1080p movies, TV shows, online video wirelessly from your laptop, PC, Drone, DSLR Camera to HDTV, projector, monitor or conference room display

HIGH PERFORMANCE WIRELESS STREAMING
Powerful long-range signal transmits through walls, floors and ceilings up to 165ft away (streaming line of sight results in maximum range)

PURE UNCOMPRESSED HD VIDEO
Send crystal clear, uncompressed HD video & digital audio with ease. Signal experiences zero latency (real time)

PLUG AND PLAY SETUP
Easy to install without needing to install expensive, inconvenient cables. No software or WiFi connection required. Transmitter: 1x HDMI input, Receiver: 1x HDMI output

COMPACT TRANSMITTER DESIGN
Optimized for laptops, UAV Drones and streaming live camera footage and any other HDMI source to a monitor or screen; powered by USB
Overview
Specifications

Supported Video Resolution | TV: 1080p, 1080i,720p, 576p, 480p PC : 1024x768, 1280x1024, 640x480, 800x600 (Not 4K) |
---|---|
3D COMPATIBLE | Yes |
Audio Formats Supported | Uncompressed 7.1 PCM , DTS , Dolby Digital Surround Sound |
Video Formats Supported | TV: 1080p, 1080i,720p, 576p, 480p PC : 1024x768, 1280x1024, 640x480, 800x600 |
Ports & Interfaces | HDMI, Mini-USB (Power only) |
Wireless Range | 165 ft (streaming line of sight results in maximum range) |
Transmission Frequency | Transmission Frequency 4.9~ 5.9GHz with Dynamic Frequency Selecting (DFS) |
System Latency | ≤1 ms |
Loop-through | No |
Wireless Technology | ARIES Technology |
Environmental Requirements | Operating temperature: 0° to 40° C, Storage temperature -10 ℃ ~ +55° C, Relative humidity: 15 ~ 80% RH |
Source Compatibility | Any high-definition television including 3D TVs containing an HDMI port, including popular models from these manufacturers: Hitachi, JVC, LG, Mitsubishi, NEC, Panasonic, Philips, Pioneer, Samsung, Sony, Sharp, Toshiba, Vizio, Westinghouse |
Remote Control | No |
Power Supply | Receiver: 100-240VAC/50-60Hz (Wall Adapter) Transmitter: USB |
Power Output (at 10% THD) | Receiver: 5VDC, 2A Transmitter: 5VDC, 1.5A |
Transmitter Dimensions | 3.4 x 1.3 x 0.63 inches / 86.4 x 33 x 16 mm (LxWxH) |
Multiple Transmitters | No |
Receiver Dimensions | 3.7 x 3.8 x 1.1 inches / 94.0 x 20.3 x 27.9 mm (LxWxH) |
Multiple Receivers | No |
Adapter Compatibility | Nyrius does not recommend using Digital to Analog Adapters with our ARIES Products, however HDMI to miniHDMI/microHDMI adapters are compatible |
System Requirements | Any laptop or desktop system containing an HDMI port including popular models from these manufacturers: Alienware, Asus, Lenovo, Dell, HP, Acer, Apple (Display Port cable not included) |
Standard Protocol | HDMI 1.3, HDCP 1.2 |
Bandwidth | 40Mhz |
TX/RX Channel | 1 RX / 1 TX |
UPC | 061783270349 |

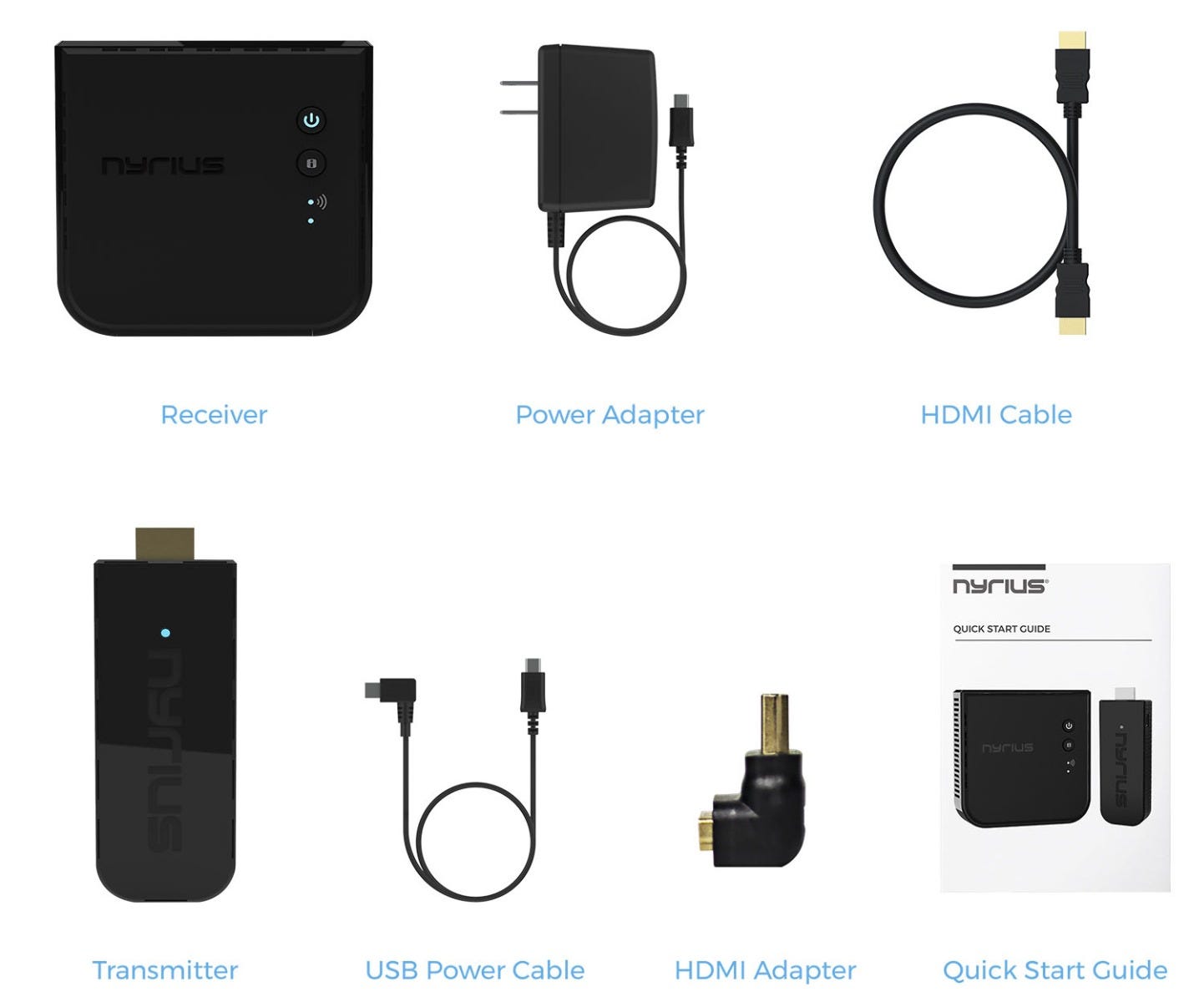

What's Included |
Customer Reviews
-
Display lost sync every 5 to 10 minutes. This was at a distance of about 10 feet from laptop to display.I don't use it.
-
I have a unit, and when it works it works quite well. The problem is that it operates among the same frequencies as your 5GHz home router. Because of potential frequency conflicts, it doesn't always find a clear frequency to connect the recevier and transmitter, so its operation is intermittent. At my house, I use 2 separate routers and two 5GHz frequencies which don't change. I know which Nyrius frequencies are clear and will work, but the DFS in Nyrius is not always able to select the clear frequency (Channel 1 in my case). My recommendation to NYRIUS before I would buy another unit: Please install an option to manually select the NYRIUS operating channel. Channel 1 always works for me at my house, and the only way to get the NYRIUS units to handshake on Channel 1, is for me to manually disconnect the receiver unit and plug it in closeby to the transmitter unit, let them handshake to channel 1, then unplug the receiver and quickly plug it in at the TV's location 2 rooms away. It then comes on and displays Channel 1, and continues to operate perfectly. For some reason, the DFS can't make the units handshake from a distance because of the proximity of the 2 internet routers in the house. Manual selection of the NYRIUS operating channel would solve my problem.
-
Compact elegant looking (transmitter like large USB dongle, receiver like Apple TV size). Video is seamless no lag. Connects to itself instantly after power on. Audio also good but I ran through receiver first with Nyrius transmitter off the Output. Used for two years no problems.
-
This is the second nyrius product I have had and the Aries pro + which overheated and almost caused a fire in my home. This transmitter also cuts out for some reason even within 15 feet of eachother. I’m still trying to figure out which one is best. When it does work it’s great but it’s not reliable for me personally sadly. Great idea and price if it was reliable.
-
It kind of works. The response time is great, very little lag in the camera. The range, however, is very poor. I bought the 165 ft model (NPCS650) and it constantly loses connection even when it is only 15-20 feet away with a direct line of sight. Would be great if it worked as-designed, but it's not appropriate for anything less than close range - and at that point why not just plug it in?
-
Overall, I'm giving 4.5 stars which rounds up to five. I have my transmitter downstairs and my receiver upstairs, about 100 feet apart. Setup was easy. The product works almost perfectly. The only frustration - and I could see it being a big one for some people - is the time to connect every time I start my upstairs TV, can be up to a minute. Once it connects though, it's a miracle device. Picture quality is amazing.
In sum, the cords I was able to remove because of this - oh what a joy it's been. -
Great product!
-
I have never thought I would find something so reliable and accurate based on the marketed results and also the simplicity of the product which gives you zero delay and smooth, mine was advertised for 40ft but it works well on 100ft without problems
Resources
Manual
Guides
Video
FAQs
Aries Pro makes a great same room wireless HD solution. You can send video from sources such as Laptops, PCs and gaming consoles up to 165 feet away, with zero latency!
Also known as input lag, Nyrius Aries Wireless HD transmitters and receivers are considered Zero Latency. This means if you’re using a computer and move your mouse, there is no delay. This makes Aries product great for presentations and gaming!
Aries Pro+ includes a transmitter and receiver. The receiver includes a power adapter to be connected to a wall outlet. To keep your transmitter portable, it’s powered by USB from the source device or in some cases an external power pack may be necessary if a USB power connection is not available. The transmitter must be connected to both USB and HDMI to transmit.
Nyrius Aries Pro+ requires both a USB and HDMI connection, USB for power and HDMI for video. This allows the transmitter to act as an invisible HDMI cable with no USB drivers required!
Aries Pro+ is designed primarily for use with a computer. If you have another monitor connected already, this can be used with the extend feature to act as a wireless second monitor. It can also be used to duplicate the display of that display on another monitor or TV or make your main display wireless.
Aries Pro does not offer the option of multiple receivers for sending video to multiple displays.
