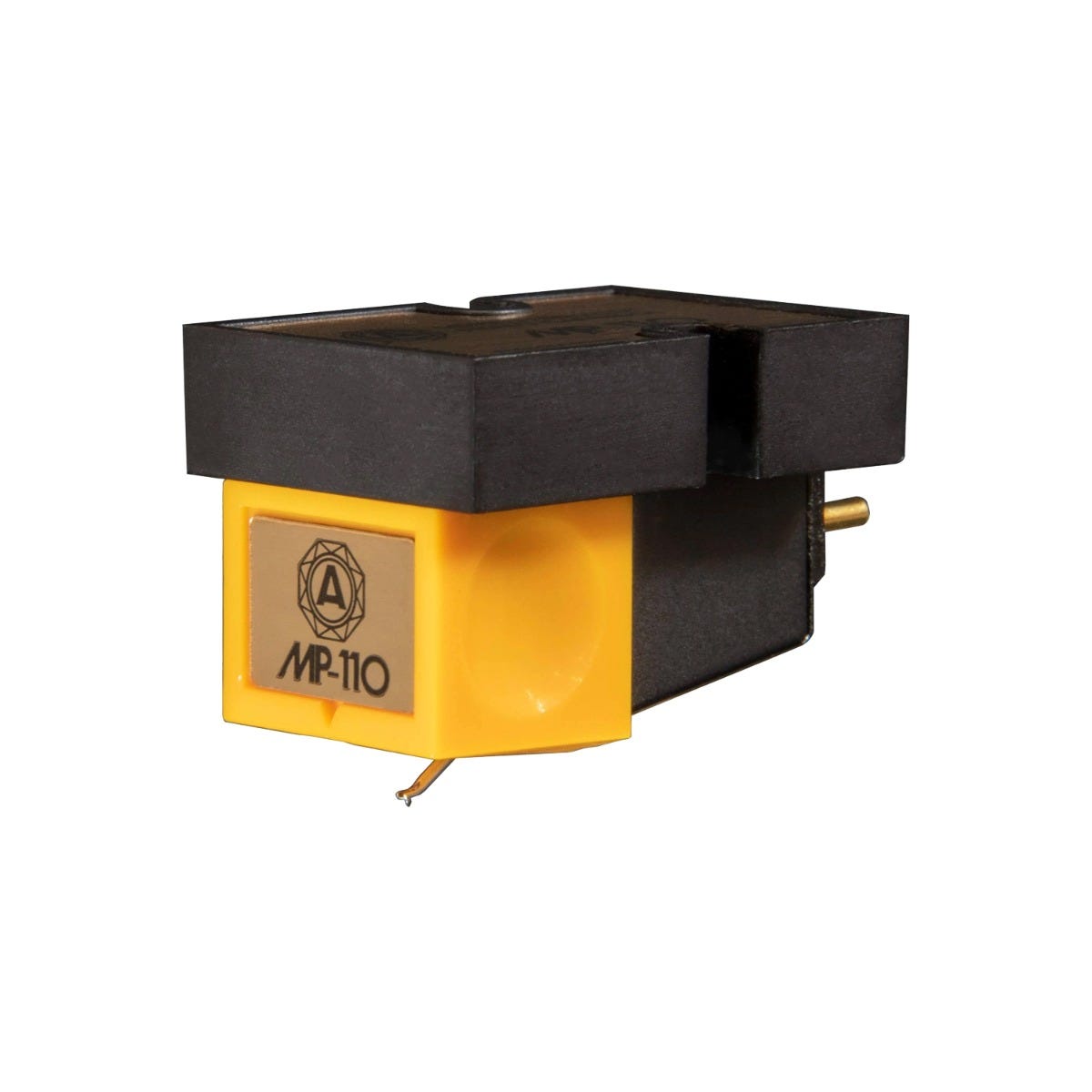

Nagaoka MP-110 Phono Cartridge

Name: Nagaoka MP-110 Phono Cartridge
SKU: MP110
Price: 189.99 USD
Availability: InStock

Superior Audio Clarity, Dynamic Range, Designed for Enhanced Vinyl Experience (MP110)

Be the first to review this product

$189.99

Model:

2MBlue MP110 2MRed OM10 ATVM95E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

With a 0.4 x 0.7 mil elliptical diamond, the MP-110 stylus achieves superior tracking accuracy, enhancing audio detail and reducing record wear. This precision allows for an intricate extraction of audio nuances, providing a crystal-clear listening experience.

Superfine Polished Diamond Stylus

This cartridge utilizes a high-energy samarium cobalt magnet, significantly boosting output voltage to 5.0 mV. This feature ensures that the audio output is both powerful and detailed, allowing for dynamic sound reproduction across various musical genres.

Powerful Samarium Cobalt Magnet

The aluminum alloy cantilever offers excellent rigidity and responsiveness, which enhances the tracking capabilities of the stylus. This setup ensures that the stylus moves more accurately with the grooves of the record, producing high fidelity sound.

Lightweight Aluminum Alloy Cantilever

Incorporating a carbon fiber reinforced plastic shoe adds durability and reduces unwanted resonances. This material choice contributes to the cartridge's ability to maintain a clean and stable audio output even at high playback volumes.

Carbon Fiber Reinforced Plastic Shoe

The cartridge is encased in a permalloy shield, effectively reducing electromagnetic interference and preserving the integrity of the audio signal. This design ensures that the sound output remains pure and uncolored by external noise.

Anti-Ferro Magnetic Permalloy Shield Casing

Specifications

Specifications
Brand	Nagaoka
Model	MP-110
Cartridge Type	Moving Magnet (MM)
Mount	Half-inch
Stylus Shape	Bonded Elliptical Diamond
Stylus Size	0.4 x 0.7 mil / 10.16 x 17.78 µm
Stylus Tip	Superfine polished diamond
Stylus Lifetime	300 to 500 hours
Replacement Stylus	Nagaoka JN-P110
Cantilever	Aluminum Alloy
Frequency Response	20 - 20,000 Hz
Channel Balance	1.5 dB @ 1 kHz
Channel Separation	23 dB @ 1 kHz
Supported Tracking Force	0.053 - 0.088 oz (1.5 - 2.0 g)
Vertical Tracking Force	0.071 oz (1.8 g)
Vertical Tracking Angle	20°
Output Voltage	5.0 mV
Load Impedance	47,000 Ohms
Recommended Load Capacitance	100 - 200 pF
Dynamic Compliance	20 x 10 – 6 cm / dyne (100 Hz)
Cartridge Weight	0.229 oz (6.5 g)
Cartridge Height	0.73 inches (18.5 mm)
Compatible With	RT85N
Dimensions	1.12 x 0.71 x 0.73 inches / 28.5 x 18.0 x 18.5 mm (L x W x H)
What's Included	MP-110 Cartridge 2x Screws (M2.5 x 5) 2x Washers 2x Nuts Installation Guide 30 Day Fluance Risk Free in Home Trial 1 Year Nagaoka Warranty
UPC	4967736076340
