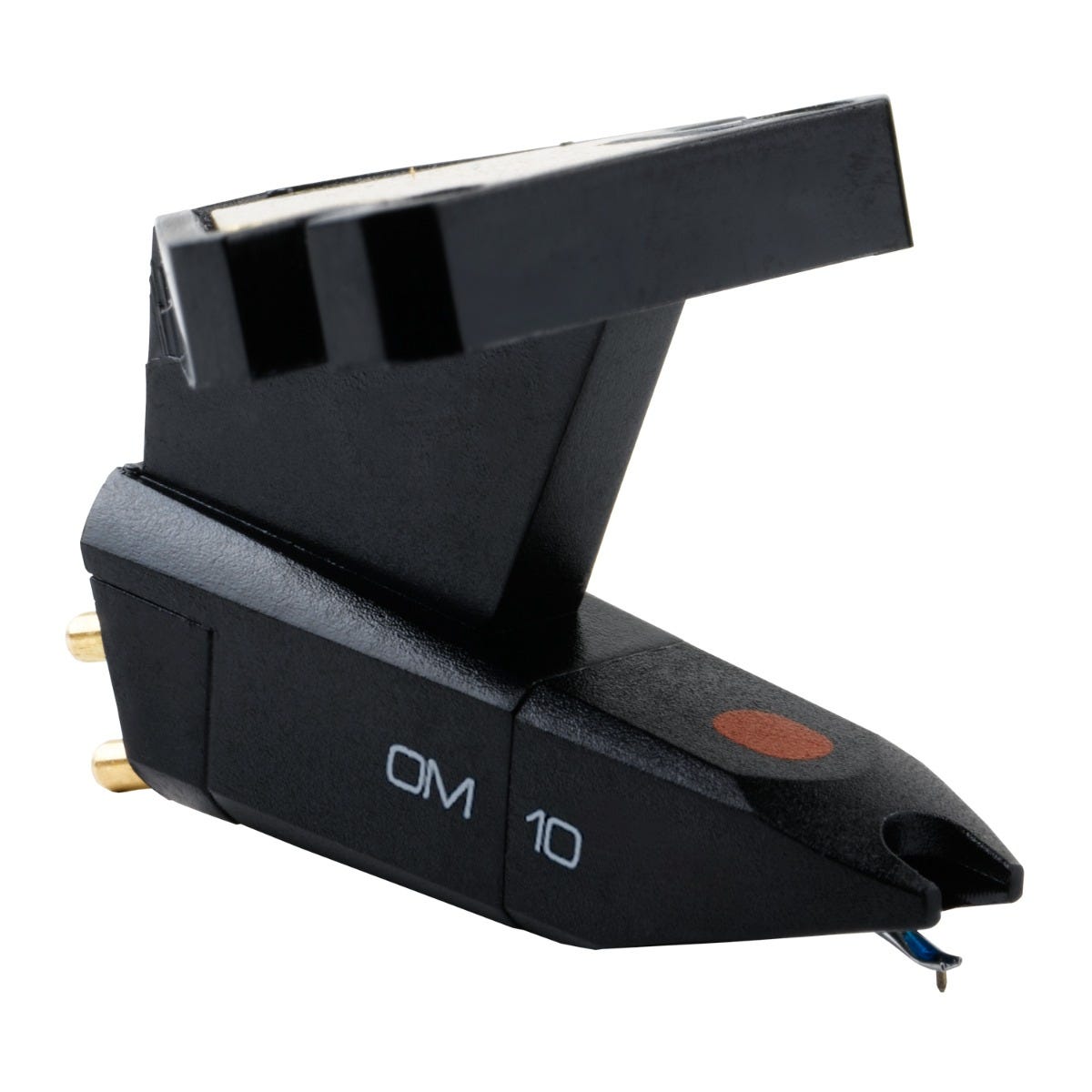

Ortofon OM 10 Cartridge

Name: Ortofon OM 10 Cartridge
SKU: OM10
Price: 74.99 USD
Availability: InStock
Rating: 5 (1 reviews)

Moving Magnet, Elliptical Diamond Tipped Stylus for Vinyl Turntables (OM10)

Rating:

100%

1 Review

$74.99

Model:

2MBlue MP110 2MRed OM10 ATVM95E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The OM 10 adapts easily to different tonearm types thanks to its innovative weight-plate design. Whether your tonearm is standard or low mass, the OM 10 can be adjusted for optimal performance, ensuring stable playback and reducing wear on records.

Tonearm Matching Flexibility

With a tracking force range of 1.25-1.75 g and the ability to handle up to 70 µm at 315 Hz, the OM 10 maintains precise groove tracking, reducing distortion and preserving the integrity of your vinyl collection.

High Tracking Accuracy

The elliptical stylus of the OM 10 enhances audio detail, allowing for more accurate sound reproduction. This stylus shape is adept at reading record grooves with high fidelity, offering clarity and depth in the sound.

Elliptical Diamond Stylus

Designed for a clear and balanced audio output, the OM 10 features a channel separation of 22 dB and a frequency response of 20-22,000 Hz, ensuring a smooth and dynamic audio experience across a wide spectrum.

Optimal Sound Reproduction

The OM 10’s construction includes a lightweight aluminum alloy cantilever and a carbon fiber reinforced plastic shoe, enhancing its durability. The cartridge is straightforward to mount, fitting most standard headshells, which simplifies the setup process.

Durable and Easy to Install

Specifications

Specifications
Brand	Ortofon
Model	OM 10
Cartridge Type	Moving Magnet (MM)
Mount	Half-inch
Stylus Shape	Elliptical
Stylus Size	0.71 mil / 18 µm
Stylus Tip	Bonded Elliptical Diamond
Stylus Lifetime	1,000 hours (approx.)
Replacement Stylus	Ortofon Stylus 10
Cantilever	Aluminum
Frequency Response	20 - 20,000 Hz
Channel Balance	1.5 dB @ 1 kHz
Channel Separation	22 dB @ 1 kHz
Supported Tracking Force	0.044 - 0.062 oz (1.25 - 1.75 g)
Vertical Tracking Force	0.053 oz (1.5 g)
Vertical Tracking Angle	20°
Output Voltage	4 mV
Load Impedance	47,000 Ohms
Recommended Load Capacitance	200 - 600 pF
Dynamic Compliance	25 x 10 – 6 cm / dyne
Cartridge Weight	0.176 oz (5.0 g)
Cartridge Height	0.71 inches (18.0 mm)
Compatible With	RT81, RT81+, RT82, RT83, RT84
Dimensions	1.06 x 0.63 x 0.71 inches / 27.0 x 16.0 x 18.0 mm (L x W x H)
What's Included	OM10 Cartridge 2x Screws (M2.5 x 5) 2x Washers 2x Nuts Installation Guide 30 Day Fluance Risk Free in Home Trial 1 Year Ortofon Warranty
UPC	5705796010091
