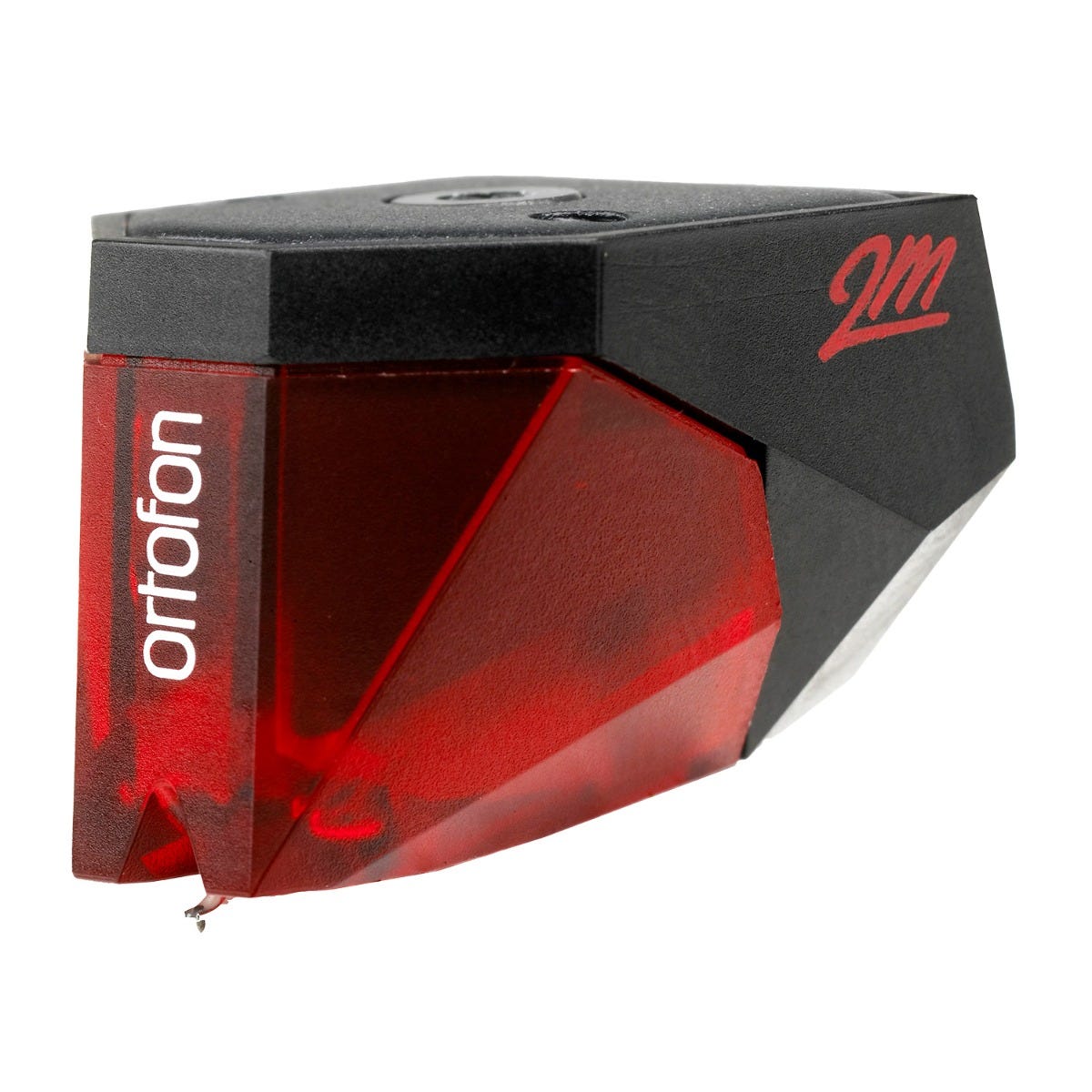

Ortofon 2M Red Cartridge

Name: Ortofon 2M Red Cartridge
SKU: 2MRED
Price: 99.99 USD
Availability: InStock

High Precision Elliptical Stylus for Enhanced Stereo Separation, Wide Frequency Response, Optimal Tracking (2MRED)

Be the first to review this product

$99.99

Model:

2MBlue MP110 2MRed OM10 ATVM95E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The 2M Red features an elliptical stylus that enhances the tracking and retrieval of audio details, providing crisp and clear playback. This design ensures precise and nuanced audio capture, ideal for discerning listeners who appreciate depth in their music.

Advanced Elliptical Stylus

Designed to deliver a wide frequency response of 20 Hz to 20 kHz, the 2M Red ensures balanced audio reproduction with excellent dynamics. This range allows for the full expression of recordings, from deep bass to bright highs.

Optimized Sound Reproduction

With a channel separation of 22 dB at 1 kHz, this cartridge offers excellent stereo imaging and a spacious soundstage, ensuring that each instrument and vocal is distinctly positioned within the mix for an immersive listening experience.

Enhanced Channel Separation

The 2M Red is engineered to track forces between 1.6 and 2.0 grams, which helps in maintaining the integrity of the vinyl surface while ensuring accurate playback. This optimal tracking force minimizes distortion and preserves the life of both the stylus and your records.

Robust Tracking Ability

Featuring a meticulously crafted body that integrates a split pole pin with a copper wire, the 2M Red enhances sound accuracy, offering a sonic experience that faithfully reproduces all elements of the recorded music.

Precision Engineered Cartridge Design

Specifications

Specifications
Brand	Ortofon
Model	2M Red
Cartridge Type	Moving Magnet (MM)
Mount	Half-Inch
Stylus Shape	Elliptical
Stylus Size	0.71 mil / 18 µm
Stylus Tip	Bonded Elliptical Diamond
Stylus Lifetime	1,000 hours (approx.)
Replacement Stylus	Ortofon Stylus 2M Red
Cantilever	Aluminum
Frequency Response	20 - 20,000 Hz
Channel Balance	2.0 dB @ 1 KHz
Channel Separation	22 dB @ 1 KHz
Supported Tracking Force	0.056 - 0.071 oz (1.6 - 2.0 g)
Vertical Tracking Force	0.063 oz (1.8 g)
Vertical Tracking Angle	20°
Output Voltage	5.5 mV
Load Impedance	47,000 Ohms
Recommended Load Capacitance	150 - 300 pF
Dynamic Compliance	20 x 10 – 6 cm / dyne
Cartridge Weight	0.254 oz (7.2 g)
Cartridge Height	0.71 inches (18.0 mm)
Compatible With	RT81, RT81+, RT82, RT83, RT84
Dimensions	1.08 x 0.73 x 0.71 inches / 27.5 x 18.5 x 18.0 mm (L x W x H)
What's Included	2M Red Cartridge 2x Screws (M2.5 x 5) 2x Washers Installation Guide 30 Day Fluance Risk Free in Home Trial 1 Year Ortofon Warranty
UPC	5705796080018
