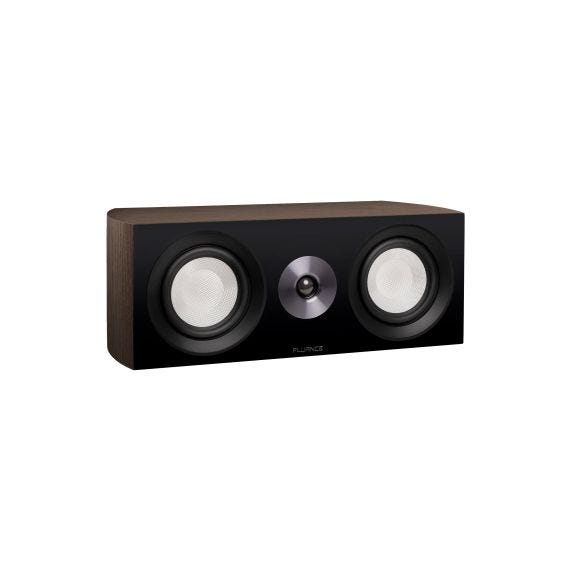

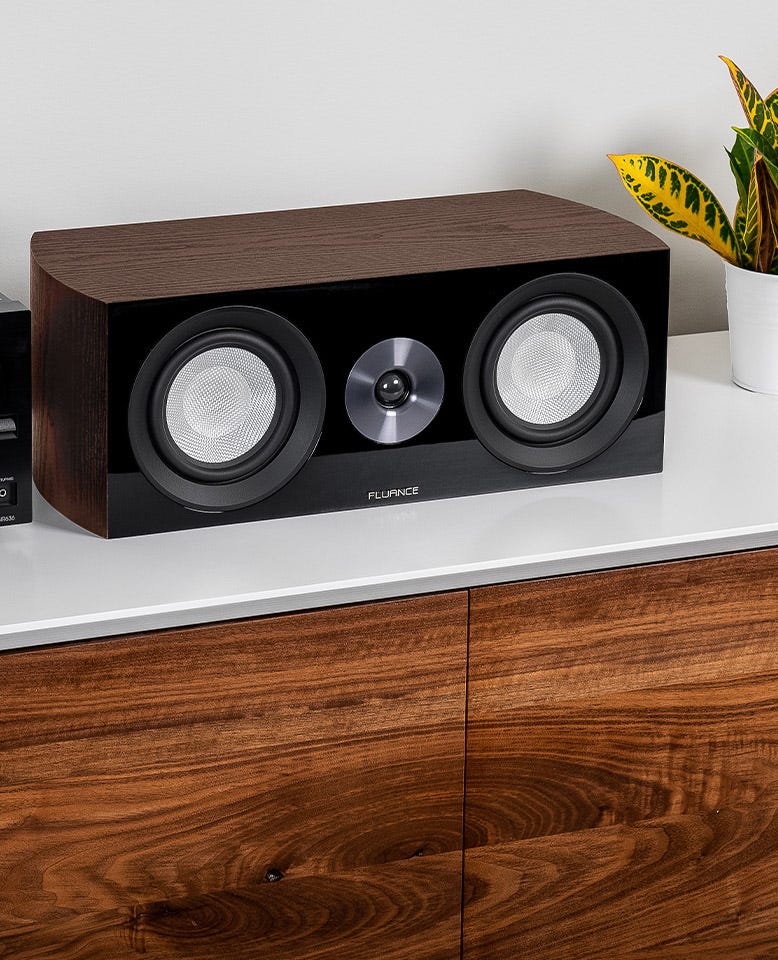

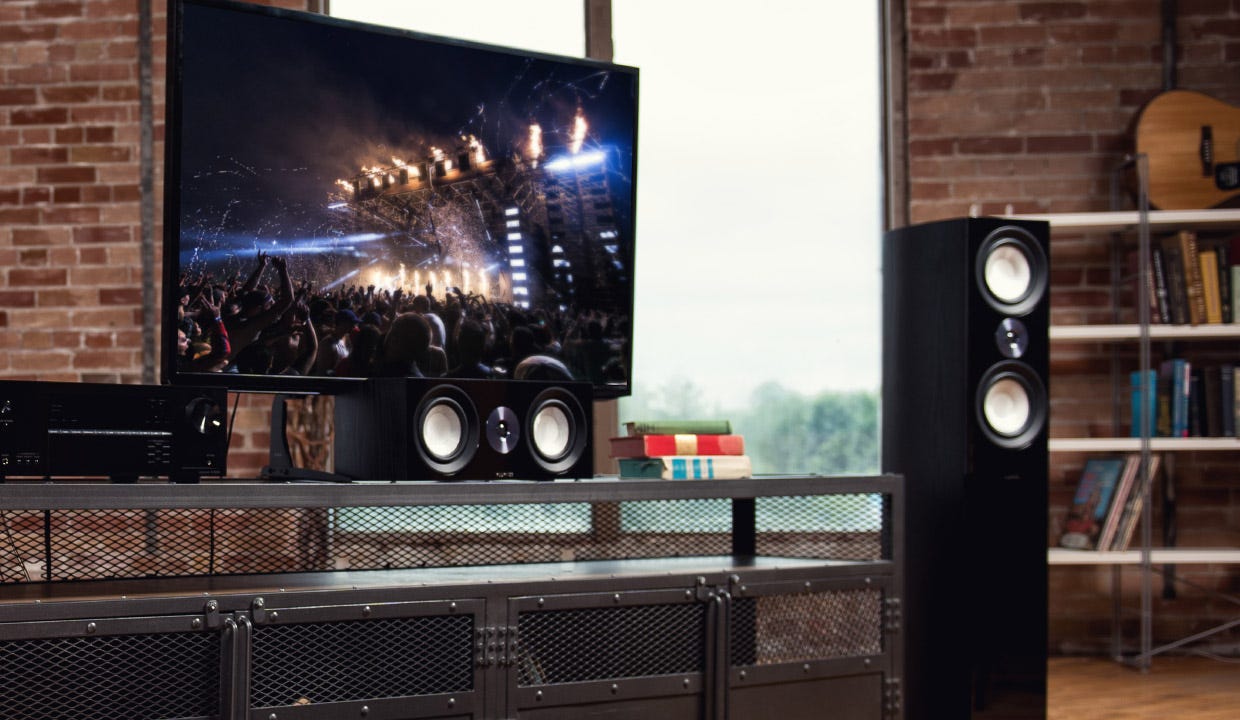

Reference High Performance 2-Way Center Channel Speaker
For Enhanced Dialogue and Vocals - Natural Walnut (XL8CW)
Color: Natural Walnut

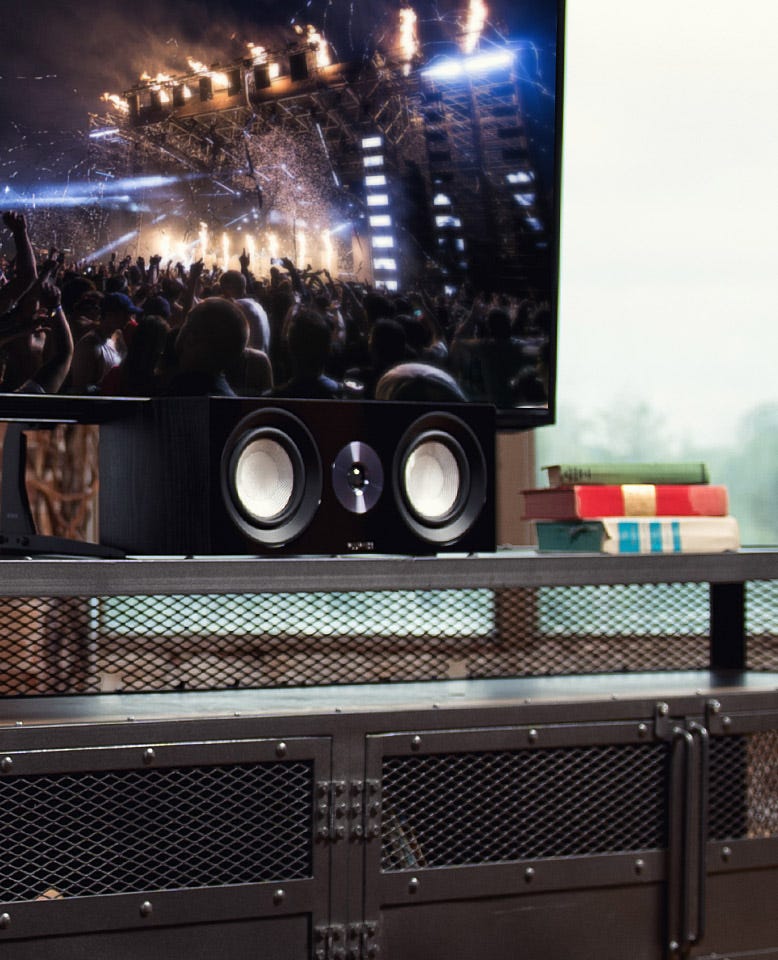

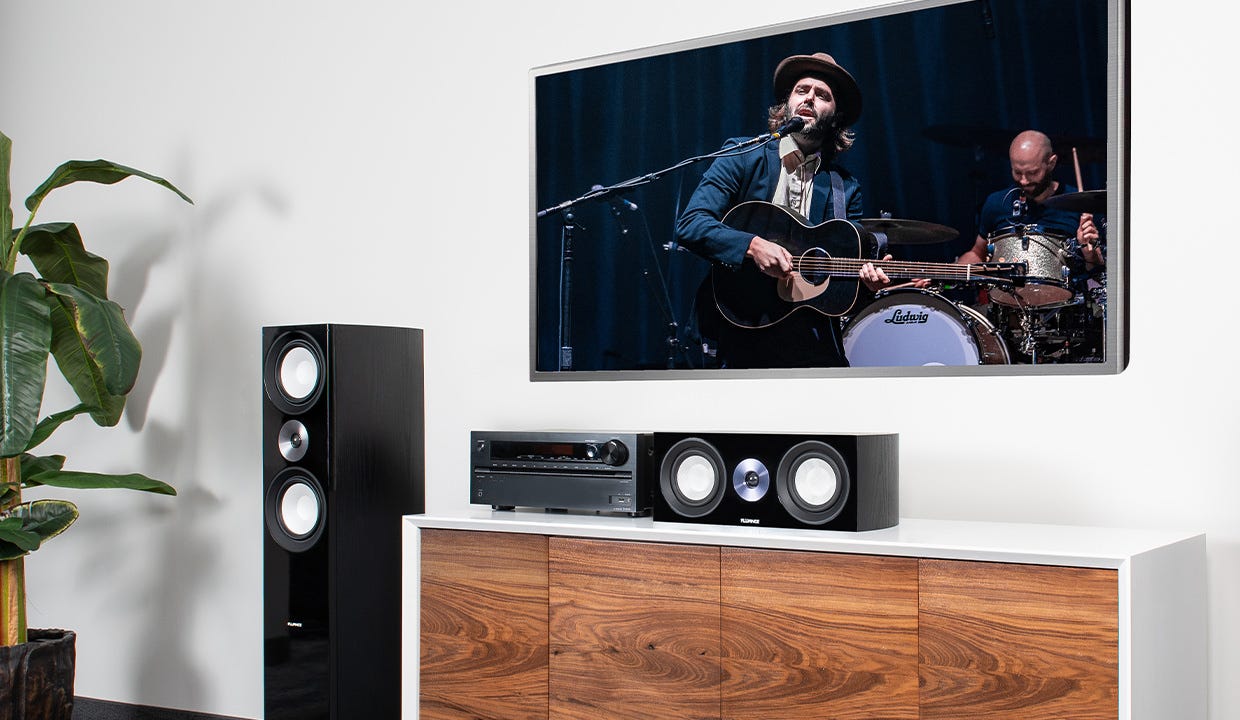

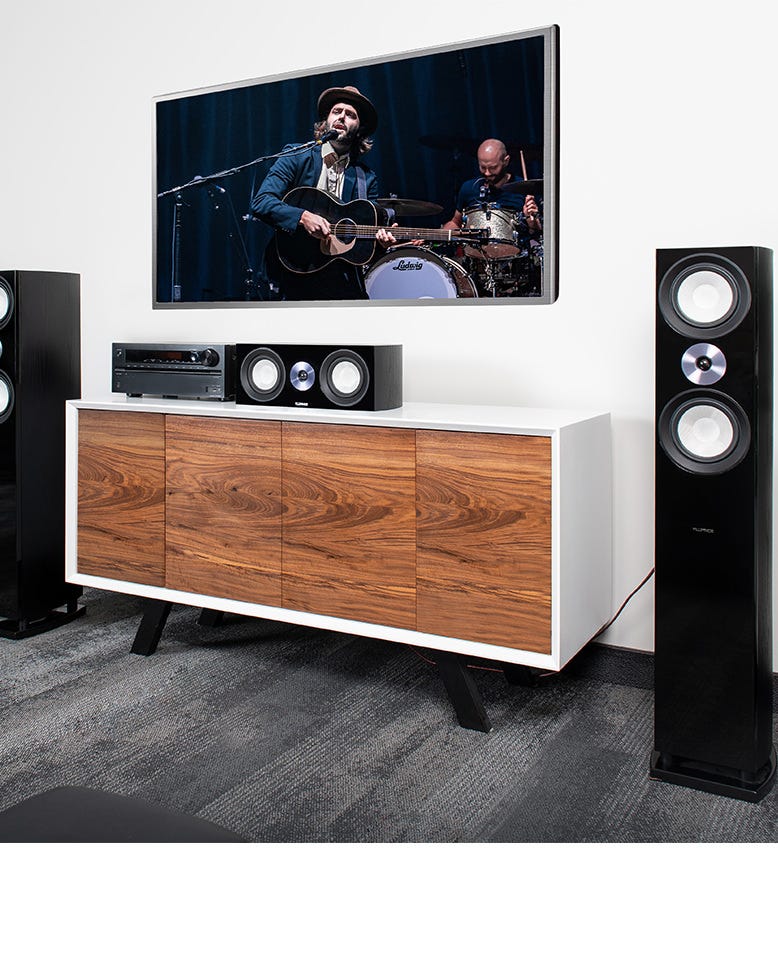

EXQUISITE DIALOGUE REPRODUCTION
This center channel speaker provides outstanding clarity for accurate reproduction of dialogue and clear musical vocals

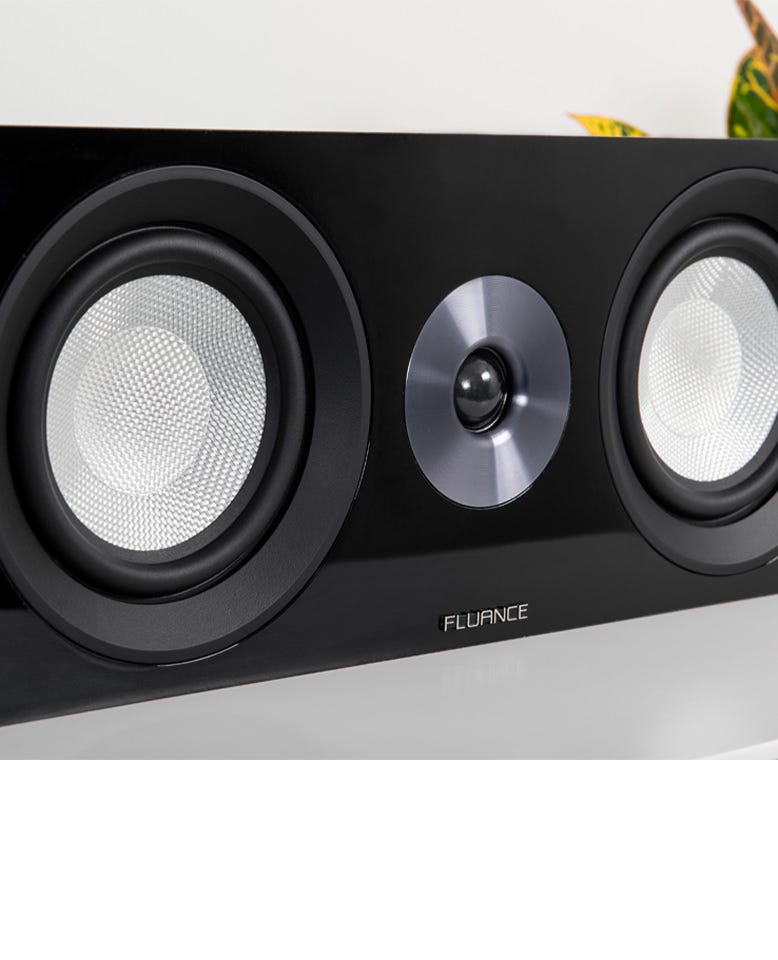

RICH AND DETAILED MIDRANGE
Woven fiber drivers provide vibrational damping and optimal linear movement resulting in a faithful reproduction of the original recording

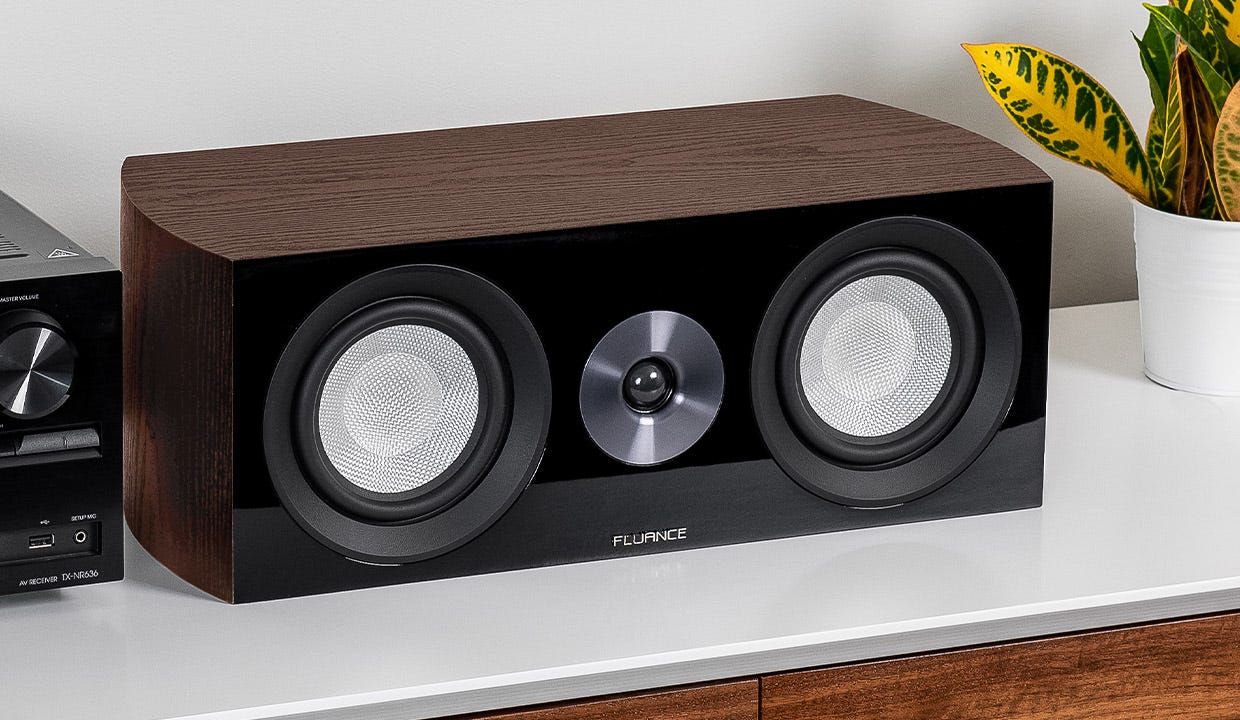

CAPTIVATING CLARITY IN THE HIGH FREQUENCIES
Silk dome neodymium tweeters produce crisp, natural highs while providing spacious off axis dispersion making every spot the sweet spot

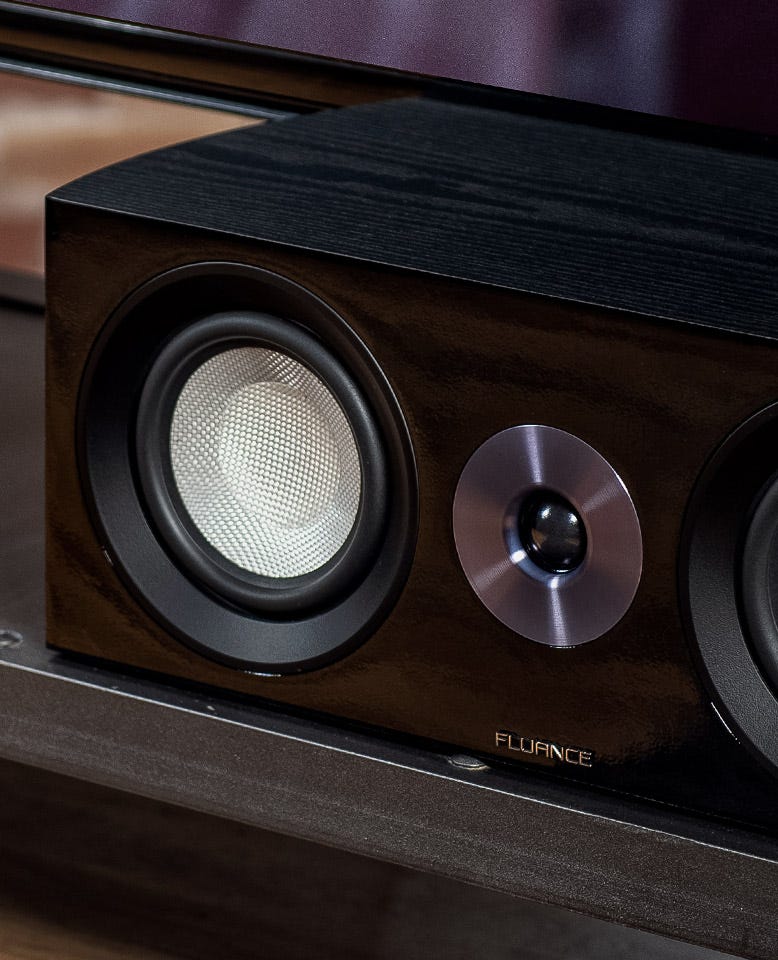

SUPERIOR CABINET ENGINEERING
Meticulously designed sealed wood enclosure optimizes the performance of the frequency response and allows for flexibility in placement (Frequency Range 110Hz - 20KHz)
OPTIMIZED CROSSOVER FOR SUPERIOR SOUND
Utilizing high performance components improving phase coherence, frequency response balance and timing
Specifications
| Series | REFERENCE |
|---|---|
| Speaker Configuration | 2 Way - 3 Driver Center Channel |
| Enclosure | Acoustic Suspension Design |
| Tweeter | 1 inch Neodymium Balanced Silk Dome Ferrofluid Cooled |
| Woofer | Dual 5.25 inch Woven Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Power Handling | 50 - 100 Watts RMS |
| Frequency Response | 110 Hz - 20 kHz |
| Sensitivity | 86 dB @ 1 W / 1 m |
| Crossover Frequency | 3000 Hz Phase Coherent - PCB Mounted Circuitry |
| Impedance | 8 Ohm Compatible |
| Dolby Atmos | Ideal for use as surround sound speakers in a Dolby Atmos Surround Sound |
| Dimensions | 6.9 X 9.0 X 18.5 inches / 17.53 x 22.86 x 46.99 cm (HxWxD) |
| Weight | 15 lb (6.8 kg) |

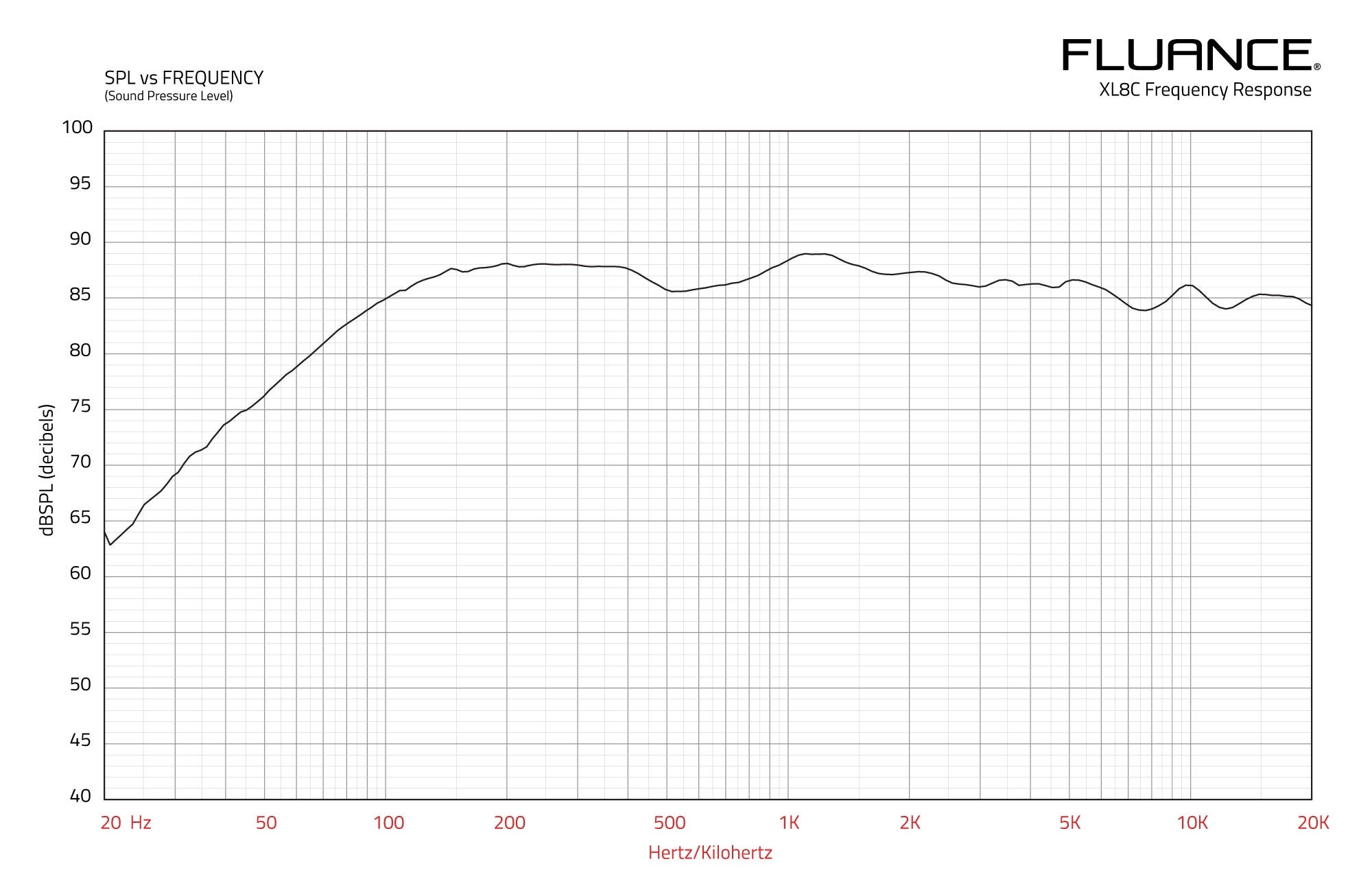

| Frequency Response Graph | Click to Expand |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | CE Certified |
| UPC | 061783269725 |
| What's Included |
|
What's Included
Videos
Guides
Take a comprehensive look at the set up, function, and maintenance of your product. The product manual details all of its specifications and how to care for your product.
Frequently Asked Questions
While they follow the same form factor, the XL8 Reference Series feature improved components such as woven glass fiber composite drivers. We've also redesigned the crossover, drivers and cabinet to improve the overall performance of the entire series.
