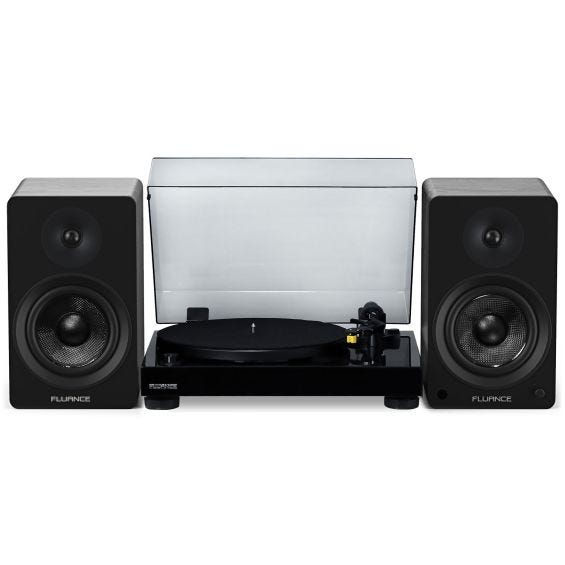

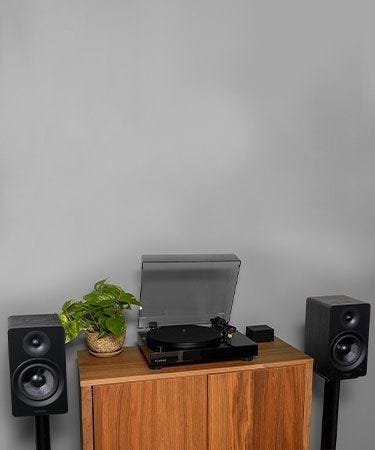

RT80 Classic High Fidelity Vinyl Turntable with Ai61 Powered 6.5” Bookshelf Speakers
Diamond Stylus, Belt Drive, Built-in Preamp - 120W Class D Amplifier and Bluetooth
Color: Piano Black
Model:
UNPARALLELED PERFORMANCE
With an integrated 120W amplifier, these active speakers deliver a true stereo sound with refined detail and powerful room-filling stereo sound that elevates your musical experience

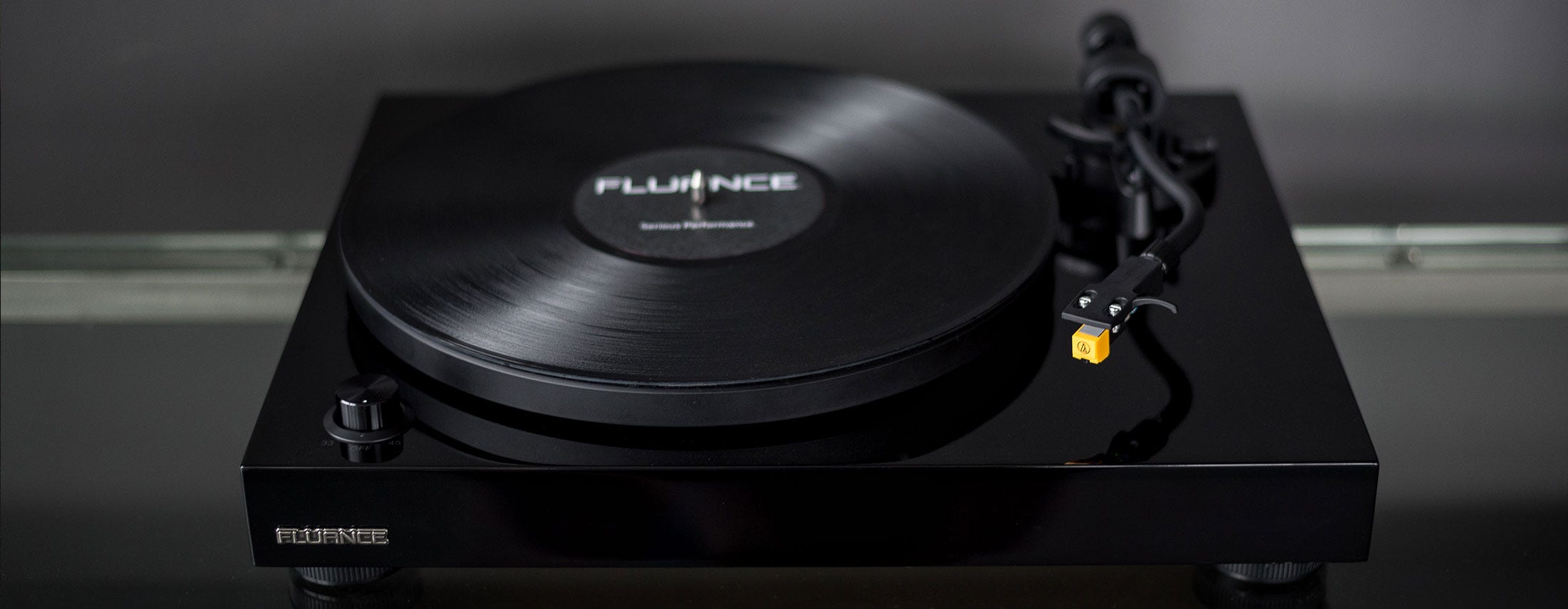

PREMIUM TURNTABLE COMPONENTS

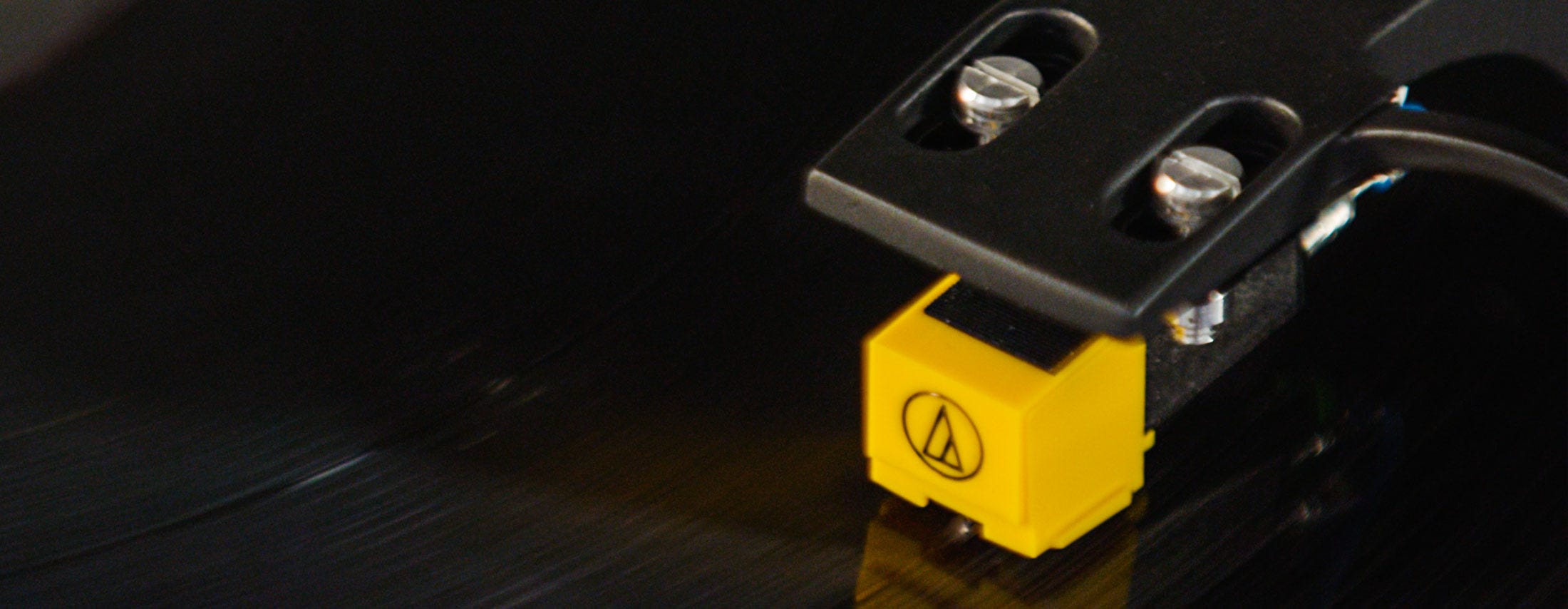

Packed with high performance components including an Audio Technica AT91 conical stylus, felt mat, S-type precision tone arm, Texas Instruments preamp, recreating the performance the way the artist intended

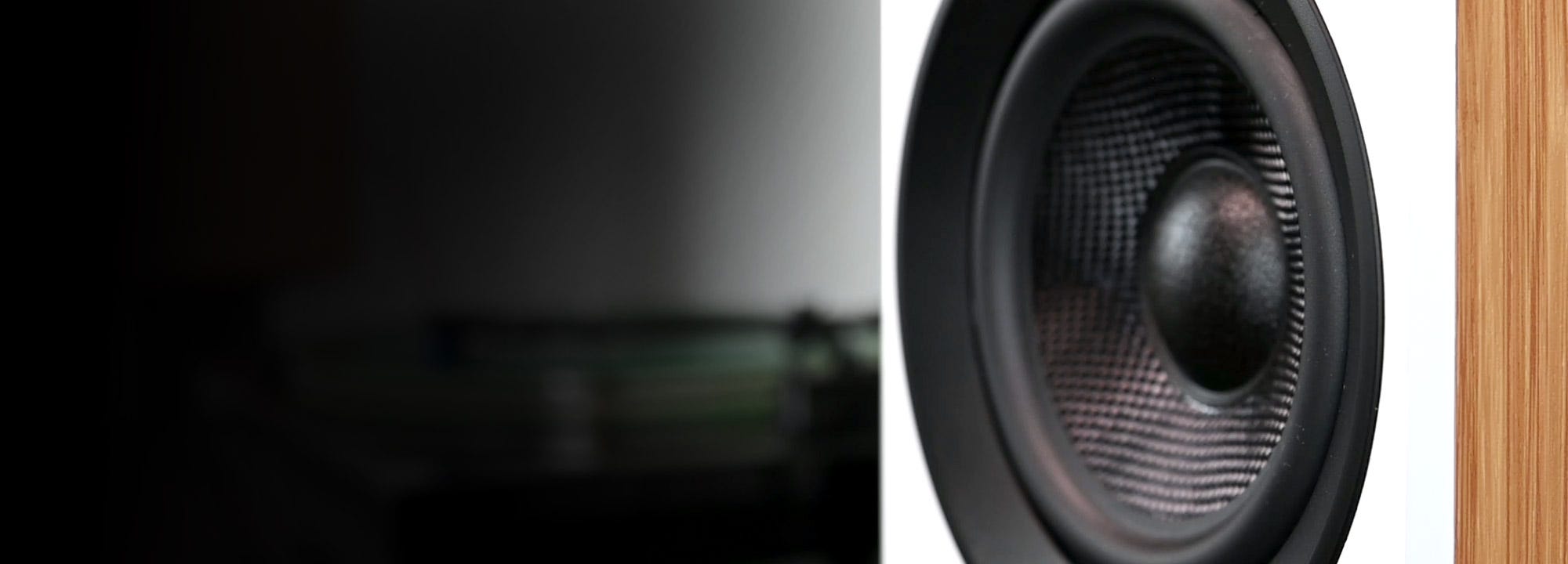

POWERFUL SPEAKERS
Light and rigid 6.5-inch woven glass fiber drivers produce detailed midrange frequencies and clean undistorted bass with stunning acoustic accuracy

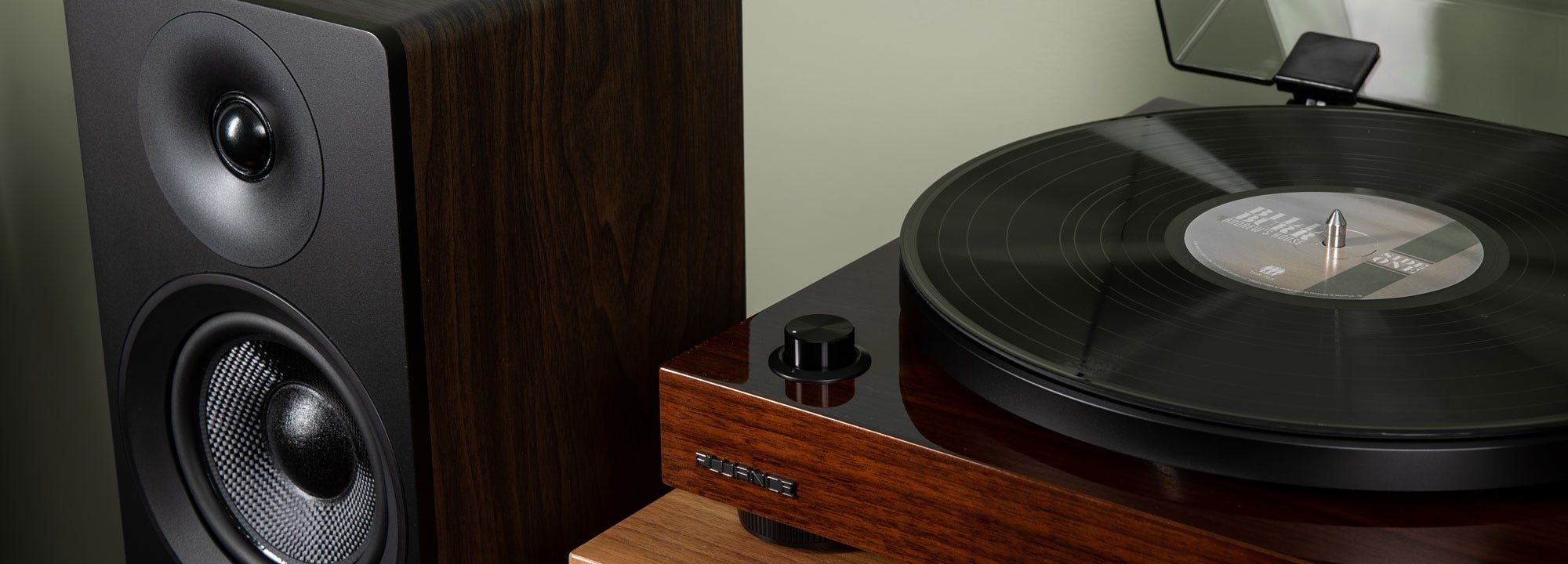

PRECISION CRAFTED WOOD CABINETS
Enjoy warm sound from the internally braced MDF wood cabinets, meticulously engineered to remove unwanted resonances with a rear bass port for full and natural bass

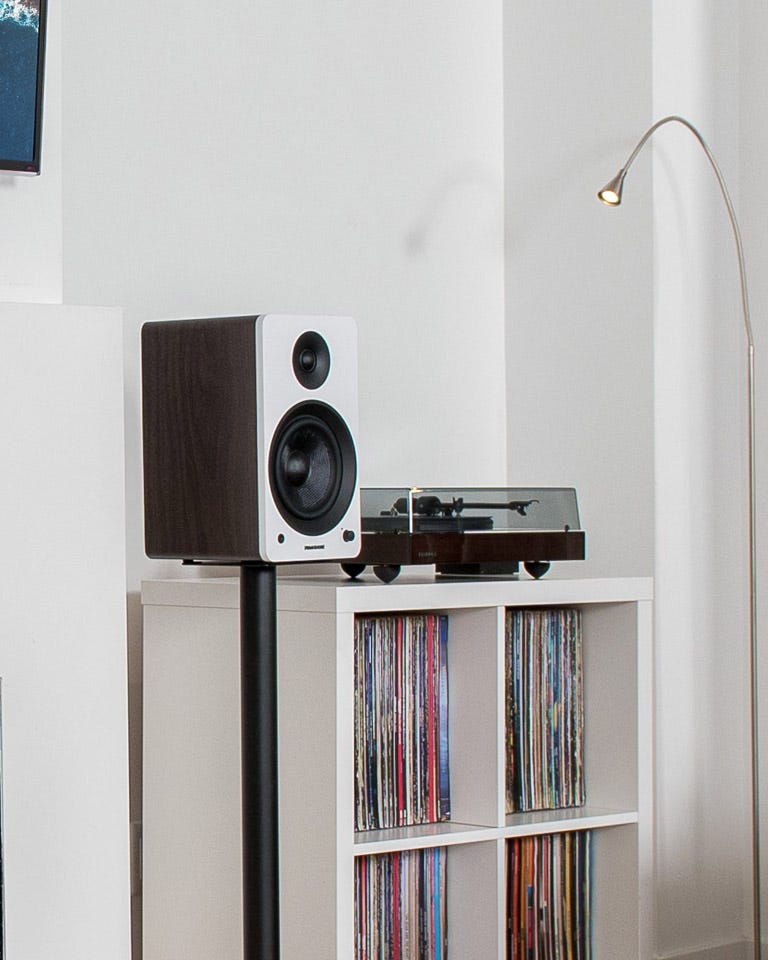

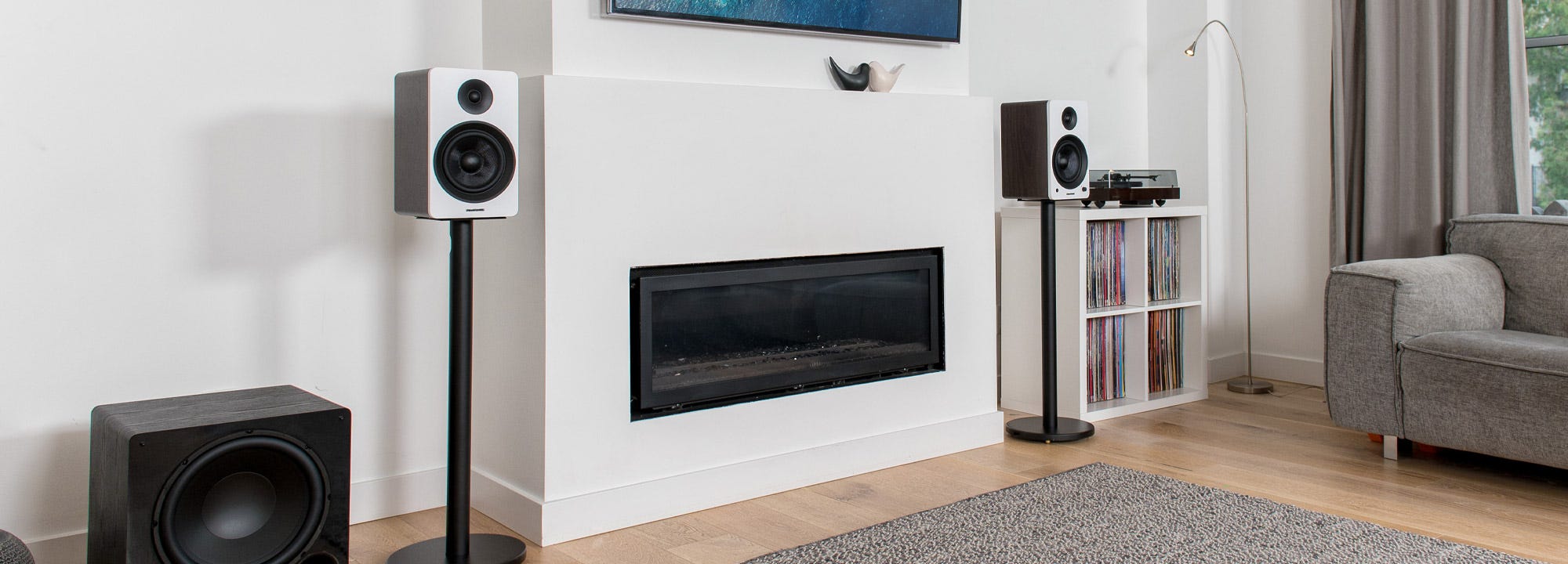

SIMPLE AUDIO SETUP
Easily switch between your vinyl records and streaming your favorite music apps through Bluetooth with this simple plug and play setup – no separate amp required
Specifications
RT80 Classic High Fidelity Vinyl Turntable
| Cabinet Specifications | |
|---|---|
| Cabinet Material | MDF |
| Finish | High Gloss Piano Black |
| Dust Cover | Yes - Tinted |
| Turntable Specifications | |
| Drive System | Belt Drive |
| Motor | DC Motor |
| Motor Isolation | Three Point Rubber Isolation |
| Speed | 33 1/3 RPM, 45 RPM (78 RPM - No) |
| Speed Variation | +/- 1.00% |
| Wow and Flutter | 0.2% |
| Signal-to-Noise Ratio (Weighted) | 67 dB or higher (A-weighted, 20 kHz LPF) |
| Signal-to-Noise Ratio (Unweighted) | 60 dB or higher (unweighted, 20 kHz LPF) |
| Platter | Aluminum |
| Diameter of Platter | 12 inch, 30 cm |
| Weight of Platter | 1.22 lb (553 g) |
| Height of Platter | 0.62 inches (16 mm) |
| Auto-Stop | Yes |
| Fully Automatic | No |
| Turntable Mat | Felt |
| Tonearm Specifications | |
| Tonearm Type | Static Balanced, S-Type |
| Supported Cartridge Weight | 3.5 to 6.5 g |
| Counterweight | Yes – 3.53 oz (100 g) - Adjustable |
| Anti-skating Adjustment | Yes |
| Pivot Bearing | Yes |
| Cueing Lever | Yes |
| Tonearm Material | Aluminum |
| Tonearm Wire | 36 AWG Litz Cable / 7 Strand |
| Effective Tonearm Mass | 28.2 g |
| Overhang | 19.2 mm |
| Effective Tonearm Length | 224 mm |
| Headshell Mount | H-4 Bayonet Mount |
| Headshell Weight | 0.38 oz (10.7 g) |
| Tonearm Height | 17 mm |
| Cartridge Specifications | |
| Cartridge Type | Moving Magnet (MM) |
| Cartridge Model | Audio Technica: AT91 |
| Replacement Stylus | ATN91 |
| Stylus | 0.6 mil Bonded Conical (Diamond) |
| Cantilever | Carbon Fiber |
| Mount | Half inch |
| Frequency Response | 20 - 20,000 Hz |
| Channel Separation | 18 dB at 1 kHz |
| Channel Balance | 2.5 dB or less at 1 kHz |
| Load Impedance/Capacitance | 47k Ohms/100 pF |
| Output Voltage | 3.5 mV (+/– 3 dB) |
| Cartridge Weight | 5.0 g (+/– 0.5 g) |
| Cartridge Height | 0.67 inches (17 mm) |
| Vertical Tracking Angle | 20 degrees (Non-Adjustable) |
| Rubber Belt Specifications | |
| Rubber Belt Design | Continuous loop (joint-less) |
| Width | 4.5 mm |
| Length | 534.07 mm |
| Thickness | 0.6 mm |
| Output Specifications | |
| Connector | RCA (Gold-plated) |
| Phono Preamp | Yes, PHONO/LINE Switchable |
| Phono Output | 3.5 mV (+/– 3 dB) |
| Phono Bypass | Yes, all electronics bypassed when using external preamp |
| Line Output | 140 mV (–17 dBV) |
| Ground Terminal | Yes |
| Power Specification | |
| Input | 100-240 V AC (50/60 Hz) |
| Output | 12 V / 500 mA |
| Consumption | 1.5 W |
| General Specifications | |
| Dimensions | 5.75 x 16.5 x 14.25 inches / 14.6 x 41.9 x 36.2 cm (HxWxD) |
| Unit Weight | 11.02 lb (5.0 kg) |
| Operating Temperature | 20°C |
| Wireless Playback | No (Requires Bluetooth or WiFi transmitter connected via RCA connection to transmit audio wirelessly) |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | FCC Certified, RoHS, CUL/UL |
| UPC | 061783258279 |
| What's Included | |
Ai61 Powered 6.5" Stereo Bookshelf Speakers
| Speaker Type | Bookshelf |
|---|---|
| Speaker Configuration | 2 Way – 2 Driver Powered Bookshelf Speaker System with Integrated Amplifier (Pair – 1x Active, 1x Passive) |
| Enclosure | Tuned Rear Port Bass Reflex Design Dampened |
| Tweeter | 1 inch Silk Soft Dome Neodymium Ferrofluid Cooled |
| Woofer | 6.5 inch Woven, Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Amplifier Power | Class D 120 Watts Continuous Average Output (2x 60 watts RMS) |
| Frequency Response | 32 Hz - 20 kHz (DSP Enhanced) |
| Crossover Frequency | 2800 Hz Phase Coherent 12 dB/Oct – PCB Mounted Circuitry |
| Bluetooth | Yes, Bluetooth 5.0 |
| Audio Inputs | RCA L/R, Bluetooth, Digital Optical TOSLINK, USB Type-C |
| Internal Lead Wire | 18 Gauge Internal Lead Wire to Reduce Signal Degradation |
| Subwoofer Output | Yes, 80 Hz Low-pass Frequency Cutoff |
| Phono Preamp | No |
| Internal DAC | Yes |
| WiFi Casting | Pairs via Bluetooth with Google Home, Amazon Echo, and AppleTV (Ai61 is not a WiFi speaker) |
| Total Harmonic Distortion (THD) | <0.3% (THD+ N 1%) |
| Power Input | 100-240 V AC (50/60 Hz) |
| Dimensions | 13.1 x 7.8 x 9.2 inches / 33.3 x 19.8 x 23.4 cm (HxWxD) |
| Weight | Active Speaker: 14.03 lb (6.36 kg) Passive Speaker: 13.14 lb (5.96 kg) |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | cTUVus+CB, ICES, FCC Certified |
| UPC | 061783272756 |
| What's Included |

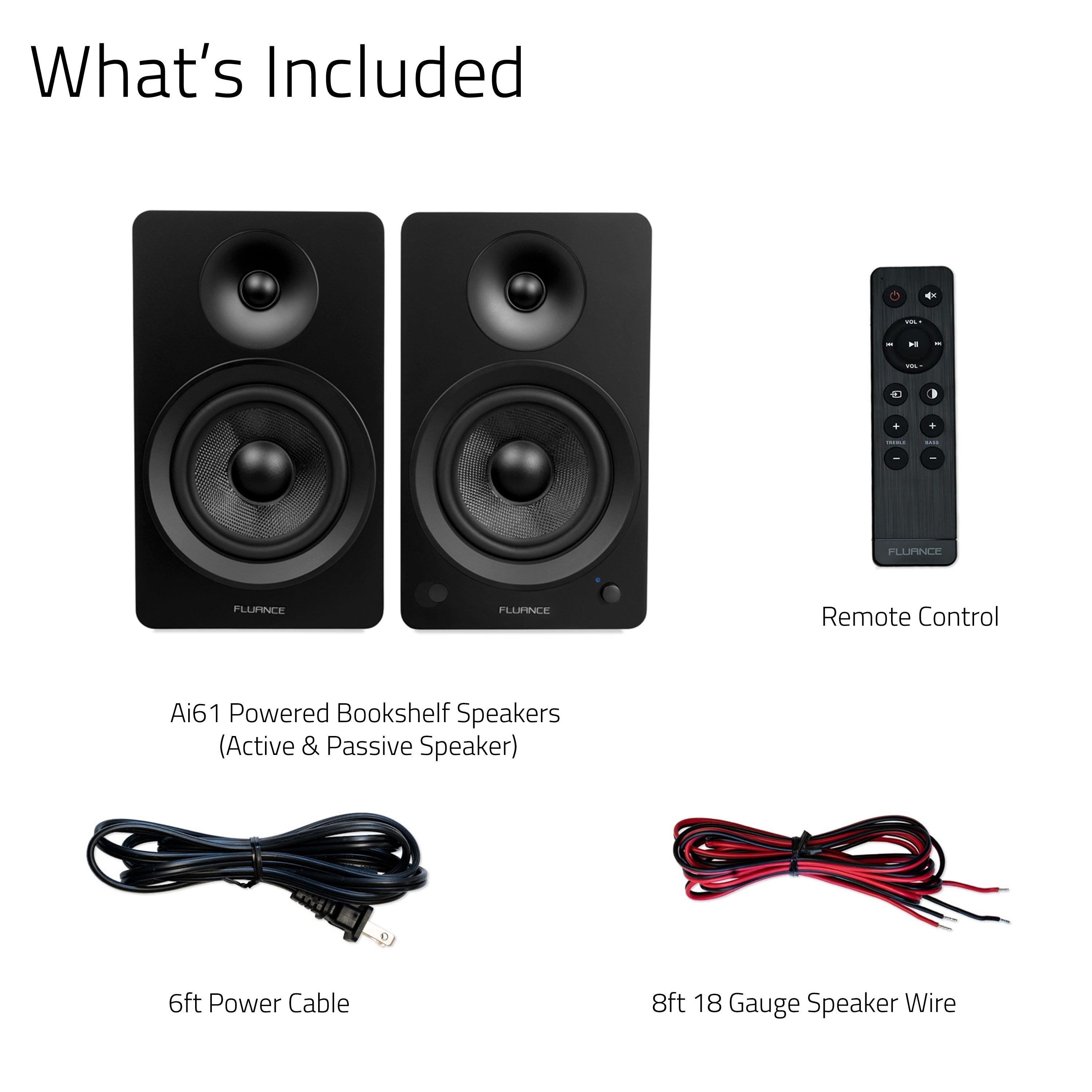

What's Included
Videos
Guides
Take a comprehensive look at the set up, function, and maintenance of your product. The product manual details all of its specifications and how to care for your product.
Frequently Asked Questions
The tonearm of the RT80 and RT81 model turntables is compatible with cartridges from 3.5 grams to 6.5 grams in weight. For a video walkthrough, click the link below.
How to Install and Align a Cartridge on a Fluance HiFi Turntable RT80 and RT81No! Everything you need to enjoy your favourite albums is included in this bundle.
The Ai41 speakers are powered and the RT80 Turntable includes an internal preamp so no additional equipment is required!
