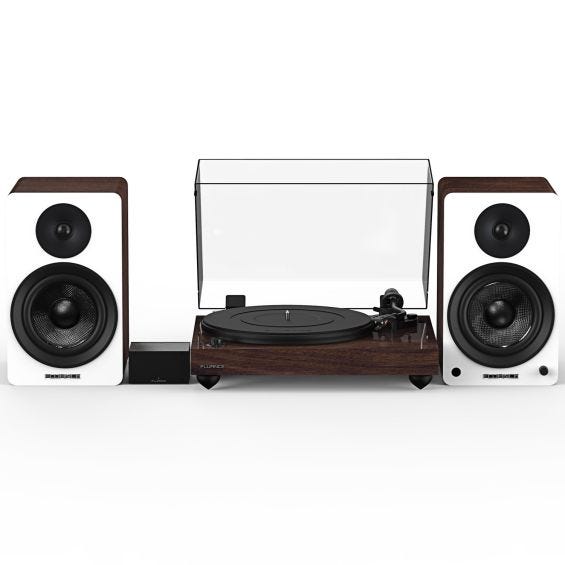

Reference RT82 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai61 Powered 6.5” Bookshelf Speakers

Reference RT82 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai61 Powered 6.5” Bookshelf Speakers

















EXCEPTIONAL SOUND PERFORMANCE
Savor the ultimate listening experience by pairing a fully loaded high fidelity turntable with endlessly versatile, room-filling 120-watt powered bookshelf speakers

PREMIUM TURNTABLE COMPONENTS
Packed with high performance components including an Ortofon OM10 Cartridge, servo motor, high mass MDF wood plinth, metal platter, 3-point vibration isolation feet, S-type precision tonearm to provide a pure analog sound

RAW POWER MEETS SUBLIME SOUND
With an integrated 120W amplifier, these active speakers deliver a true stereo sound with refined detail and powerful room-filling stereo sound that elevates your musical experience

UNCOMPROMISED PHONO AMPLIFICATION & EQUALIZATION
Precisely converts the turntable phono signal to line level, featuring an ultra high-accuracy frequency response to faithfully reproduce the original recording to the RIAA standard

SIMPLE AUDIO SETUP
Easily switch between your vinyl records and streaming your favorite music apps through Bluetooth with this simple plug and play setup – no separate amp required
Overview
Specifications
RT82 Reference High Fidelity Vinyl Turntable

Cabinet Specifications | ▼ |
---|---|
Cabinet Material | MDF |
Finish | High Gloss Walnut Real Wood Veneer |
Dust Cover | Yes - Tinted |
Turntable Specifications | ▼ |
Drive System | Belt Drive |
Motor | DC Motor with Servo Controller Analyzes motor speed 500 times/sec |
Motor Isolation | Under-mounted 7-point silicone isolation with decoupling isolation ring |
Speed | 33 1/3 RPM, 45 RPM (78 RPM - No) |
Speed Variation | 0.13% |
Wow and Flutter | 0.07% |
Signal-to-Noise Ratio (Weighted) | 76 dB |
Signal-to-Noise Ratio (Unweighted) | 65 dB |
Platter | Aluminum |
Diameter of Platter | 12 inches (30 cm) |
Weight of Platter | 1.22 lbs (553 g) |
Height of Platter | 0.62 inches (16 mm) |
Auto-Stop | Yes |
Turntable Mat | Rubber |
Tonearm Specifications | ▼ |
Tonearm Type | Static Balanced, S-Type |
Supported Cartridge Weight | 0.18 – 0.25 oz (5.0 – 7.5 g) |
Counterweight | Yes – 3.60 oz (102 g) - Adjustable |
Anti-skating Adjustment | Yes – Adjustable |
Pivot Bearing | Yes |
Cueing Lever | Yes |
Tonearm Material | Aluminum |
Tonearm Wire | 36 AWG Litz Cable / 7 Strand |
Effective Tonearm Mass | 0.77 oz (21.78 g) |
Overhang | 0.76 inches (19.2 mm) |
Effective Tonearm Length | 8.82 inches (224 mm) |
Headshell Mount | H-4 Bayonet Mount |
Cartridge Specifications | ▼ |
Cartridge Type | Moving Magnet (MM) |
Cartridge Model | Ortofon OM 10 |
Replacement Stylus | Stylus 10 |
Stylus | 0.3 x 0.7 mil |
Cantilever | Aluminum |
Mount | Half-inch |
Frequency Response | 20 - 20,000 Hz (+3/-1 dB) |
Frequency Range | 20 - 22,000 Hz |
Channel Separation | 22 dB at 1 kHz |
Channel Balance | < 1.5 dB @ 1 kHz |
Load Impedance/Capacitance | 47k Ohms/200 - 500 pF |
Output Voltage | 4.0 mV |
Cartridge Weight | 0.18 oz (5 g) |
Headshell Weight | 0.35 oz (9 g) |
Cartridge Height | 0.71 inches (18 mm) |
Recommended Tracking Force | 0.05 oz (1.5 g) |
Vertical Tracking Angle | 20° (Non-Adjustable) |
Rubber Belt Specifications | ▼ |
Rubber Belt Design | Continuous loop (joint-less) |
Width | 0.17 inches (4.5 mm) |
Length | 36.02 inches (915 mm) |
Thickness | 0.02 inches (0.6 mm) |
Output Specifications | ▼ |
Connector | RCA (Gold-plated) |
Preamp | No - Separate Phono Preamp Required |
Phono Output | 4.0 mV |
Ground Terminal | Yes |
Input | 100 – 240 V AC (50/60 Hz) |
Output | 12 V / 500 mA |
Consumption | 1.5 W |
General Specifications | ▼ |
Dimensions | 5.5 x 16.5 x 13.75 inches / 14.0 x 41.9 x 34.9 cm (HxWxD) |
Certifications | FCC Certified, RoHS, CUL/UL |
Unit Weight | 14.99 lb (6.8 kg) |
Operating Temperature | 41°F to 95°F (5°C to 35°C) |
Wireless Playback | No (Requires Bluetooth or WiFi transmitter connected via RCA connection to transmit audio wirelessly) |
Fluance Speaker Size Comparison Chart | |
UPC | 871363024916 |

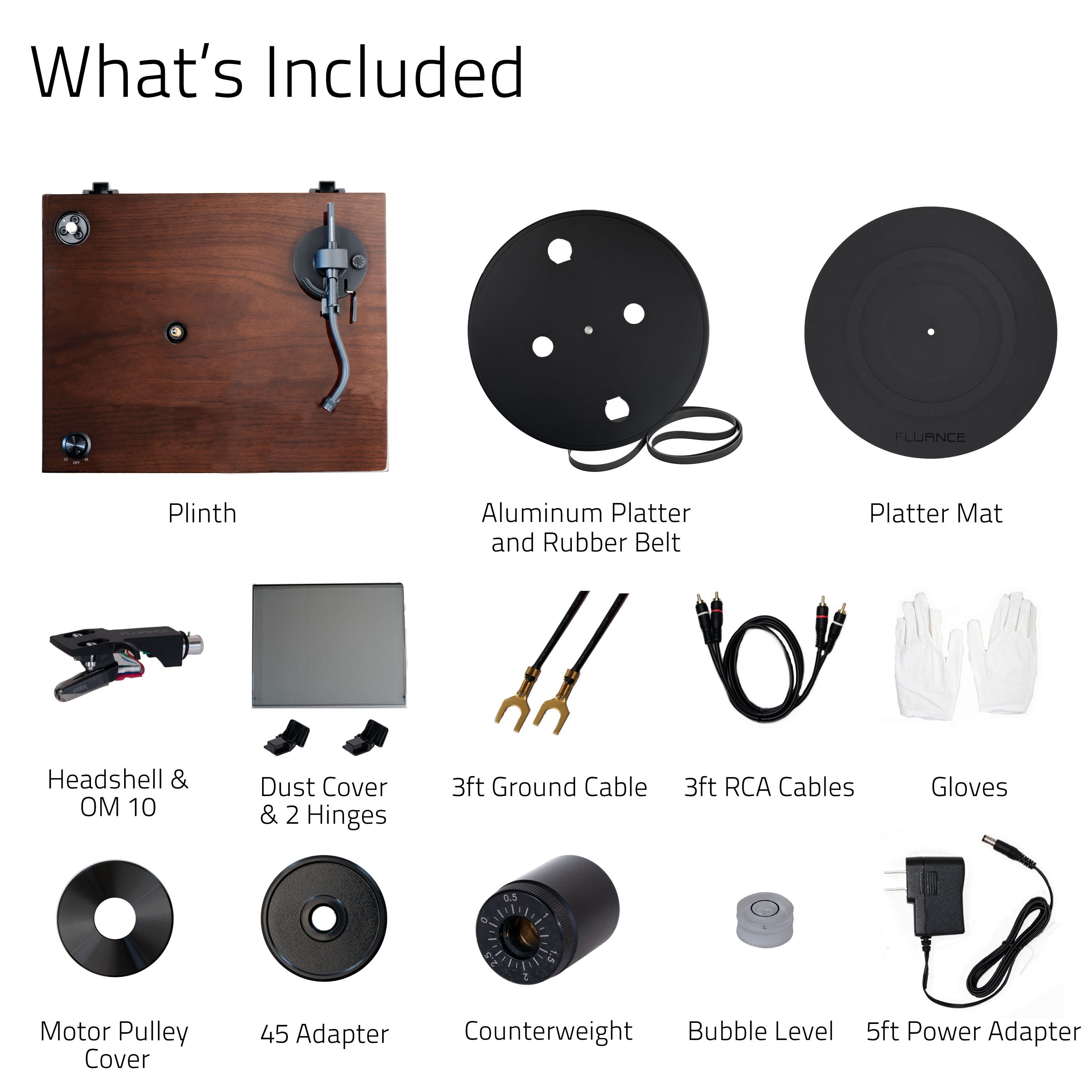

What's Included | RT82 Reference Turntable Line OutClick to Expand |
PA10 High Fidelity Phono Preamp

Audio Specifications | ▼ |
---|---|
Audio Circuit Type | Passively Equalized RIAA |
Compatible Stylus | MM |
Gain | 38 dB |
Phono Input Sensitivity | 30 mV |
Total Harmonic Distortion (THD) | 0.004% |
RIAA Equalization Accuracy (deviation) | 20 Hz - 20 kHz +/- 0.5 dB |
Signal/Noise (S/N) Ratio | > 90 dB |
Crosstalk | > -86 dB |
Input Impedance | 47 kohm |
Input Load Capacitance | 100 pF |
Output Impedance | 100 ohm |
Output Voltage | 2.2 V |
Maximum Input @ 1 kHz | 100 mV |
Maximum Phono Stage Output | 125 mV |
High Pass Filter Cutoff | 20 Hz |
Dynamic Range | > 85 dB |
Input/Output Specifications | ▼ |
Input | RCA L/R (Gold Plated) |
Output | RCA L/R (Gold Plated) |
Ground Terminal | Yes |
Cabinet Specifications | ▼ |
Cabinet Material | MDF |
Finish | PVC Wood - Black |
Power Specification | ▼ |
Power Input | 110 V - 240 V ~ 50/60 Hz 0.5 A |
Power Adapter Output | 24 V, 500 mA |
Power Consumption | 0.4 W |
General Specifications | ▼ |
Dimensions | 4(L) x 2.25(H) x 3.6(D) inches (101.5 x 57.1 x 91.5 mm) |
Weight | 11.5 oz (325 g) |
Operating Temperature | -5°C - 45°C |
NOISE FLOOR (UNWEIGHTED) | < 220 uV |
Compatible With | Fluance RT80, RT81, RT82, RT83, RT84, and RT85 turntables as well as any turntables that are equipped with a Moving Magnet cartridge |
What's Included | PA10 Preamplifier LineoutClick to Expand |
UPC | 061783269794 |
Premium Grade Low Capacitance RCA Audio Cable (3 Feet)

Length | 3' |
---|---|
Compatible With | RT80, RT81, RT82, RT83, RT84, RT85, PA10 |
UPC | 061783269053 |
What's Included |
Ai61 Powered 6.5" Stereo Bookshelf Speakers

Speaker Configuration | 2 Way – 2 Driver Powered Bookshelf Speaker System with Integrated Amplifier (Pair – 1x Active, 1x Passive) |
---|---|
Bluetooth | Yes, Bluetooth 5.0 |
Inputs | RCA L/R, Bluetooth, & Digital Optical TOSLINK, USB Type-C |
Tweeter | 1 inch Silk Soft Dome Neodymium Ferrofluid Cooled |
Woofer | 6.5 inch Woven, Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
Amplifier Power | Class D 120 Watts Continuous Average Output (2x 60 watts RMS) |
Frequency Response | 32Hz-20kHz (DSP Enhanced) |
Internal DAC | Yes |
Internal Lead Wire | 18 gauge Internal Lead Wire to Reduce Signal Degradation |
Power | Input: 100-240V AC (50/60Hz) |
Crossover Frequency | 2800Hz Phase Coherent 12dB/Oct – PCB Mounted Circuitry |
Enclosure | Tuned Rear Port Bass Reflex Design Dampened |
Dimensions | 13.1 x 7.8 x 9.2 inches / 33.3 x 19.8 x 23.4 cm (HxWxD) |
Speaker Weight | Active Speaker: 14.03 lbs (6.36 kg) Passive Speaker: 13.14 lbs (5.96 kg) |
Speaker Type | Bookshelf |
Phono Preamp | No |
Certifications | cTUVus+CB, ICES, FCC Certified |
Subwoofer Output | Yes, 80 Hz Low-pass Frequency Cutoff |
Total Harmonic Distortion (THD) | <0.3% (THD+ N 1%) |
WiFi Casting | Pairs via Bluetooth with Google Home, Amazon Echo, and AppleTV (Ai61 is not a WiFi speaker) |
Fluance Speaker Size Comparison Chart | |
UPC | 061783272817 |
What's Included | Ai61 SPEAKER LINE OUT
|
Customer Reviews
-
Everything came in working well. The turntable looks amazing, the speakers are really nice specially with a set of stands.
I only knocked off a star because the speakers came in missing its accessories and while customer support did help, it took them a long time to get back to me. So product is good for sure, but the customer support could use some help. -
Just arrived yesterday, set it up, and haven't turned it off! Absolutely love it! Speakers sound amazing, bluetooth paired no problem, and the turntable... beautiful, and the centerpiece of my living room. So glad I went with the RT82 with the 6.5" speakers!
-
The motor on my RT82 turntable started making noise 3 days into use. Had to send it in for warranty.
