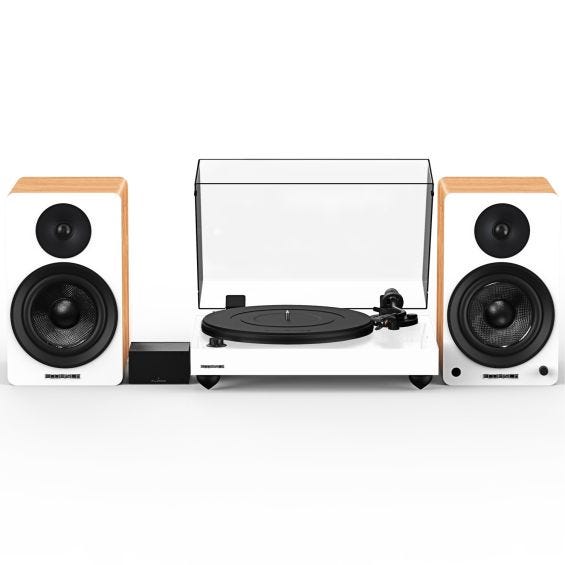

Reference RT82 High Fidelity Vinyl Turntable with PA10 Phono Preamp and Ai61 Powered 6.5” Bookshelf Speakers
Ortofon OM10 Cartridge - 120W Class D Amplifier and Bluetooth
$712.99
Color: White Bamboo
Model:
Learn More
Clicking this button will redirect you to the official website to make the purchase
EXCEPTIONAL SOUND PERFORMANCE
Savor the ultimate listening experience by pairing a fully loaded high fidelity turntable with endlessly versatile, room-filling 120-watt powered bookshelf speakers
PREMIUM TURNTABLE COMPONENTS
Packed with high performance components including an Ortofon OM10 Cartridge, servo motor, high mass MDF wood plinth, metal platter, 3-point vibration isolation feet, S-type precision tonearm to provide a pure analog sound
RAW POWER MEETS SUBLIME SOUND
With an integrated 120W amplifier, these active speakers deliver a true stereo sound with refined detail and powerful room-filling stereo sound that elevates your musical experience
UNCOMPROMISED PHONO AMPLIFICATION & EQUALIZATION
Precisely converts the turntable phono signal to line level, featuring an ultra high-accuracy frequency response to faithfully reproduce the original recording to the RIAA standard
SIMPLE AUDIO SETUP
Easily switch between your vinyl records and streaming your favorite music apps through Bluetooth with this simple plug and play setup – no separate amp required
Specifications
RT82 Reference High Fidelity Vinyl Turntable
| Cabinet Specifications | |
|---|---|
| Cabinet Material | MDF |
| Finish | High Gloss Piano White |
| Dust Cover | Yes - Tinted |
| Turntable Specifications | |
| Drive System | Belt Drive |
| Motor | DC Motor with Servo Controller Analyzes motor speed 500 times/sec |
| Motor Isolation | Under-mounted 7-point silicone isolation with decoupling isolation ring |
| Speed | 33 1/3 RPM, 45 RPM (78 RPM - No) |
| Speed Variation | 0.13% |
| Wow and Flutter | 0.07% |
| Signal-to-Noise Ratio (Weighted) | 76 dB |
| Signal-to-Noise Ratio (Unweighted) | 65 dB |
| Platter | Aluminum |
| Diameter of Platter | 12 inches (30 cm) |
| Weight of Platter | 1.22 lb (553 g) |
| Height of Platter | 0.62 inches (16 mm) |
| Auto-Stop | Yes |
| Fully Automatic | No |
| Turntable Mat | Rubber |
| Tonearm Type | Static Balanced, S-Type |
| Supported Cartridge Weight | 0.18 – 0.25 oz (5.0 – 7.5 g) |
| Counterweight | Yes – 3.60 oz (102 g) - Adjustable |
| Anti-skating Adjustment | Yes – Adjustable |
| Pivot Bearing | Yes |
| Cueing Lever | Yes |
| Tonearm Material | Aluminum |
| Tonearm Wire | 36 AWG Litz Cable / 7 Strand |
| Effective Tonearm Mass | 0.77 oz (21.78 g) |
| Overhang | 0.76 inches (19.2 mm) |
| Effective Tonearm Length | 8.82 inches (224 mm) |
| Headshell Mount | H-4 Bayonet Mount |
| Headshell Weight | 0.35 oz (9 g) |
| Cartridge Type | Moving Magnet (MM) |
| Cartridge Model | Ortofon OM 10 |
| Replacement Stylus | Ortofon Stylus 10 |
| Stylus | 0.3 x 0.7 mil |
| Cantilever | Aluminum |
| Mount | Half-inch |
| Frequency Response | 20 - 20,000 Hz (+3/-1 dB) |
| Frequency Range | 20 - 22,000 Hz |
| Channel Separation | 22 dB at 1 kHz |
| Channel Balance | < 1.5 dB @ 1 kHz |
| Load Impedance/Capacitance | 47k Ohms/200 - 500 pF |
| Output Voltage | 4.0 mV |
| Cartridge Weight | 0.18 oz (5 g) |
| Cartridge Height | 0.71 inches (18 mm) |
| Vertical Tracking Angle | 20° (Non-Adjustable) |
| Rubber Belt Specifications | |
| Rubber Belt Design | Continuous loop (joint-less) |
| Width | 0.17 inches (4.5 mm) |
| Length | 36.02 inches (915 mm) |
| Thickness | 0.02 inches (0.6 mm) |
| Connector | RCA (Gold-plated) |
| Phono Preamp | No - Separate Phono Preamp Required |
| Phono Output | 4.0 mV |
| Phono Bypass | N/A |
| Line Output | N/A |
| Ground Terminal | Yes |
| Input | 100–240 V AC (50/60 Hz) |
| Output | 12 V / 500 mA |
| Consumption | 1.5 W |
| Dimensions | 6 (+/-0.5) x 16.5 x 14.25 inches / 14.6 (+/-1.25) x 41.9 x 36.2 cm (HxWxD) |
| Unit Weight | 14.99 lb (6.8 kg) |
| Operating Temperature | 41° to 95°F (5° to 35°C) |
| Wireless Playback | No (Requires Bluetooth or WiFi transmitter connected via RCA connection to transmit audio wirelessly) |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | FCC Certified, RoHS, CUL/UL |
| UPC | 061783273449 |
| What's Included | |
Ai61 Powered 6.5" Stereo Bookshelf Speakers
| Speaker Type | Bookshelf |
|---|---|
| Speaker Configuration | 2 Way – 2 Driver Powered Bookshelf Speaker System with Integrated Amplifier (Pair – 1x Active, 1x Passive) |
| Enclosure | Tuned Rear Port Bass Reflex Design Dampened |
| Tweeter | 1 inch Silk Soft Dome Neodymium Ferrofluid Cooled |
| Woofer | 6.5 inch Woven, Glass Fiber Composite Drivers with Butyl Rubber Surrounds |
| Amplifier Power | Class D 120 Watts Continuous Average Output (2x 60 watts RMS) |
| Frequency Response | 32 Hz - 20 kHz (DSP Enhanced) |
| Crossover Frequency | 2800 Hz Phase Coherent 12 dB/Oct – PCB Mounted Circuitry |
| Bluetooth | Yes, Bluetooth 5.0 |
| Audio Inputs | RCA L/R, Bluetooth, Digital Optical TOSLINK, USB Type-C |
| Internal Lead Wire | 18 Gauge Internal Lead Wire to Reduce Signal Degradation |
| Subwoofer Output | Yes, 80 Hz Low-pass Frequency Cutoff |
| Phono Preamp | No |
| Internal DAC | Yes |
| WiFi Casting | Pairs via Bluetooth with Google Home, Amazon Echo, and AppleTV (Ai61 is not a WiFi speaker) |
| Total Harmonic Distortion (THD) | <0.3% (THD+ N 1%) |
| Power Input | 100-240 V AC (50/60 Hz) |
| Dimensions | 13.1 x 7.8 x 9.2 inches / 33.3 x 19.8 x 23.4 cm (HxWxD) |
| Weight | Active Speaker: 14.03 lb (6.36 kg) Passive Speaker: 13.14 lb (5.96 kg) |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | cTUVus+CB, ICES, FCC Certified |
| UPC | 061783272800 |
| What's Included |
PA10 High Fidelity Phono Preamp
| Audio Specifications | |
|---|---|
| Audio Circuit Type | Passively Equalized RIAA |
| Compatible Stylus | MM |
| Gain | 38 dB |
| Phono Input Sensitivity | 30 mV |
| Total Harmonic Distortion (THD) | 0.00% |
| RIAA Equalization Accuracy (deviation) | 20 Hz - 20 kHz +/- 0.5 dB |
| Signal/Noise (S/N) Ratio | > 90 dB |
| Crosstalk | > -86 dB |
| Input Impedance | 47 kOhm |
| Input Load Capacitance | 100 pF |
| Output Impedance | 100 Ohm |
| Output Voltage | 2.2 V |
| Maximum Input @ 1 kHz | 100 mV |
| Maximum Phono Stage Output | 125 mV |
| High Pass Filter Cutoff | 20 Hz |
| Dynamic Range | > 85 dB |
| Input/Output Specifications | |
| Input | RCA L/R (Gold Plated) |
| Output | RCA L/R (Gold Plated) |
| Ground Terminal | Yes |
| Cabinet Specifications | |
| Cabinet Material | MDF |
| Finish | PVC Wood |
| Color | Black |
| Power Specification | |
| Power Input | 110-240 V (50/60 Hz) 0.5 A |
| Power Adapter Output | 24 V, 500 mA |
| Power Consumption | 0.4 W |
| General Specifications | |
| Dimensions | 4 x 2.25 x 3.6 inches / 101.5 x 57.1 x 91.5 mm (LxHxD) |
| Weight | 11.5 oz (325 g) |
| Operating Temperature | -5° - 45°C |
| Noise Floor (Unweighted) | < 220 uV |
| Compatible With | Fluance RT80, RT81, RT81P, RT82, RT83, RT84, RT85 and RT85N turntables as well as any turntables that are equipped with a Moving Magnet cartridge |
| UPC | 061783269794 |
| What's Included | |
Premium Grade Low Capacitance RCA Audio Cable (3 Feet)
| Compatible With | RT80, RT81, RT82, RT83, RT84, RT85, PA10 |
|---|---|
| Length | 3' |
| UPC | 61783269053 |
| What's Included |
What's Included
