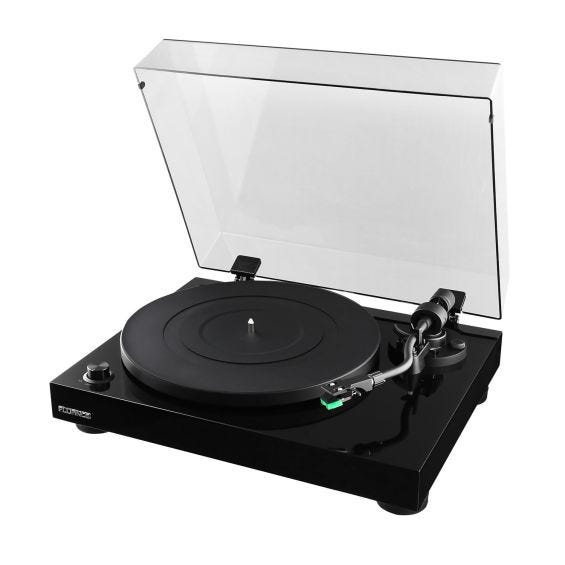

RT81 Elite High Fidelity Vinyl Turntable
Record Player with Audio Technica AT95E Cartridge, Belt Drive, Built-in Preamp, High Mass MDF Wood Plinth
Color: Piano Black
Model:
PURE ANALOG LISTENING EXPERIENCE
Premium components allow this high fidelity belt driven turntable to recreate the performance the way the artist intended
HIGH PERFORMANCE CARTRIDGE
The Audio Technica AT95E featuring a diamond elliptical tipped stylus is designed to track your record grooves with greater precision & accuracy for high definition audio
SUPERIOR RECORD TRACKING
Enjoy perfect playback using the balanced aluminum S-Type tonearm ensuring the stylus is rested deep in your record’s groove, producing every audio detail indistinguishable from the original recording
HIGH MASS MDF WOOD PLINTH
The beautiful piano black finished cabinet is crafted from solid engineered (MDF) wood, incorporates isolation feet, an aluminum platter and a rubber platter mat which results in superior isolation from unwanted vibrations
CAPTIVATING SIGNAL CLARITY
Incorporating a high quality built-in Texas Instruments preamp, ground terminal and gold plated RCA line outputs that ensures warm, true sound
.jpg)
.JPG)
.jpg)
.jpg)
Specifications
| Cabinet Specifications | |
|---|---|
| Cabinet Material | MDF |
| Finish | High Gloss Piano Black |
| Dust Cover | Yes - Tinted |
| Turntable Specifications | |
| Drive System | Belt Drive |
| Motor | DC Motor |
| Motor Isolation | Three Point Rubber Isolation |
| Speed | 33 1/3 RPM, 45 RPM (78 RPM - No) |
| Speed Variation | +/- 1.00% |
| Wow and Flutter | 0.2% |
| Signal-to-Noise Ratio (Weighted) | 67 dB or higher (A-weighted, 20 kHz LPF) |
| Signal-to-Noise Ratio (Unweighted) | 60 dB or higher (unweighted, 20 kHz LPF) |
| Platter | Aluminum |
| Diameter of Platter | 12 inch, 30 cm |
| Weight of Platter | 1.22 lb (553 g) |
| Height of Platter | 0.62 inches (16 mm) |
| Auto-Stop | Yes |
| Fully Automatic | No |
| Turntable Mat | Rubber |
| Tonearm Specifications | |
| Tonearm Type | Static Balanced, S-Type |
| Supported Cartridge Weight | 0.12 to 0.23 oz (3.5 to 6.5 g) |
| Counterweight | Yes – 3.53 oz (100 g) - Adjustable |
| Anti-skating Adjustment | Yes |
| Pivot Bearing | Yes |
| Cueing Lever | Yes |
| Tonearm Material | Aluminum |
| Tonearm Wire | 36 AWG Litz Cable / 7 Strand |
| Effective Tonearm Mass | 0.99 oz (28.2 g) |
| Overhang | 0.76 inches (19.2 mm) |
| Effective Tonearm Length | 8.82 inches (224 mm) |
| Headshell Mount | H-4 Bayonet Mount |
| Headshell Weight | 0.38 oz (10.7 g) |
| Tonearm Height | 0.67 inches (17 mm) |
| Cartridge Specifications | |
| Cartridge Type | Dual Moving Magnet (MM) |
| Cartridge Model | Audio Technica: AT95E |
| Replacement Stylus | ATN95E |
| Stylus | 0.4 × 0.7 mil Bonded Elliptical (Diamond) |
| Cantilever | Aluminum |
| Mount | Half inch |
| Frequency Response | 20 - 20,000 Hz |
| Channel Separation | 20 dB at 1 kHz |
| Channel Balance | 2.0 dB or less at 1 kHz |
| Load Impedance/Capacitance | 47k Ohms/100 pF |
| Output Voltage | 3.5 mV (+/–3 dB) |
| Cartridge Weight | 5.7 g (+/- 0.5 g) |
| Cartridge Height | 0.67 inches (17 mm) |
| Vertical Tracking Angle | 20 degrees (Non-Adjustable) |
| Rubber Belt Specifications | |
| Rubber Belt Design | Continuous loop (joint-less) |
| Width | 0.17 inches (4.5 mm) |
| Length | 21.03 inches (534.07 mm) |
| Thickness | 0.02 inches (0.6 mm) |
| Output Specifications | |
| Connector | RCA (Gold-plated) |
| Phono Preamp | Yes, PHONO/LINE Switchable |
| Phono Output | 3.5 mV (+/– 3 dB) |
| Phono Bypass | Yes, all electronics bypassed when using external preamp |
| Line Output | 140 mV (–17 dBV) |
| Ground Terminal | Yes |
| Power Specification | |
| Input | 100-240V AC (50/60 Hz) |
| Output | 12 V / 500 mA |
| Consumption | 1.5 W |
| General Specifications | |
| Dimensions | 5.75 x 16.5 x 14.25 inches / 14.6 x 41.9 x 36.2 cm (HxWxD) |
| Unit Weight | 14.1 lb (6.4 kg) |
| Operating Temperature | 20°C |
| Wireless Playback | No (Requires Bluetooth or WiFi transmitter connected via RCA connection to transmit audio wirelessly) |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | FCC Certified, RoHS, CUL/UL |
| UPC | 871363017123 |
| What's Included | |
What's Included
Press
Guides
Take a comprehensive look at the set up, function, and maintenance of your product. The product manual details all of its specifications and how to care for your product.
Frequently Asked Questions
Fluance turntables do not include built-in speakers.
To use a Fluance turntable, connect it to a home theater receiver or amplifier for use with passive speakers, or connect it to powered speakers such as the Ai41 Powered Bookshelf Speakers.
If your receiver or speakers do not have a specific PHONO input or integrated preamp, the RT80, RT81, and RT81+ models include an internal preamp for quick and easy setup.
An amplifier is only needed if you’re connecting the turntable to passive speakers, such as the Signature Series Bookshelf Surround Speakers.
If you prefer an option without a separate amplifier, our Powered Speakers are a great choice.
With the Ai41, simply connect the included RCA cables to the speakers, turn on the internal preamp, and you’re ready to enjoy your music.
If you’re using an amplifier without a phono input, or powered speakers like our Ai41 model, you’ll need to use the preamp by sliding the switch to the “LINE” position.
The tonearm of the RT80 and RT81 model turntables is compatible with cartridges ranging from 3.5 grams to 6.5 grams in weight. This includes cartridges like the AT95 and AT-VM95.
For full instructions on this process, see our video below:
For easy setup, we recommend using this turntable with powered speakers such as the Ai41 and Ai61. As long as the speakers have RCA inputs and do not require an amplifier, it should be plug and play!
