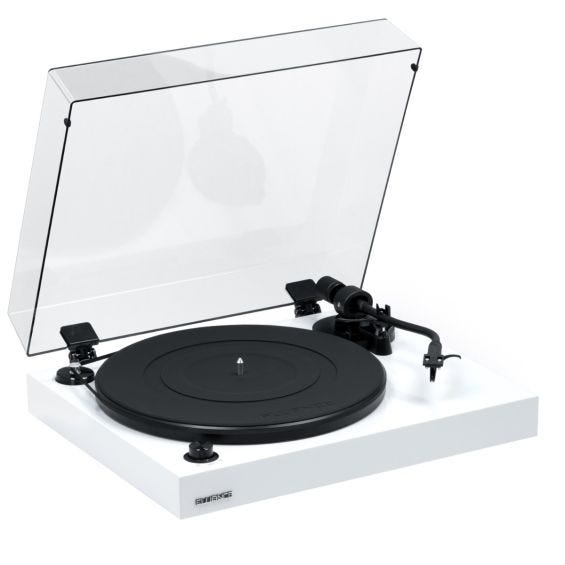

RT82 Reference High Fidelity Vinyl Turntable
Record Player with Ortofon OM 10 Cartridge, Speed Control Motor, High Mass MDF Wood Plinth, Vibration Isolation Feet
Color: Piano White
Model:
PURE ANALOG PERFORMANCE
The definitive vinyl record listening experience for beautifully warm and natural music, transporting you into the center of the performance
EXCEPTIONAL MUSICAL ACCURACY
Immerse yourself in dynamic music reproduction with the Ortofon OM 10 elliptical cartridge delivering improved linearity, higher channel separation and reduced distortion
SPEED CONTROL FOR PRECISION PLAYBACK
The isolated motor prevents unwanted vibrations and noise while the speed control mechanism ensures consistent platter velocity (0.07% Wow/Flutter)
HIGH MASS MDF WOOD PLINTH
Revel in the gorgeously crafted cabinet with real wood finish and a highly precise metal platter with adjustable resonance damping feet, ensuring superior isolation from unwanted micro-vibrations
SPECTACULAR SIGNAL CLARITY
Caress your records with the balanced S-shaped tonearm for accurate tracking of the record groove and no electronics in the signal path for a cleaner, exceptionally detailed sound (Note: phono preamp not included)
Specifications
| Cabinet Specifications | |
|---|---|
| Cabinet Material | MDF |
| Finish | High Gloss Piano White |
| Dust Cover | Yes - Tinted |
| Turntable Specifications | |
| Drive System | Belt Drive |
| Motor | DC Motor with Servo Controller Analyzes motor speed 500 times/sec |
| Motor Isolation | Under-mounted 7-point silicone isolation with decoupling isolation ring |
| Speed | 33 1/3 RPM, 45 RPM (78 RPM - No) |
| Speed Variation | 0.13% |
| Wow and Flutter | 0.07% |
| Signal-to-Noise Ratio (Weighted) | 76 dB |
| Signal-to-Noise Ratio (Unweighted) | 65 dB |
| Platter | Aluminum |
| Diameter of Platter | 12 inches (30 cm) |
| Weight of Platter | 1.22 lb (553 g) |
| Height of Platter | 0.62 inches (16 mm) |
| Auto-Stop | Yes |
| Fully Automatic | No |
| Turntable Mat | Rubber |
| Tonearm Type | Static Balanced, S-Type |
| Supported Cartridge Weight | 0.18 – 0.25 oz (5.0 – 7.5 g) |
| Counterweight | Yes – 3.60 oz (102 g) - Adjustable |
| Anti-skating Adjustment | Yes – Adjustable |
| Pivot Bearing | Yes |
| Cueing Lever | Yes |
| Tonearm Material | Aluminum |
| Tonearm Wire | 36 AWG Litz Cable / 7 Strand |
| Effective Tonearm Mass | 0.77 oz (21.78 g) |
| Overhang | 0.76 inches (19.2 mm) |
| Effective Tonearm Length | 8.82 inches (224 mm) |
| Headshell Mount | H-4 Bayonet Mount |
| Headshell Weight | 0.35 oz (9 g) |
| Cartridge Type | Moving Magnet (MM) |
| Cartridge Model | Ortofon OM 10 |
| Replacement Stylus | Ortofon Stylus 10 |
| Stylus | 0.3 x 0.7 mil |
| Cantilever | Aluminum |
| Mount | Half-inch |
| Frequency Response | 20 - 20,000 Hz (+3/-1 dB) |
| Frequency Range | 20 - 22,000 Hz |
| Channel Separation | 22 dB at 1 kHz |
| Channel Balance | < 1.5 dB @ 1 kHz |
| Load Impedance/Capacitance | 47k Ohms/200 - 500 pF |
| Output Voltage | 4.0 mV |
| Cartridge Weight | 0.18 oz (5 g) |
| Cartridge Height | 0.71 inches (18 mm) |
| Vertical Tracking Angle | 20° (Non-Adjustable) |
| Rubber Belt Specifications | |
| Rubber Belt Design | Continuous loop (joint-less) |
| Width | 0.17 inches (4.5 mm) |
| Length | 36.02 inches (915 mm) |
| Thickness | 0.02 inches (0.6 mm) |
| Connector | RCA (Gold-plated) |
| Phono Preamp | No - Separate Phono Preamp Required |
| Phono Output | 4.0 mV |
| Phono Bypass | N/A |
| Line Output | N/A |
| Ground Terminal | Yes |
| Input | 100–240 V AC (50/60 Hz) |
| Output | 12 V / 500 mA |
| Consumption | 1.5 W |
| Dimensions | 6 (+/-0.5) x 16.5 x 14.25 inches / 14.6 (+/-1.25) x 41.9 x 36.2 cm (HxWxD) |
| Unit Weight | 14.99 lb (6.8 kg) |
| Operating Temperature | 41° to 95°F (5° to 35°C) |
| Wireless Playback | No (Requires Bluetooth or WiFi transmitter connected via RCA connection to transmit audio wirelessly) |
| Fluance Speaker Size Comparison Chart |
|
| Certifications | FCC Certified, RoHS, CUL/UL |
| UPC | 061783273449 |
| What's Included | |
What's Included
Press
Videos
Guides
Take a comprehensive look at the set up, function, and maintenance of your product. The product manual details all of its specifications and how to care for your product.
Frequently Asked Questions
If you intend to use your Reference series turntable with powered bookshelf speakers, such as our Ai41 model, a preamp will be required. The preamp will boost the signal to line level (similar to a headphone jack) so you can play it on speakers with RCA or AUX inputs.
If you have a home theater or stereo receiver/amplifier, you will need a preamp if the amplifier does not have a PHONO input. If you have a PHONO input, you may have a preamp already built in. Be sure to refer to the manufacturer’s specifications or manual for confirmation!
This design choice was made with a number of factors in mind. The main reason was to separate electronics from the turntable’s signal path to maintain the purity of the analog signal. Many listeners also like to customize their listening experience and choose specific components such as preamps based on unique sonic qualities.
Using separate components also allows for optimization of cartridge and phono stage compatibility. If you upgrade your cartridge in the future, you can pair it with an optimal phono preamp to maximize performance and achieve the sound profile you desire.
We want our users to experience music the way it was meant to be heard and have pulled out all the stops for the new Reference series. These new turntables include a servo belt drive motor.
What does this mean for you?
It means that you have a sensor checking and adjusting the speed of the motor up to 500 times a second to make sure the speed of your turntable is consistent with no manual adjustments, bringing wow and flutter under 0.07%!
| What's new! | What does it mean? |
|---|---|
| The motor is located away from the platter | Allows the use of an acrylic platter, reduced rumble at the stylus. |
| 90pF RCA cables | Upgraded RCA cables with higher capacitance to protect and maintain the purest signal path. |
| No internal preamp | Provides a clean signal, with no electronics in the path for increased audio quality. |
| Spring loaded adjustable feet with built-in isolation |
Allows the turntable to be leveled on any surface, bubble level included. Spike-shaped feet prevent outside vibrations from affecting audio quality. |
| Servo controlled motor | Improves speed consistency and reduces wow and flutter by checking the speed up to 500 times per second! |
| Ortofon Stylus | All Reference turntables are compatible with Ortofon OM10, Blue, and Red Cartridges. |
| 102g adjustable counterweight |
Heavier counterweight to accommodate the Ortofon stylus. More diverse upgrade options. |
| Compatible with an acrylic platter | Heavier, denser material reduces resonance and improves speed consistency. |
| Customizable | All Reference turntable components are compatible with each other giving you a clear upgrade path! Only RT85N is compatible with Nagaoka MP110 due to differences in the vertical tracking angle. |
Reference turntables are compatible and shipped with moving magnet cartridges such as the Ortofon OM10, 2M Red, and 2M Blue, giving you the ability to customize your system for top-tier performance. Cartridges must be between 3.5 to 7.5 grams to be set correctly. Due to a different vertical tracking angle, the Nagaoka MP110 is compatible with the RT85N only.
An amplifier is only needed if you’re connecting the turntable to passive speakers such as the Signature Series Bookshelf Surround Speakers.
If you’re looking for an option without a separate amplifier, the Ai41 Powered Bookshelf speakers are an excellent choicel. With the Ai41, all you need to do is connect the included RCA cables to your preamp, then to the speakers, and you’re ready to listen to the music the way it was meant to be heard.
All Fluance Reference turntables are sold with an Ortofon cartridge included.
We do know that our users love to customize their turntables, and there are many options out there, so we designed our Reference series to have extensive upgrade potential!
